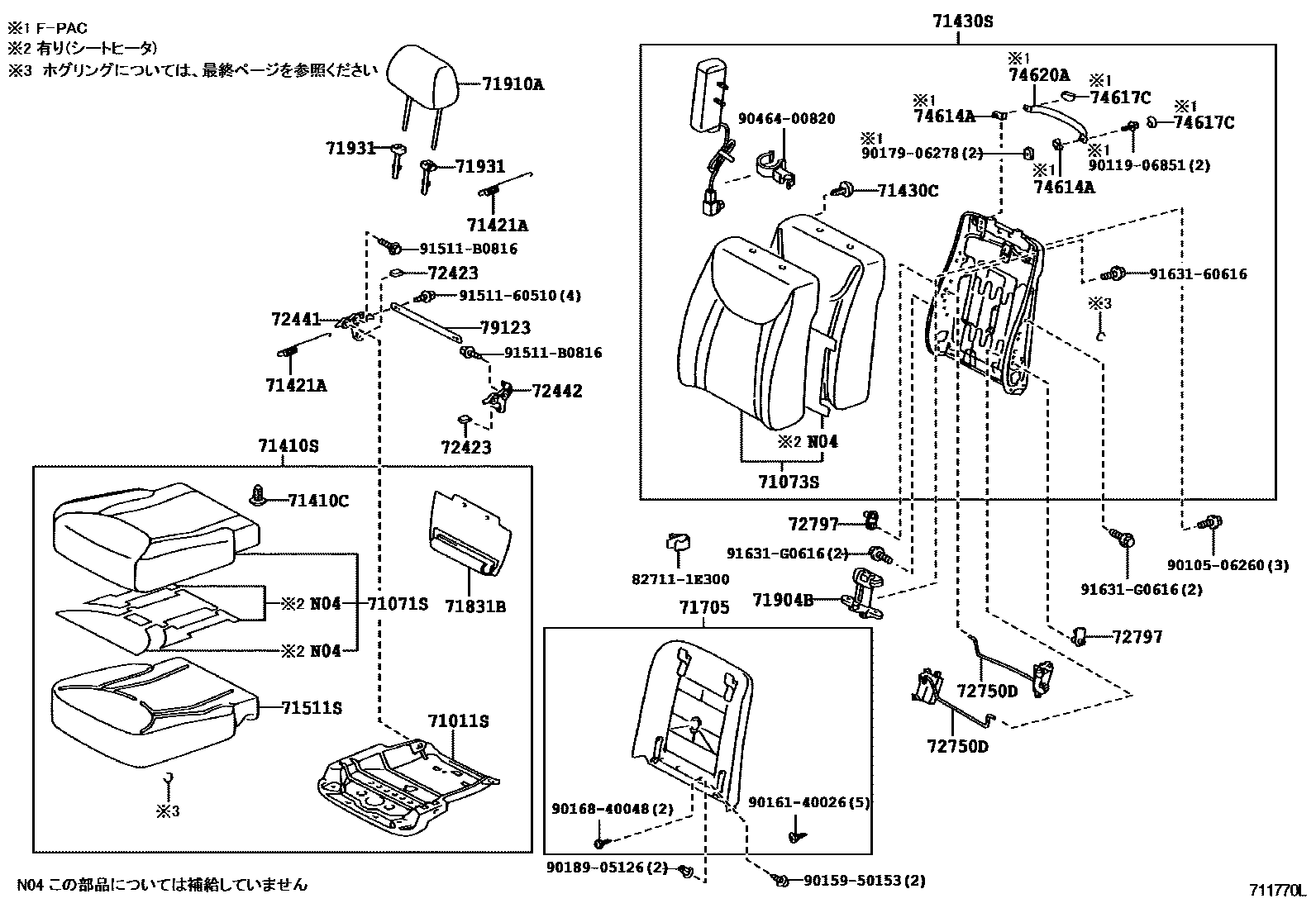

FRONT SEAT & SEAT TRACK
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71410CCLIP(FOR FRONT SEAT CUSHION)
BLACK,TRIM03,04,1#,2#&062 ,066 ,1C0 ,202 ,3P2 ,3P4 ,6S5 ,6S6 ,8P8
BLACK,TRIM03,04,1#,2#&062 ,066 ,1C0 ,202 ,3P2 ,6S5 ,6S6 ,8P8
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71421ASPRING, FRONT SEAT CUSHION
71430CCLIP
BLACK,TRIM03,04,1#,2#&062 ,066 ,1C0 ,202 ,3P2 ,6S5 ,6S6 ,8P8
BLACK,TRIM03,04,1#,2#&062 ,066 ,1C0 ,202 ,3P2 ,3P4 ,6S5 ,6S6 ,8P8
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
71831BCOVER, FRONT SEAT HINGE, RH
ECRU,TRIM03
IVORY,TRIM04
CHARCOAL,TRIM11
CHARCOAL,TRIM1#
BLACK,TRIM20
BLACK,TRIM2#
NEW IVORY,TRIM07
ECRU,TRIM00
NEW GRAY,TRIM1#
BLACK,TRIM21,24
BLACK,TRIM2#
71904BADJUSTER SUB-ASSY, FRONT SEAT HEADREST
71910AHEADREST ASSY, FRONT SEAT
71931SUPPORT, FRONT SEAT HEADREST
72423HOOK, VERTICAL ADJUSTER SPRING
72441LINK, VERTICAL TRAVEL
72442LINK, FRONT SEAT TRAVEL, NO.2
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
72797SPACER, LUMBAR SUPPORT
74614APLATE, ASSIST GRIP LOCK
74617CPLUG, ASSIST GRIP
74620AGRIP ASSY, ASSIST, REAR
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM21,24
BLACK,TRIM2#
79123PLATE, NO.1 SEAT CUSHION
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9010506260
9011906851
9015950153
9016140026
9016840048
9017906278
9018905126
9046400820
9151160510
91511B0816
9163160616
91631G0616
36 parts on this diagram · 12 diagrams in section
