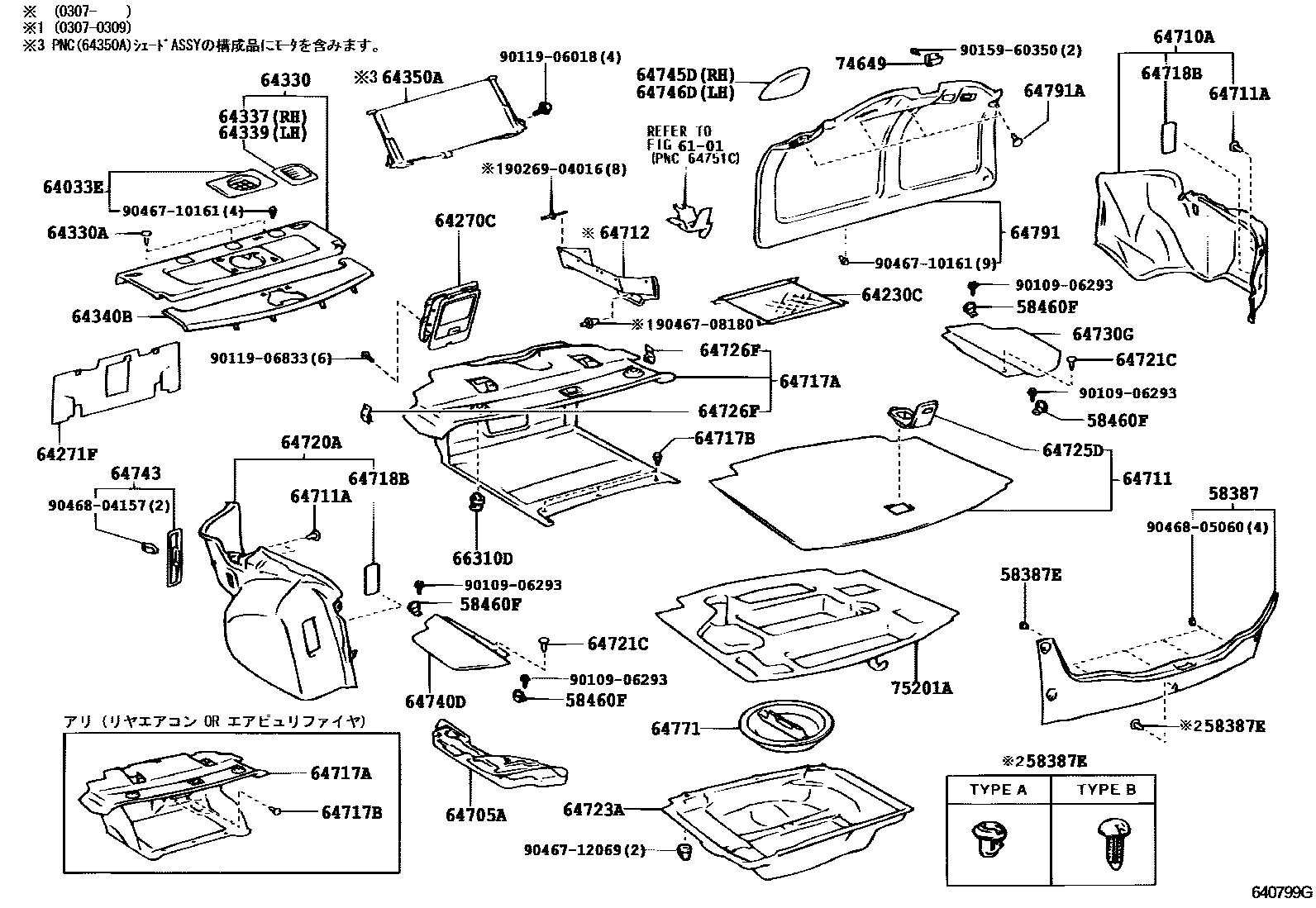

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-50010-C0iUCF31200307-200608

BLACK,TRIM00,07,1#,2#

main58387-50010-C0iUCF31200307-200608

BLACK,TRIM00,07,1#,21,24

main58387-50010-C0iUCF3#200008-200307

BLACK,TRIM03,04,1#,2#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0iUCF3#200008-200307

sub90467-08186

main90467-08186-C0iUCF3#200307-200608

sub90467-08186

main90467-12069iUCF3#200307-200608

main90467-12069iUCF3#200008-200307

58460FSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33010iUCF3#200008-200608

6101

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-50090-B0iUCF3#200008-200307

DARK CHARCOAL,TRIM1#

sub64033-50090

main64033-50090-B1iUCF3#200307-200608

MD.GRAY,TRIM1#

sub64033-50090

main64033-50090-C0iUCF30200307-200608

BLACK,TRIM21,24

sub64033-50090

main64033-50090-C0iUCF3#200008-200608

BLACK,TRIM2#

sub64033-50090

main64033-50090-E0iUCF3#200307-200608

SANDALWOOD,TRIM07

sub64033-50090

main64033-50090-E0iUCF3#200008-200307

SANDALWOOD,TRIM04

sub64033-50090

main64033-50090-E1iUCF3#200307-200608

CLOVEBROWN,TRIM00

sub64033-50090

main64033-50090-E1iUCF3#200008-200307

CLOVEBROWN,TRIM03

sub64033-50090

64230CNET ASSY, ROOM PARTITION

main64230-50010iUCF3#200008-200608

64270CBOARD ASSY, ROOM PARTITION

main64270-50010iUCF3#200008-200410

sub64270-50011

main64270-50011iUCF3#200411

64271FTRIM, ROOM PARTITION

main64271-50060iUCF3#200008-200208

sub64271-50070

main64271-50070iUCF3#200208-200307

main64271-50080iUCF3#200307-200401

sub64271-50081

main64271-50081iUCF3#200401

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-50170-B0iUCF30..A200008-200307

DARK CHARCOAL,TRIM1#

main64330-50170-C0iUCF3#200008-200307

BLACK,TRIM2#

main64330-50170-E0iUCF3#200008-200307

CLOVEBROWN,TRIM03

main64330-50170-E1iUCF3#200008-200307

SANDALWOOD,TRIM04

main64330-50200-B0iUCF3#200008-200307

main64330-50200-C0iUCF30..A200008-200307

main64330-50200-E0iUCF3#200008-200307

main64330-50200-E1iUCF3#200008-200307

main64330-50210-B0iUCF3#..B,C200008-200307

main64330-50210-C0iUCF3#..B,C200008-200307

main64330-50210-E0iUCF3#..B,C200008-200307

main64330-50210-E1iUCF3#..B,C200008-200307

main64330-50220-B0iUCF3#..B,C200008-200307

main64330-50220-C0iUCF3#..B,C200008-200307

main64330-50220-E0iUCF3#..B,C200008-200307

main64330-50220-E1iUCF3#..B,C200008-200307

main64330-50230-B0iUCF31200008-200307

main64330-50230-C0iUCF31200008-200307

main64330-50230-E0iUCF31200008-200307

main64330-50230-E1iUCF31200008-200307

main64330-50240-B1iUCF30..A200307-200608

MD.GRAY,TRIM1#

main64330-50240-C0iUCF30..A200307-200608

BLACK,TRIM2#

main64330-50240-E0iUCF30..A200307-200608

CLOVEBROWN,TRIM00

main64330-50240-E1iUCF30..A200307-200608

SANDALWOOD,TRIM07

main64330-50250-B1iUCF30..A200307-200608

sub64330-50250

main64330-50250-C0iUCF30..A200307-200608

sub64330-50250

main64330-50250-E0iUCF30..A200307-200608

sub64330-50250

main64330-50250-E1iUCF30..A200307-200608

sub64330-50250

main64330-50260-B1iUCF3#..B,C200307-200608

sub64330-50260

main64330-50260-C0iUCF31200307-200608

sub64330-50260

main64330-50260-C0iUCF31200307-200608

sub64330-50260

main64330-50260-E0iUCF3#..B,C200307-200608

sub64330-50260

main64330-50260-E1iUCF3#..B,C200307-200608

sub64330-50260

main64330-50270-B1iUCF3#..B,C200307-200608

main64330-50270-C0iUCF31200307-200608

main64330-50270-C0iUCF31200307-200608

main64330-50270-E0iUCF3#..B,C200307-200608

main64330-50270-E1iUCF3#..B,C200307-200608

main64330-50280-B1iUCF31200307-200608

main64330-50280-C0iUCF31200307-200608

main64330-50280-E0iUCF31200307-200608

main64330-50280-E1iUCF31200307-200608

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06049-22iUCF30200307-200608

BLACK,TRIM00,07,1#,21,24

sub90467-06049

main90467-06049-22iUCF31200307-200608

BLACK,TRIM00,07,1#,2#

sub90467-06049

main90467-06049-22iUCF3#200008-200307

BLACK,TRIM03,04,1#,2#

sub90467-06049

64337GARNISH, PACKAGE TRAY TRIM, RH

main64337-50030-B0iUCF3#200008-200307

DK.CHARCOAL,TRIM1#

sub64337-50030

main64337-50030-B1iUCF31200307-200608

MD.GRAY,TRIM1#

sub64337-50030

main64337-50030-C0iUCF31200307-200608

BLACK,TRIM21,24

sub64337-50030

main64337-50030-C0iUCF3#200008-200307

BLACK,TRIM2#

sub64337-50030

main64337-50030-E0iUCF3#200008-200307

SANDAL WOOD,TRIM04

sub64337-50030

main64337-50030-E0iUCF31200307-200608

SANDAL WOOD,TRIM07

sub64337-50030

main64337-50030-E1iUCF3#200008-200307

CLOVEBROWN,TRIM03

sub64337-50030

main64337-50030-E1iUCF31200307-200608

CLOVEBROWN,TRIM00

sub64337-50030

64339GARNISH, PACKAGE TRAY TRIM, LH

main64339-50030-B0iUCF3#200008-200307

DK.CHARCOAL,TRIM1#

sub64339-50030

main64339-50030-C0iUCF3#200008-200307

BLACK,TRIM2#

sub64339-50030

main64339-50030-E0iUCF3#200008-200307

SANDAL WOOD,TRIM04

sub64339-50030

main64339-50030-E1iUCF3#200008-200307

CLOVEBROWN,TRIM03

sub64339-50030

main64339-50040-B0iUCF31200008-200307

sub64339-50040

main64339-50040-B1iUCF31200307-200608

MD.GRAY,TRIM1#

sub64339-50040

main64339-50040-C0iUCF31200008-200307

sub64339-50040

main64339-50040-C0iUCF31200307-200608

BLACK,TRIM21,24

sub64339-50040

main64339-50040-E0iUCF31200008-200307

sub64339-50040

main64339-50040-E0iUCF31200307-200608

SANDAL WOOD,TRIM07

sub64339-50040

main64339-50040-E1iUCF31200307-200608

CLOVEBROWN,TRIM00

sub64339-50040

main64339-50040-E1iUCF31200008-200307

sub64339-50040

64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2

main64340-50010-B0iUCF3#..B,C200008-200307

DARK CHARCOAL,TRIM1#

main64340-50010-B1iUCF3#..B,C200307-200608

MD.GRAY,TRIM1#

main64340-50010-C0iUCF30..B200307-200608

BLACK,TRIM21,24

main64340-50010-C0iUCF30..B200008-200608

BLACK,TRIM2#

main64340-50010-E0iUCF3#..B,C200008-200307

CLOVEBROWN,TRIM03

main64340-50010-E0iUCF3#..B,C200307-200608

CLOVEBROWN,TRIM00

main64340-50010-E1iUCF3#..B,C200008-200307

SANDALWOOD,TRIM04

main64340-50010-E1iUCF3#..B,C200307-200608

SANDALWOOD,TRIM07

64350ASHADE ASSY, REAR WINDOW

main64350-50010iUCF3#..B,C200008-200203

main64350-50011iUCF3#..B,C200203-200307

sub64350-50012

main64350-50012iUCF3#..B,C200307-200410

sub64350-50013

main64350-50013iUCF3#..B,C200411-200412

sub64350-50014

main64350-50014iUCF3#..B,C200412-200507

sub64350-50015

main64350-50015iUCF3#..B,C200508-200602

sub64350-50016

main64350-50016iUCF3#..B,C200603

64705AGUARD SUB-ASSY, SPARE WHEEL

main64705-50020iUCF3#200008-200301

sub64705-50021

main64705-50021iUCF3#200301-200608

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-50130-C0iUCF3#200008-200307

OFF BLACK,TRIM03,04,1#,2#

main64710-50131-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,2#

main64710-50131-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,21,24

main64710-50140-C0iUCF3#200008-200307

main64710-50141-C0iUCF30200307-200608

main64710-50141-C0iUCF30200307-200608

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64701-50010-C0iUCF3#200008-200307

OFF BLACK,TRIM03,04,1#,2#

sub64701-50011

main64701-50011-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,2#

main64701-50011-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,21,24

64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)

main90467-08186-C0iUCF3#200307-200608

BLACK,TRIM0#,1#,2#

sub90467-08186

main90467-08186-C0iUCF3#200008-200307

BLACK,TRIM03,04,1#,2#

sub90467-08186

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-50010-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,2#

main64712-50010-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,21,24

main64712-50020-C0iUCF31200307-200608

main64712-50020-C0iUCF30200307-200608

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64075-50010-C0iUCF3#200008-200307

OFF BLACK,TRIM03,04,1#,2#

main64075-50012-C0iUCF31200307-200608

OFF BLACK,TRIM00,07,1#,21,24

main64075-50012-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,2#

main64075-50030-C0iUCF3#200008-200307

main64075-50032-C0iUCF30200307-200608

main64075-50032-C0iUCF30200307-200608

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-08186-C0iUCF3#200307-200608

BLACK,TRIM0#,1#,2#

sub90467-08186

main90467-08186-C0iUCF3#200008-200307

BLACK,TRIM03,04,1#,2#

sub90467-08186

main90467-08186-C0iUCF3#200008-200307

sub90467-08186

main90467-08186-C0iUCF3#200307-200608

sub90467-08186

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-50030-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,2#

main64718-50030-C0iUCF3#200008-200307

OFF BLACK,TRIM03,04,1#,2#

main64718-50030-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,21,24

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-50070-C0iUCF31200307-200608

OFF BLACK,TRIM00,07,1#,21,24

main64720-50070-C0iUCF3#200008-200307

OFF BLACK,TRIM03,04,1#,2#

main64720-50070-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,2#

main64720-50080-C0iUCF31200307-200608

main64720-50080-C0iUCF30200307-200608

main64720-50080-C0iUCF3#200008-200307

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0iUCF3#200008-200307

BLACK,TRIM03,04,1#,2#

sub90467-08186

main90467-08186-C0iUCF3#200307-200608

BLACK,TRIM0#,1#,2#

sub90467-08186

64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER

main64723-50020-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,21,24

main64723-50020-C0iUCF3#200008-200307

OFF BLACK,TRIM03,04,1#,2#

main64723-50020-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,2#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-50070iUCF3#200008-200105

sub64725-50071

main64725-50071iUCF3#200105-200608

64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2

main64726-30060-C0iUCF3#200008-200307

BLACK,TRIM03,04,1#,2#

main64726-30060-C0iUCF30200307-200608

BLACK,TRIM00,07,1#,2#

main64726-30060-C0iUCF30200307-200608

BLACK,TRIM00,07,1#,21,24

64730GBOARD, DECK TRIM SIDE, RH

main64731-50010-C0iUCF3#200008-200307

OFF BLACK,TRIM03,04,1#,2#

main64731-50010-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,2#

main64731-50010-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,21,24

64740DBOARD, DECK TRIM SIDE, LH

main64732-50010-C0iUCF3#200008-200307

BLACK,TRIM03,04,1#,2#

main64732-50010-C0iUCF30200307-200608

BLACK,TRIM00,07,1#,2#

main64732-50010-C0iUCF30200307-200608

BLACK,TRIM00,07,1#,21,24

64743COVER, SIDE TRIM TOOL BAG

main64743-50010-C0iUCF3#200008-200307

BLACK,TRIM03,04,1#,2#

main64743-50010-C0iUCF30200307-200608

BLACK,TRIM00,07,1#,2#

main64743-50010-C0iUCF30200307-200608

BLACK,TRIM00,07,1#,21,24

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-50010-C0iUCF3#200008-200307

OFF BLACK,TRIM03,04,1#,2#

main64745-50010-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,2#

main64745-50010-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,21,24

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-50010-C0iUCF3#200008-200307

OFF BLACK,TRIM03,04,1#,2#

main64746-50010-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,2#

main64746-50010-C0iUCF30200307-200608

OFF BLACK,TRIM00,07,1#,21,24

64771COVER, SPARE WHEEL

main64771-24020iUCF3#200008-200307

main64771-50020iUCF3#200307-200608

64791COVER, BACK DOOR TRIM

main64791-50090-C0iUCF3#200008-200307

OFF BLACK,TRIM03,04,1#,2#

sub64791-50091

main64791-50090-C0iUCF30200307-200407

OFF BLACK,TRIM00,07,1#,2#

sub64791-50091

main64791-50090-C0iUCF30200307-200407

OFF BLACK,TRIM00,07,1#,21,24

sub64791-50091

main64791-50091-C0iUCF30200408-200608

OFF BLACK,TRIM00,07,1#,2#

main64791-50091-C0iUCF30200408-200608

OFF BLACK,TRIM00,07,1#,21,24

64791ACLIP(FOR BACK DOOR TRIM)

main90467-08186-C0iUCF3#200008-200307

BLACK,TRIM03,04,1#,2#

sub90467-08186

main90467-08186-C0iUCF3#200307-200608

BLACK,TRIM0#,1#,2#

sub90467-08186

66310DHOOK ASSY, ROPE

main66311-50010iUCF3#200008-200608

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-30010iUCF3#200008-200608

75201ABOX, TOOL

main75201-50040iUCF3#200008-200307

sub75201-50041

main75201-50041iUCF3#200307-200608

9010906293

main90109-06293

9011906018

main90119-06018

9011906833

main90119-06833

9015960350

main90159-60350

9026904016

main90269-04016

9046708180

main90467-08180

9046710161

main90467-10161

9046712069

main90467-12069

9046804157

main90468-04157

9046805060

main90468-05060

48 parts on this diagram · 1 diagram in section
