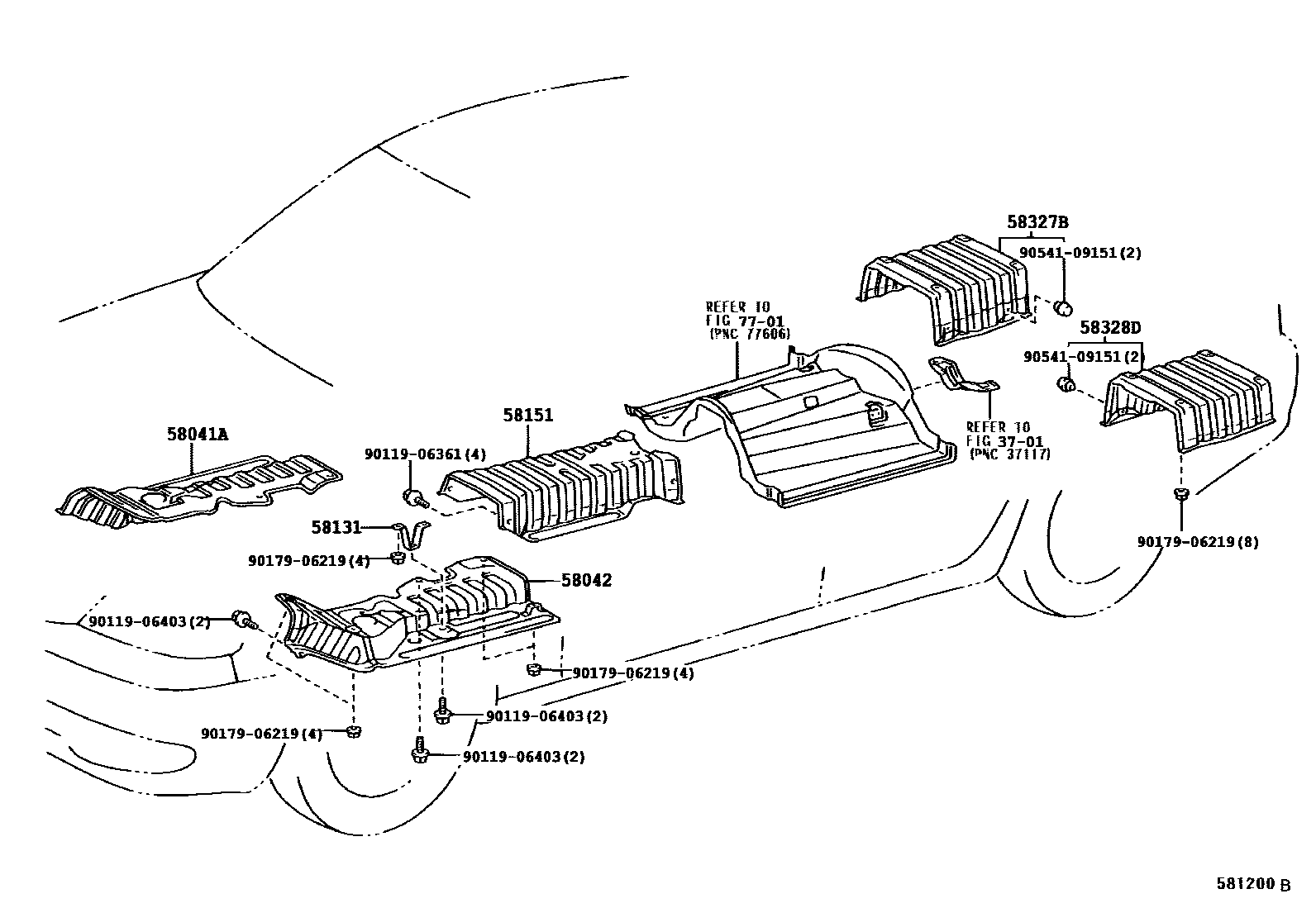

FLOOR INSULATOR

3701

58041AINSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.1

main58041-50010iUCF3#200008-200307

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-50010iUCF3#200008-200307

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-50010iUCF3#200008-200307

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-50020iUCF3#200008-200307

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-50030iUCF3#200008-200307

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-50020iUCF3#200008-200307

7701

9011906361

main90119-06361

9011906403

main90119-06403

9017906219

main90179-06219

9054109151

main90541-09151

12 parts on this diagram · 1 diagram in section
