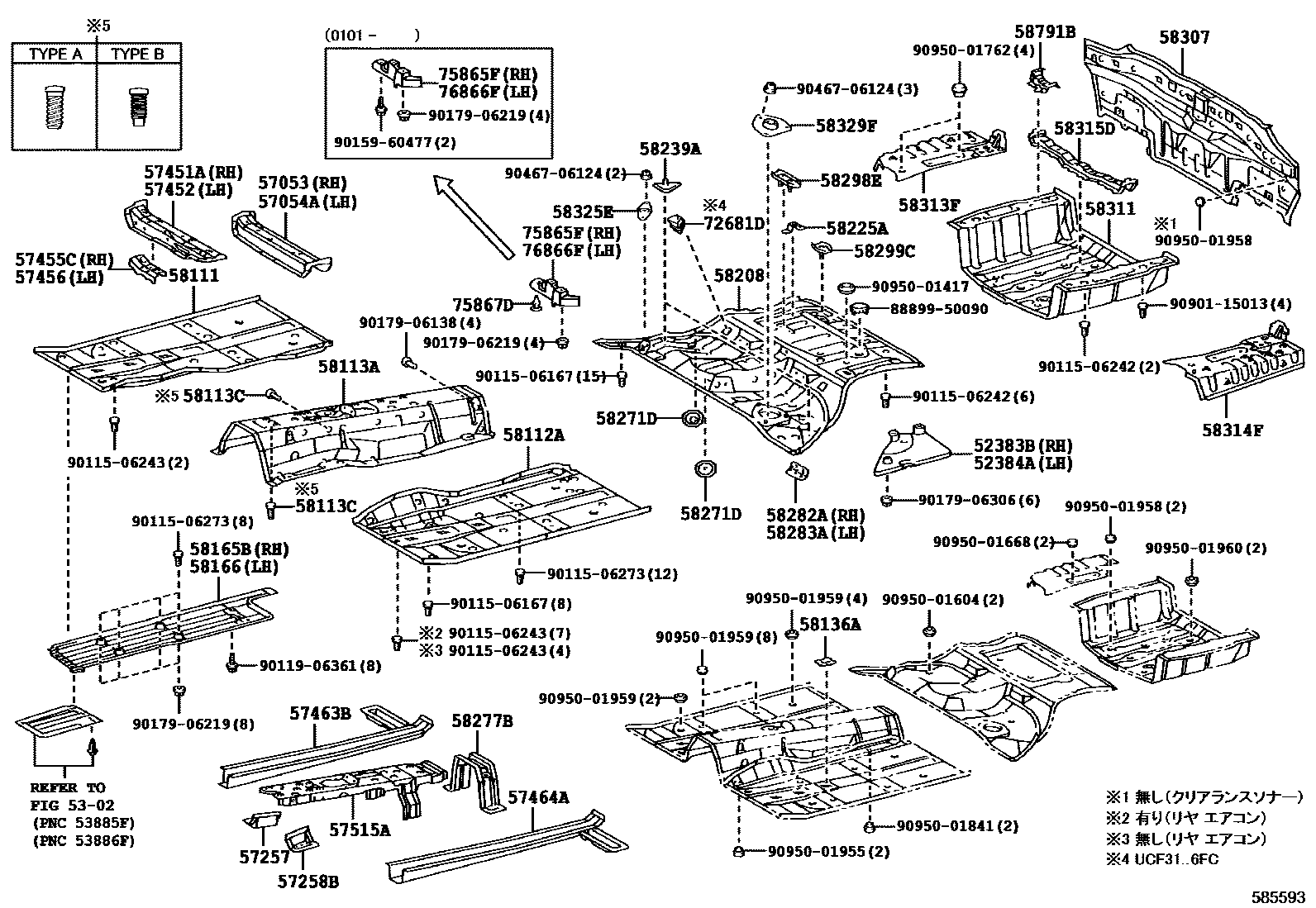

FLOOR PAN & LOWER BACK PANEL

52383BPROTECTOR, DIFFERENTIAL SUPPORT, NO.1

main52383-50010iUCF3#200008-200307

52384APROTECTOR, DIFFERENTIAL SUPPORT, NO.2

main52384-50010iUCF3#200008-200307

5302

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-50010iUCF3#200008-200307

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-50010iUCF3#200008-200307

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-50030iUCF3#200008-200307

57258BBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-50030iUCF3#200008-200307

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-50030iUCF3#200008-200307

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-50030iUCF3#200008-200307

57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH

main57455-50030iUCF3#200008-200307

57456BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH

main57456-50030iUCF3#200008-200307

57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

main57043-50050iUCF3#200008-200307

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57044-50050iUCF3#200008-200307

57515AREINFORCEMENT, FRONT FLOOR, CENTER

main57507-50020iUCF3#200008-200303

main57507-50040iUCF3#200307

58111PAN, FRONT FLOOR

main58111-50903iUCF3#200008-200307

58112APANEL, FRONT FLOOR, LH

main58112-50903iUCF3#200008-200307

58113APANEL, FRONT FLOOR, CENTER

main58113-50908iUCF3#200008-200303

main58113-50910iUCF3#200303-200307

58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-06167×8iUCF3#200307

main90115-06243×5iUCF3#200008-200307

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-50020×6iUCF3#200008-200307

58165BCOVER, FRONT FLOOR, RH

main58165-50010iUCF3#200008-200307

58166COVER, FRONT FLOOR, LH

main58166-50010iUCF3#200008-200307

58208PAN, CENTER FLOOR

main58211-50903iUCF3#200008-200307

main58211-50904iUCF3#200008-200307

main58211-50905iUCF3#..B,C200008-200307

main58211-50906iUCF3#..B,C200008-200307

main58211-50916iUCF31200307

58225ABRACKET, CENTER MOUNTING

main58225-30060×2iUCF3#200008-200307

58239APLATE, BELT ANCHOR NUT

main58239-50030×2iUCF3#..B,C200008-200307

58271DREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3

main58271-50020×2iUCF3#..B,C200008-200307

58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT

main58209-50030iUCF3#200008-200307

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-50030iUCF3#200008-200307

58283AREINFORCEMENT, NO.2 SEAT, FRONT LH

main58283-50030iUCF3#200008-200307

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-50020iUCF3#200008-200307

58299CBRACKET, HOT AIR INTAKE, NO.2

main58299-50020iUCF3#200008-200307

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-50040iUCF3#200008-200307

58311PAN, REAR FLOOR

main58311-50900iUCF3#200008-200307

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-50010iUCF3#200008-200307

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58306-50010iUCF3#200008-200307

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-50010iUCF3#200008-200307

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30010iUCF3#200008-200307

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-30020iUCF3#200008-200307

58791BCARRIER, JACK

main58791-50030iUCF3#200008-200307

72681DHOOK, REAR SEATBACK LOCK, LOWER

main72681-50010×2iUCF31200307

75865FPROTECTOR, ROCKER PANEL MOULDING, NO.5

main75865-50090iUCF3#200008-200101

sub90189-06087

main75865-50091iUCF3#200101-200307

75867DCLIP, ROCKER PANEL MOULDING

main75867-30110×2iUCF3#200008-200101

76866FPROTECTOR, ROCKER PANEL MOULDING, NO.6

main75866-50110iUCF3#200008-200101

sub90189-06087

main75866-50111iUCF3#200101-200307

8889950090COVER, EVAPORATOR

main88899-50090

9011506167

main90115-06167

9011506242

main90115-06242

9011506243

main90115-06243

9011506273

main90115-06273

9011906361

main90119-06361

9015960477

main90159-60477

9017906138

main90179-06138

9017906219

main90179-06219

9017906306

main90179-06306

9046706124

main90467-06124

9090115013

main90901-15013

9095001417

main90950-01417

9095001604

main90950-01604

9095001668

main90950-01668

9095001762

main90950-01762

9095001841

main90950-01841

9095001955

main90950-01955

9095001958

main90950-01958

9095001959

main90950-01959

9095001960

main90950-01960

63 parts on this diagram · 1 diagram in section
