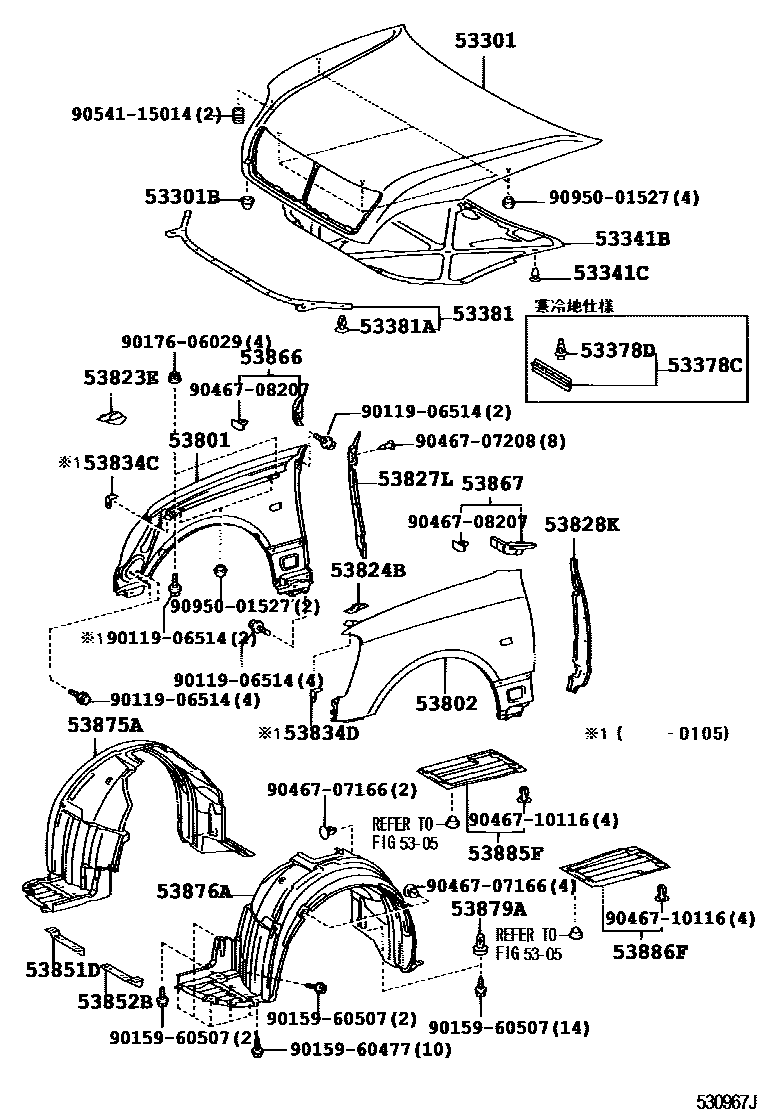

HOOD & FRONT FENDER
5305
53301BCUSHION, HOOD BUMPER
53341CCLIP(FOR HOOD INSULATOR)
53378CSEAL, HOOD AIR INTAKE DUCT
53378DCLIP(FOR HOOD AIR INTAKE DUCT SEAL)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
sub90467-08011
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53834CPLATE, FRONT FENDER SUPPORT, RH
53834DPLATE, FRONT FENDER SUPPORT, LH
53851DPAD, FRONT WHEEL OPENING EXTENSION, RH
53852BPAD, FRONT WHEEL OPENING EXTENSION, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53879ARETAINER, FRONT FENDER LINER
9011906514
main90119-06514
9015960477
main90159-60477
9015960507
main90159-60507
9017606029
main90176-06029
9046707166
main90467-07166
9046707208
main90467-07208
9046708207
main90467-08207
9046710116
main90467-10116
9054115014
main90541-15014
9095001527
main90950-01527
36 parts on this diagram · 2 diagrams in section
