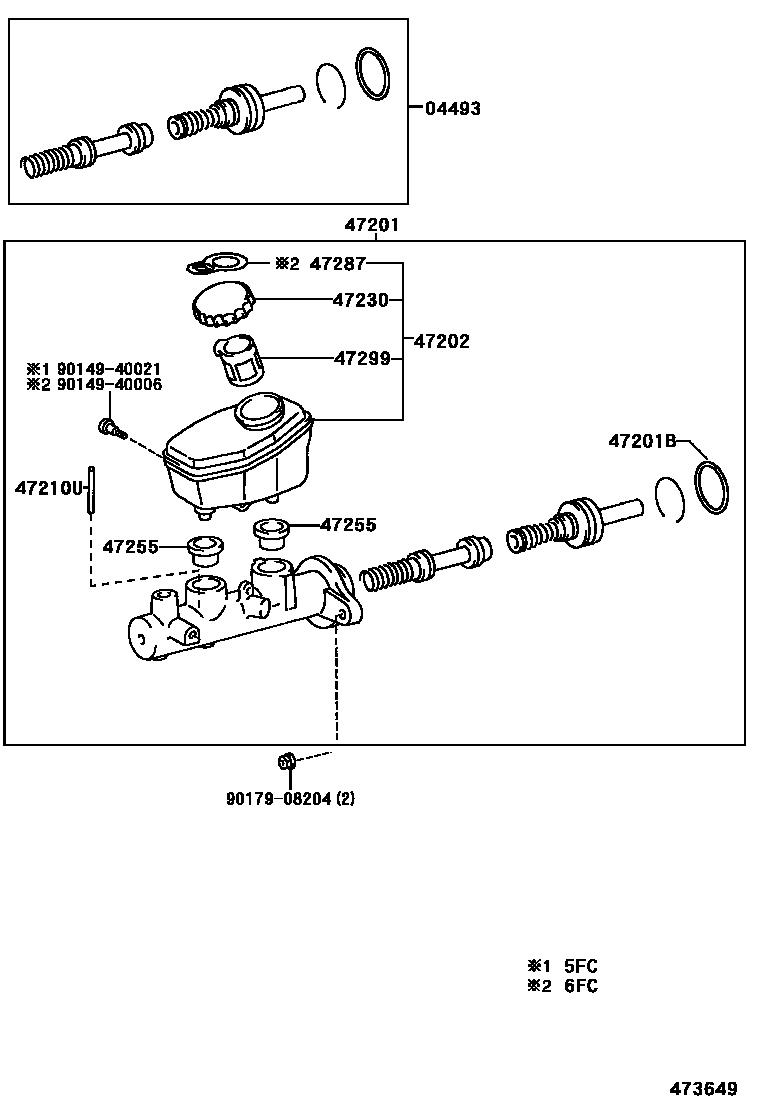

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-2A020iUCF3#200307

main04493-30290iUCF3#200008-200307

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-50270iUCF3#200008-200307

main47201-50310iUCF3#200307

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iUCF3#200008-200307

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30150iUCF3#200008-200307

main47220-50190iUCF3#200307

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iUCF3#200008-200307

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-24010iUCF3#200008-200307

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010×2iUCF3#200008-200307

47287LABEL, BRAKE FLUID INFORMATION

main47287-20020iUCF3#200307

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iUCF3#200008-200307

9014940006

main90149-40006

9014940021

main90149-40021

9017908204

main90179-08204

12 parts on this diagram · 1 diagram in section
