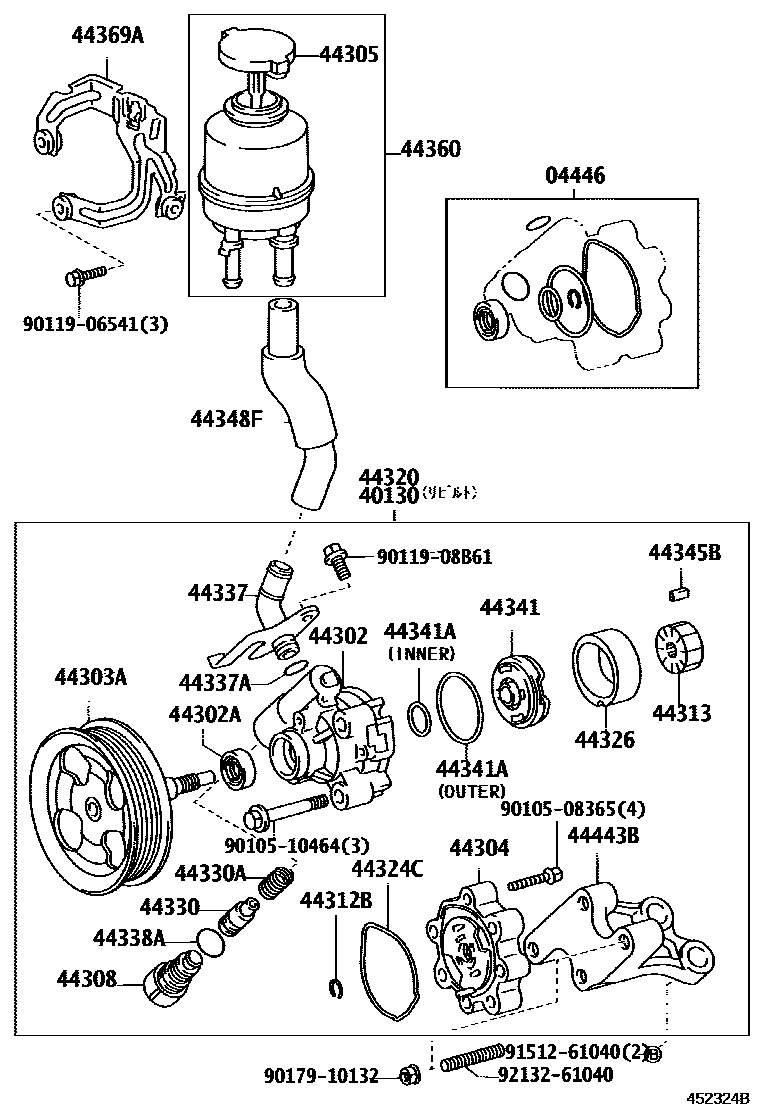

VANE PUMP & RESERVOIR (POWER STEERING)
40130PUMP ASSY,VANE REBUILT
sub44310-50070
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302ASEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
44303ASHAFT SUB-ASSY, W/PULLEY
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
sub44305-28050
44308UNION SUB-ASSY, PRESSURE PORT
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
44320PUMP ASSY, VANE
44324CRING, O(FOR PUMP HOUSING REAR)
44326RING, CAM(FOR VANE PUMP)
44330VALVE ASSY, FLOW CONTROL
sub44330-35310
sub44330-35320
sub44330-35330
sub44330-35340
sub44330-35350
sub44330-35360
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338ARING, O(FOR PRESSURE PORT UNION)
44341PLATE, VANE PUMP SIDE, FRONT
44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)
44345BPLATE, VANE PUMP
44348FHOSE, OIL RESERVOIR TO VANE PUMP
44360RESERVOIR ASSY, VANE PUMP OIL
44369ABRACKET, OIL RESERVOIR, NO.1
44443BBRACKET, VANE PUMP
9010508365
main90105-08365
9010510464
main90105-10464
9011906541
main90119-06541
9011908B61
main90119-08B61
9017910132
main90179-10132
9151261040
main91512-61040
9213261040
main92132-61040
32 parts on this diagram · 2 diagrams in section
