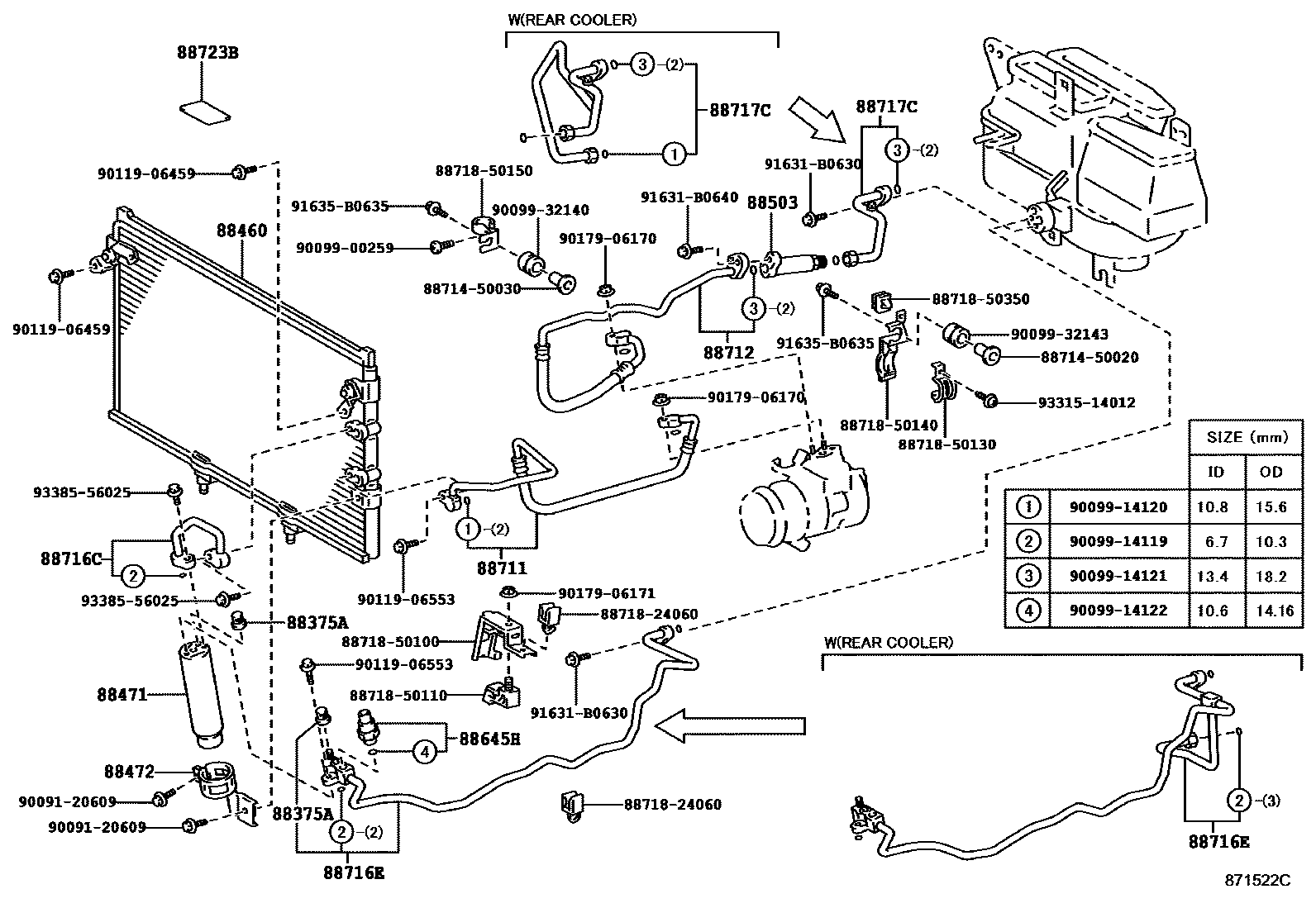

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1REAR COOLER

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iUCF2#199410

88460CONDENSER ASSY, COOLER

main88460-50120iUCF2#199410

88471TANK, RECEIVER AIR CONDITIONER

main88471-30370iUCF2#199410

88472BRACKET, RECEIVER TANK, NO.1

main88472-50010iUCF2#199410

88503REGULATOR ASSY, PRESSURE

main88503-41010iUCF2#199410

88645HSWITCH, PRESSURE NO.1

main88645-20050iUCF2#199410

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-50040iUCF2#199410-199707

main88711-50060iUCF2#199707

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-50170iUCF2#199410-199707

main88712-50230iUCF2#199707

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-50280iUCF2#199410

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-50230iUCF2#199410

main88716-50240iUCF21199410-199707

main88716-50440iUCF21199707

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-50220iUCF21199410-199707

main88717-50230iUCF2#199410

main88717-50280iUCF21199707

88723BLABEL, COOLER SERVICE CAUTION

main88723-50140iUCF2#199410

8871450020HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-50020

8871450030HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-50030

8871824060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24060

8871850100PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50100

8871850110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50110

8871850130PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50130

8871850140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50140

8871850150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50150

8871850350PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50350

9009120609

main90091-20609

9009900259

main90099-00259

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9009932140

main90099-32140

9009932143

main90099-32143

9011906459

main90119-06459

9011906553

main90119-06553

9017906170

main90179-06170

9017906171

main90179-06171

91631B0630

main91631-B0630

91631B0640

main91631-B0640

91635B0635

main91635-B0635

9331514012

main93315-14012

9338556025

main93385-56025

38 parts on this diagram · 2 diagrams in section
