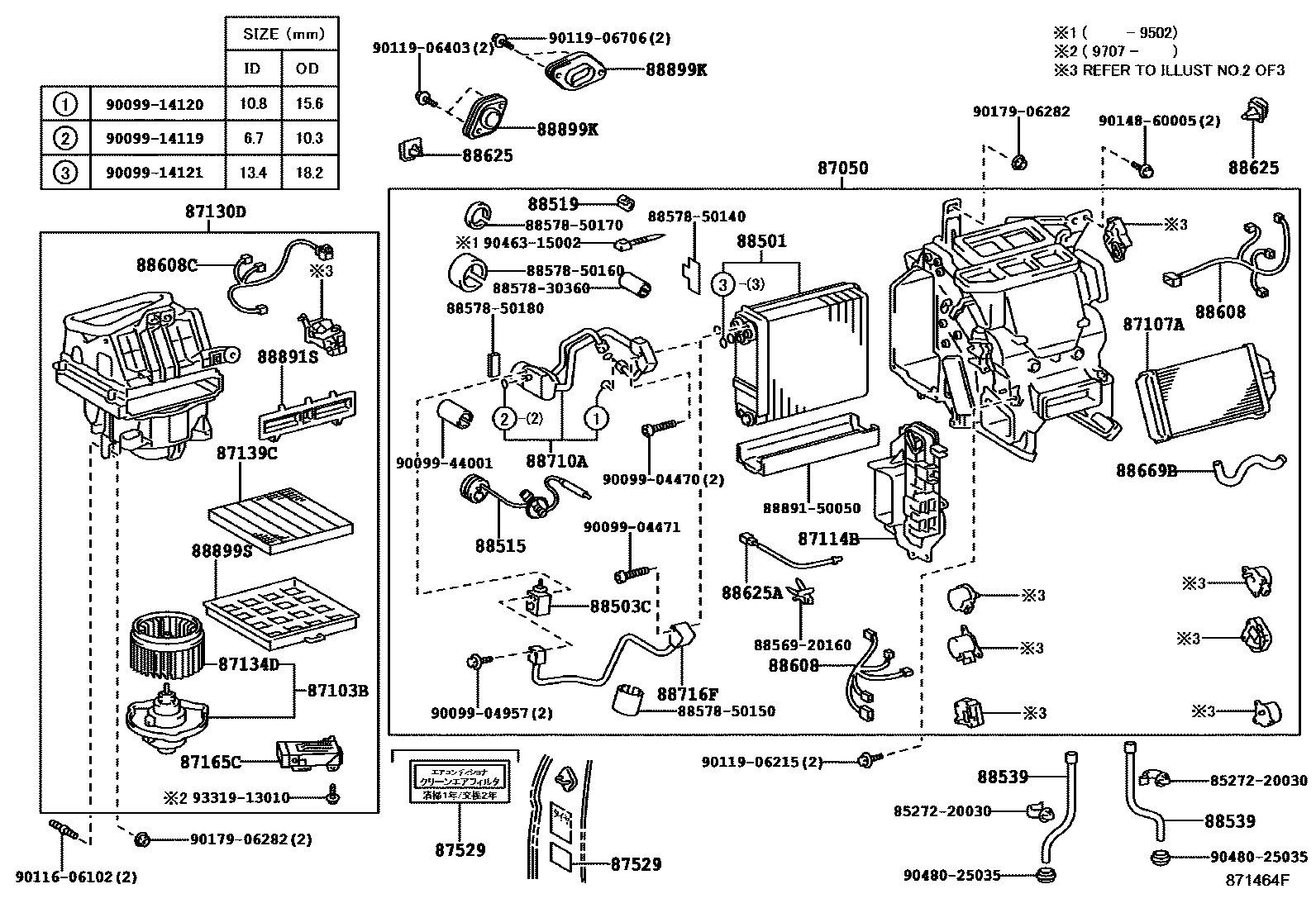

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1REAR COOLER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-50030iUCF2#..B,C199410-199602

sub87050-50050

main87050-50031iUCF2#..B,C199602-199703

main87050-50032iUCF2#199703

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-50040iUCF2#199410

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-50030iUCF2#199410

87114BCOVER, HEATER

main87114-50020iUCF2#199410

87130DBLOWER ASSY

main87130-50020iUCF2#199410-199707

main87130-50040iUCF2#199707

87134DFAN, BLOWER, NO.2

main87134-50020iUCF2#199410

87139CFILTER, CLEAN AIR

main87139-50010iUCF2#199410-200008

87165CCONTROL, BLOWER MOTOR

main87165-22040iUCF2#199707-200004

main87165-22050iUCF2#200004

main87165-50010iUCF2#199410-199707

sub87165-50020

87529PLATE, AIR FILTER CAUTION

main87529-50020iUCF2#199707

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-50140iUCF2#199410

88503CREGULATOR SUB-ASSY, PRESSURE

main88503-50170iUCF2#199410

88515VALVE, COOLER EXPANSION

main88515-50140iUCF2#199410

sub88515-50150

88519HOLDER, REMOTE BULB

main88519-22030iUCF2#199410

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-50040×2iUCF2#199410

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-50140iUCF2#199410

main88608-50170iUCF2#199410

88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-50180iUCF2#199410-199707

main88608-50230iUCF2#199707

88625THERMISTOR, COOLER, NO.1

main88625-50130×2iUCF2#199410

88625ATHERMISTOR, COOLER NO.2

main88625-50140iUCF2#199410

88669BHOSE, COOLER AIR

main88669-50040iUCF2#199410

88710ATUBE ASSY, AIR CONDITIONER

main88710-50500iUCF2#199410-199502

main88710-50501iUCF2#199502

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-50350iUCF2#199410

88891SCOVER, COOLER, NO.1

main88891-50030iUCF2#199410

88899KPLATE, COVER

main88899-50020iUCF2#199410

main88899-50040iUCF2#199410-199703

main88899-50041iUCF2#199703

88899SFRAME, FRONT COOLER

main88899-50050iUCF2#199410

8527220030CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20030

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

8857830360PAKING, COOLER AIR DUCT

main88578-30360

8857850140PAKING, COOLER AIR DUCT

main88578-50140

8857850150PAKING, COOLER AIR DUCT

main88578-50150

8857850160PAKING, COOLER AIR DUCT

main88578-50160

8857850170PAKING, COOLER AIR DUCT

main88578-50170

8857850180PAKING, COOLER AIR DUCT

main88578-50180

8889150050PACKING (FOR COOLER)

main88891-50050

9009904470

main90099-04470

9009904471

main90099-04471

9009904957

main90099-04957

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009944001

main90099-44001

9011606102

main90116-06102

9011906215

main90119-06215

9011906403

main90119-06403

9011906706

main90119-06706

9014860005

main90148-60005

9017906282

main90179-06282

9046315002

main90463-15002

9048025035

main90480-25035

9331913010

main93319-13010

49 parts on this diagram · 3 diagrams in section
