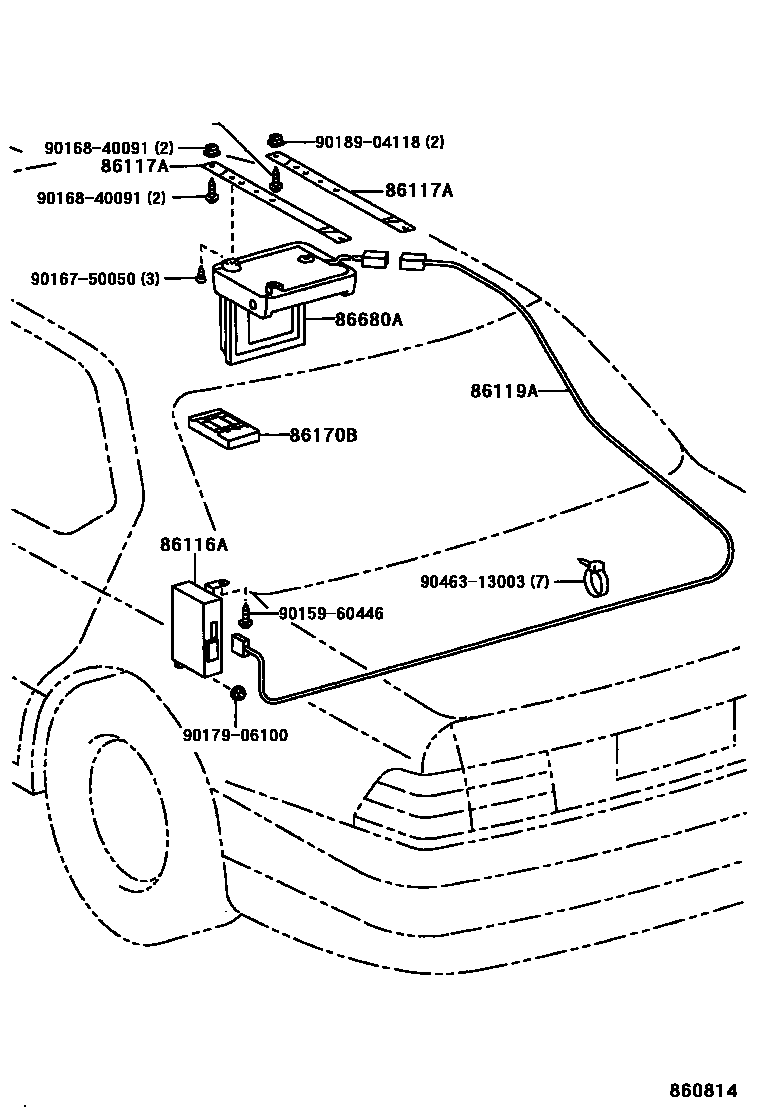

CAMERA & REAR MONITOR DISPLAY

0001 1��(����� ��� ������) 0002 1��(����� ��� ������)

86116ACONTROLLER, VIDEO

main86116-50020iUCF21199410-199707

86117ABRACKET, TELEVISION DISPLAY, A

main86117-50030iUCF21199410-199707

main86117-50040iUCF21199707

86119AWIRE, TELEVISION SWITCH

main86119-50050iUCF21199410-199808

main86119-50060iUCF21199410-199808

main86119-50070iUCF21199410-199707

main86119-50080iUCF21199707-199808

main86119-50110iUCF21199808

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-50030iUCF21199410-199808

main86170-50100iUCF21199808

86680ADISPLAY ASSY, TELEVISION

main86680-50020-A0iUCF21199410-199707

IVORY,TRIM0#

main86680-50020-A1iUCF21199707-199808

main86680-50020-B0iUCF21199410-199808

main86680-50030iUCF21199707-199808

main86680-50050iUCF21199808-200008

9015960446

main90159-60446

9016750050

main90167-50050

9016840091

main90168-40091

9017906100

main90179-06100

9018904118

main90189-04118

9046313003

main90463-13003

11 parts on this diagram · 2 diagrams in section
