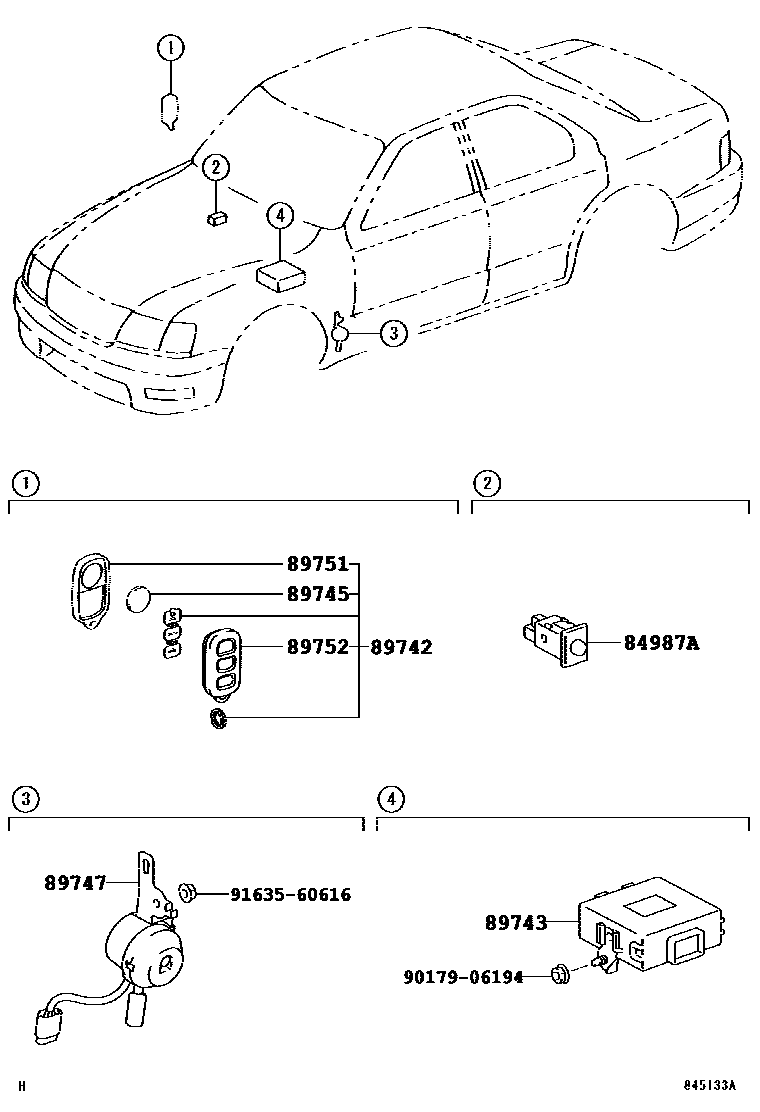

WIRELESS DOOR LOCK

0001 1 0002 1

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-50040iUCF2#199410

89742TRANSMITTER, DOOR CONTROL

main89742-50590iUCF2#199410-199608

main89742-50710iUCF2#199608-199707

89743RECEIVER, DOOR CONTROL

main89741-50170iUCF2#199410-199608

main89741-50280iUCF2#199608-199707

89745BATTERY, TRANSMITTER

main89745-40010iUCF2#199707-200008

main89745-50010iUCF2#199410-199707

sub89745-71010

89747BUZZER, WIRELESS DOOR LOCK

main89747-50030iUCF2#199410-199707

main89747-50040iUCF2#199707-200008

89751COVER, TRANSMITTER HOUSING

main89751-50120iUCF2#199410-199707

89752CASE, TRANSMITTER HOUSING

main89752-50030iUCF2#199410-199707

9017906194

main90179-06194

9163560616

main91635-60616

9 parts on this diagram · 2 diagrams in section
