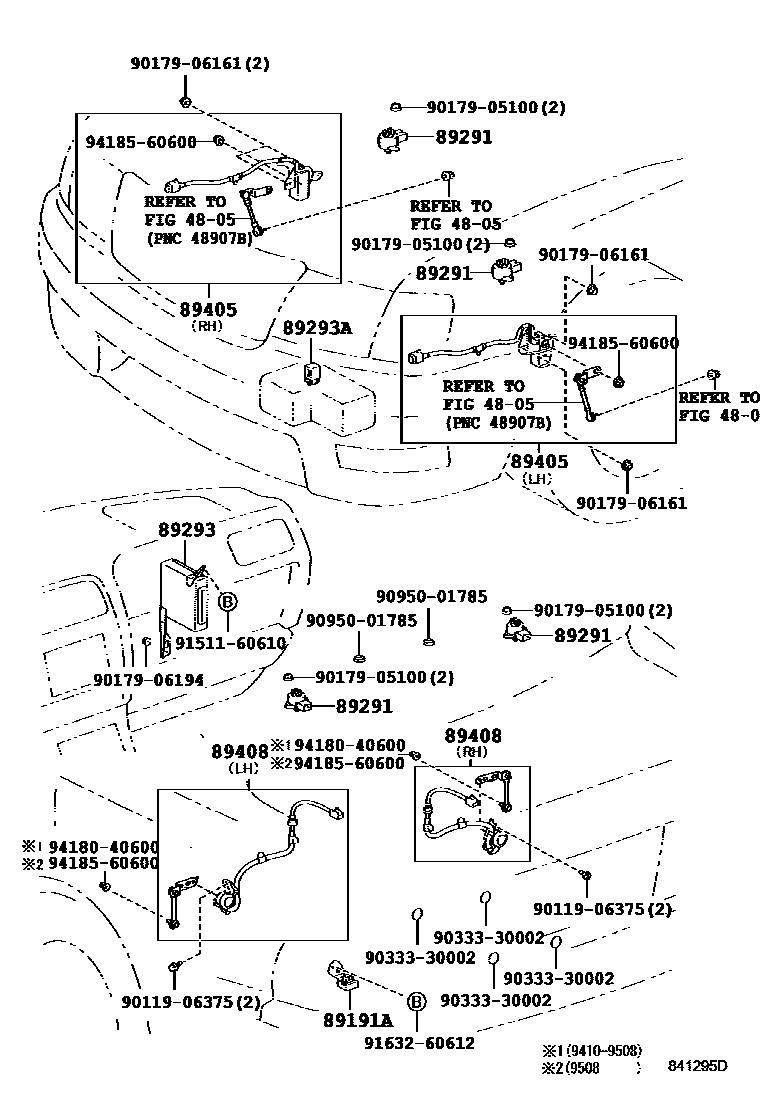

ELECTRONIC MODULATED SUSPENSION

4805

89191ASENSOR, ACCELERATION

main89191-50010iUCF21199410

89291ACTUATOR, SUSPENSION CONTROL, FRONT

main89291-50050iUCF21199410

89293COMPUTER, SUSPENSION CONTROL

main89293-50070iUCF21199410-199508

sub89293-50071

main89293-50071iUCF21199508-199510

sub89293-50072

main89293-50072iUCF21199510-199707

main89293-50080iUCF21199707

89293ARELAY, SUSPENSION CONTROL

main90987-02006iUCF21199410

89405SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT

main89405-50040iUCF21199410

main89406-50040iUCF21199410

89408SENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89407-50040iUCF21199410-199707

main89407-50050iUCF21199707

main89408-50040iUCF21199410-199707

main89408-50050iUCF21199707

9011906375

main90119-06375

9017905100

main90179-05100

9017906161

main90179-06161

9017906194

main90179-06194

9033330002

main90333-30002

9095001785

main90950-01785

9151160610

main91511-60610

9163260612

main91632-60612

9418040600

main94180-40600

9418560600

main94185-60600

17 parts on this diagram · 1 diagram in section
