REAR COMBINATION LAMP

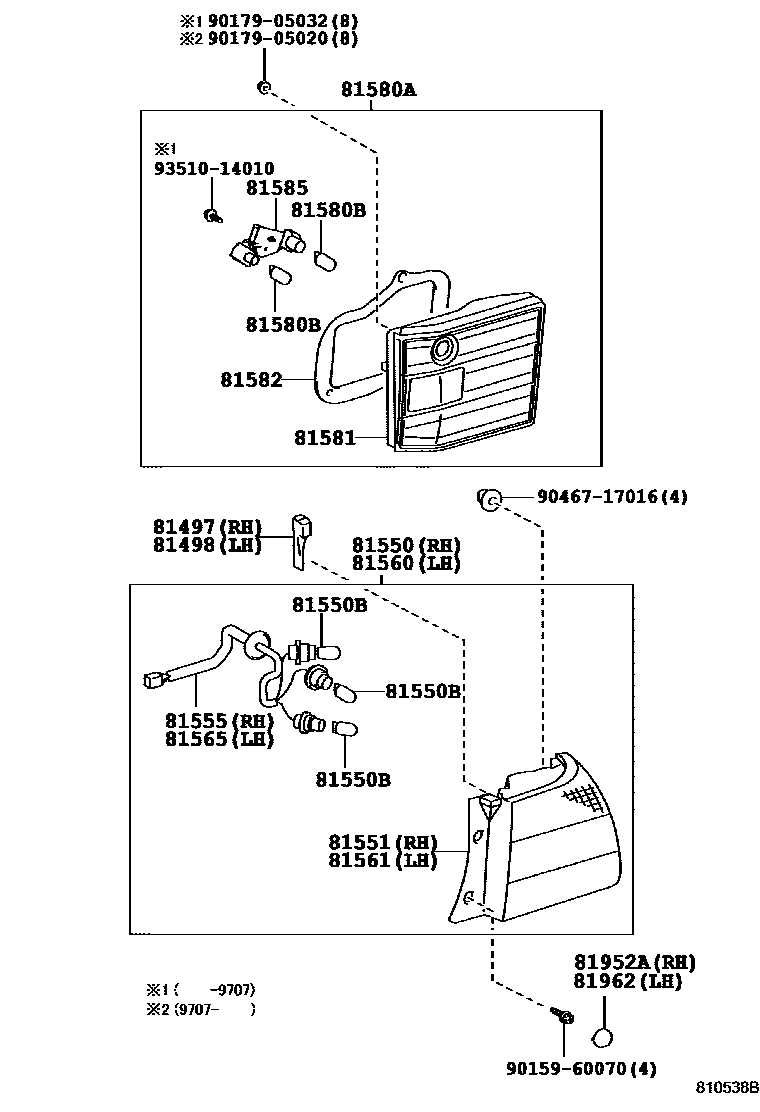

Parts diagram

81497COVER, REAR COMBINATION LAMP, RH

main81497-50020i¥410199410-199707

main81497-50030i¥670199707

81498COVER, REAR COMBINATION LAMP, LH

main81498-50020i¥410199410-199707

main81498-50030i¥670199707

81550LAMP ASSY, REAR COMBINATION, RH

main81550-50050i¥25,900199410-199707

main81550-50060i¥25,900199410-199707

main81550-50080i¥28,700199707

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13050i¥220199410

sub90981-13043¥220

main90981-13051i¥230199410

sub90981-11048¥230

main99132-11210i¥170199410-199707

main99132-21210i¥190199410-199707

81551LENS, REAR COMBINATION LAMP, RH

main81551-50050i¥23,000199410-199707

main81551-50060i¥23,000199410-199707

main81551-50080i¥25,300199707

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-50050i¥2,470199410-199707

main81555-50060i¥2,470199410-199707

main81555-50080i¥2,470199707

81560LAMP ASSY, REAR COMBINATION, LH

main81560-50050i¥25,900199410-199707

main81560-50060i¥25,900199410-199707

main81560-50080i¥28,700199707

81561LENS, REAR COMBINATION LAMP, LH

main81561-50050i¥23,000199410-199707

main81561-50060i¥23,000199410-199707

main81561-50080i¥25,300199707

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-50050i¥2,470199410-199707

main81555-50060i¥2,470199410-199707

main81555-50080i¥2,470199707

81580ALAMP ASSY, REAR

main81580-50040i¥19,100199410-199707

main81580-50070i¥22,600199410-199707

main81580-50080i¥24,200199707

main81580-50090i¥25,300199707

main81590-50040i¥19,100199410-199707

main81590-50070i¥22,600199410-199707

main81590-50080i¥24,200199707

main81590-50090i¥25,300199707

81580BBULB (FOR REAR LAMP)

main90981-13050i¥220199707

sub90981-13043¥220

main90981-13050i¥220199410

sub90981-13043¥220

main90981-13051i¥230199410

sub90981-11048¥230

main99132-11210i¥170199410-199707

81581LENS, REAR LAMP

main81581-50040i¥13,900199410-199707

main81581-50070i¥17,800199410-199707

main81581-50080i¥20,600199707

main81581-50090i¥20,700199707

main81591-50040i¥13,900199410-199707

main81591-50070i¥17,800199410-199707

main81591-50080i¥20,600199707

main81591-50090i¥20,700199707

81582GASKET, REAR LAMP

main81582-50040i¥1,030199410-199707

main81582-50080i¥1,060199707

81585SOCKET & WIRE, REAR LAMP

main81585-50040i¥3,280199410-199707

main81585-50060i¥3,280199410-199707

main81585-50080i¥2,030199707

main81585-50090i¥2,470199707

main81595-50040i¥3,280199410-199707

main81595-50060i¥3,280199410-199707

81952ACOVER, REAR LAMP, RH

main81952-50010i¥120199410

81962COVER, REAR LAMP, LH

main81952-50010i¥120199410

9015960070

main90159-60070¥130

9017905020

main90179-05020¥140

9017905032

main90179-05032¥120

9046717016

main90467-17016¥190

9351014010

main93510-14010¥90

21 parts on this diagram · 1 diagram in section
