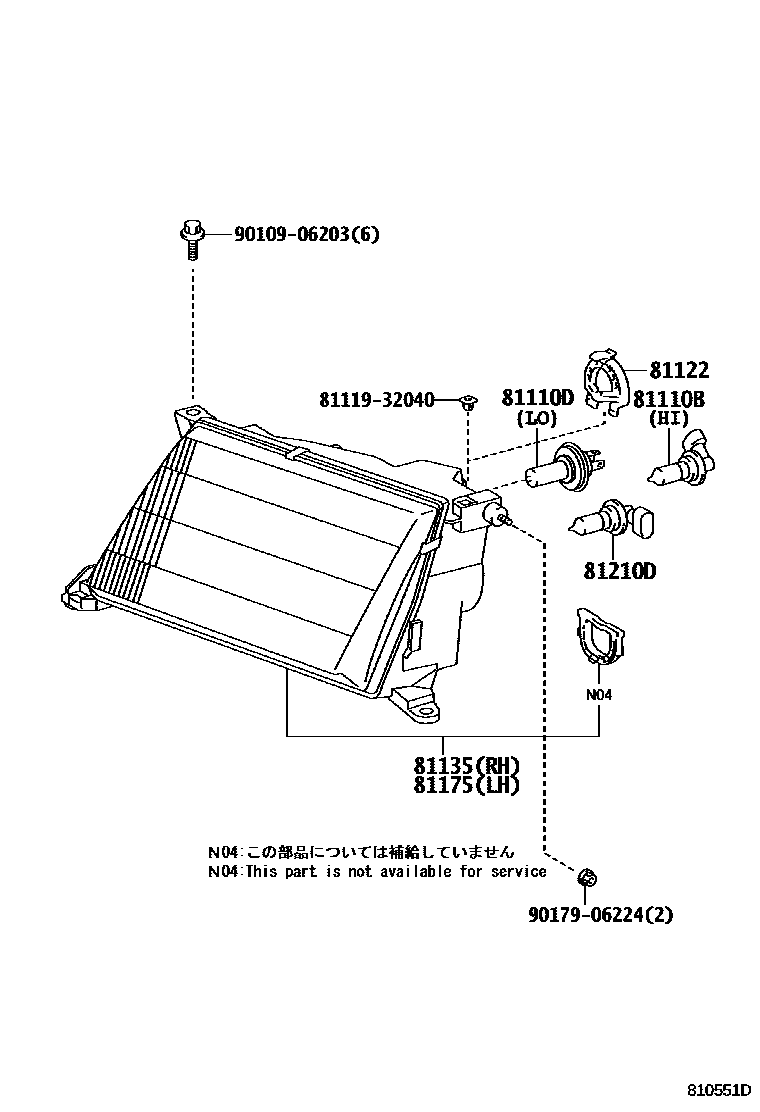

HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-50180iUCF2#199707

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iUCF2#199410-199507

main90981-13046×2iUCF2#199410-199707

81110DBULB(FOR HEADLAMP, NO.2)

main90981-20002×2iUCF2#199707

main90981-22002×2iUCF2#199410-199707

sub90981-13055

81122HOLDER, HEADLAMP

main81122-50100×2iUCF2#199410-199707

main81122-50180×2iUCF2#199707

81135UNIT ASSY, HEADLAMP, RH

main81130-50110iUCF2#199410-199707

main81130-50180iUCF2#199707

81175UNIT ASSY, HEADLAMP, LH

main81170-50110iUCF2#199410-199707

main81170-50180iUCF2#199707

81210DBULB, FOG LAMP

main90080-81040×2iUCF2#199410-199507

main90981-13047×2iUCF2#199410-199707

8111932040SCREW, HEADLAMP

main81119-32040

9010906203

main90109-06203

9017906224

main90179-06224

10 parts on this diagram · 2 diagrams in section
