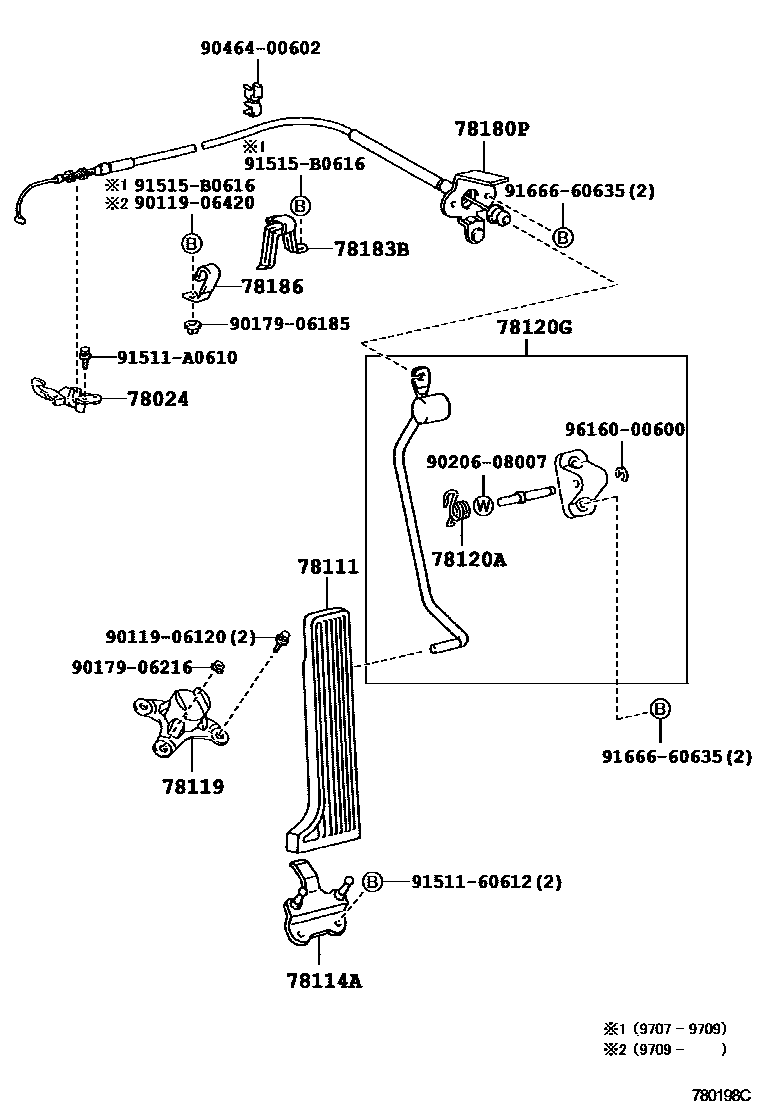

ACCELERATOR LINK

0001 1 0002 1����� ���

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-50020iUCF2#199707

78111PEDAL, ACCELERATOR

main78111-12100iUCF2#199410

main78111-30110iUCF2#199410

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-50021iUCF2#199410

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-50020iUCF2#199410-199707

main78119-50040iUCF2#199707

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main78214-50010iUCF2#199707

main90508-18103iUCF2#199707

main90959-03059iUCF2#199410-199707

78120GROD ASSY, ACCELERATOR PEDAL

main78120-50060iUCF2#199410-199707

main78120-50070iUCF2#199410-199707

main78120-50110iUCF2#199707

main78120-50140iUCF2#199707

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-50040iUCF2#199410-199707

main78180-50070iUCF2#199707-199709

main78180-50071iUCF2#199709

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-50010iUCF2#199707

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12320iUCF2#199707-199709

sub78186-12480

main78186-50010iUCF2#199709

9011906120

main90119-06120

9011906420

main90119-06420

9017906185

main90179-06185

9017906216

main90179-06216

9020608007

main90206-08007

9046400602

main90464-00602

9151160612

main91511-60612

91511A0610

main91511-A0610

91515B0616

main91515-B0616

9166660635

main91666-60635

9616000600

main96160-00600

20 parts on this diagram · 2 diagrams in section
