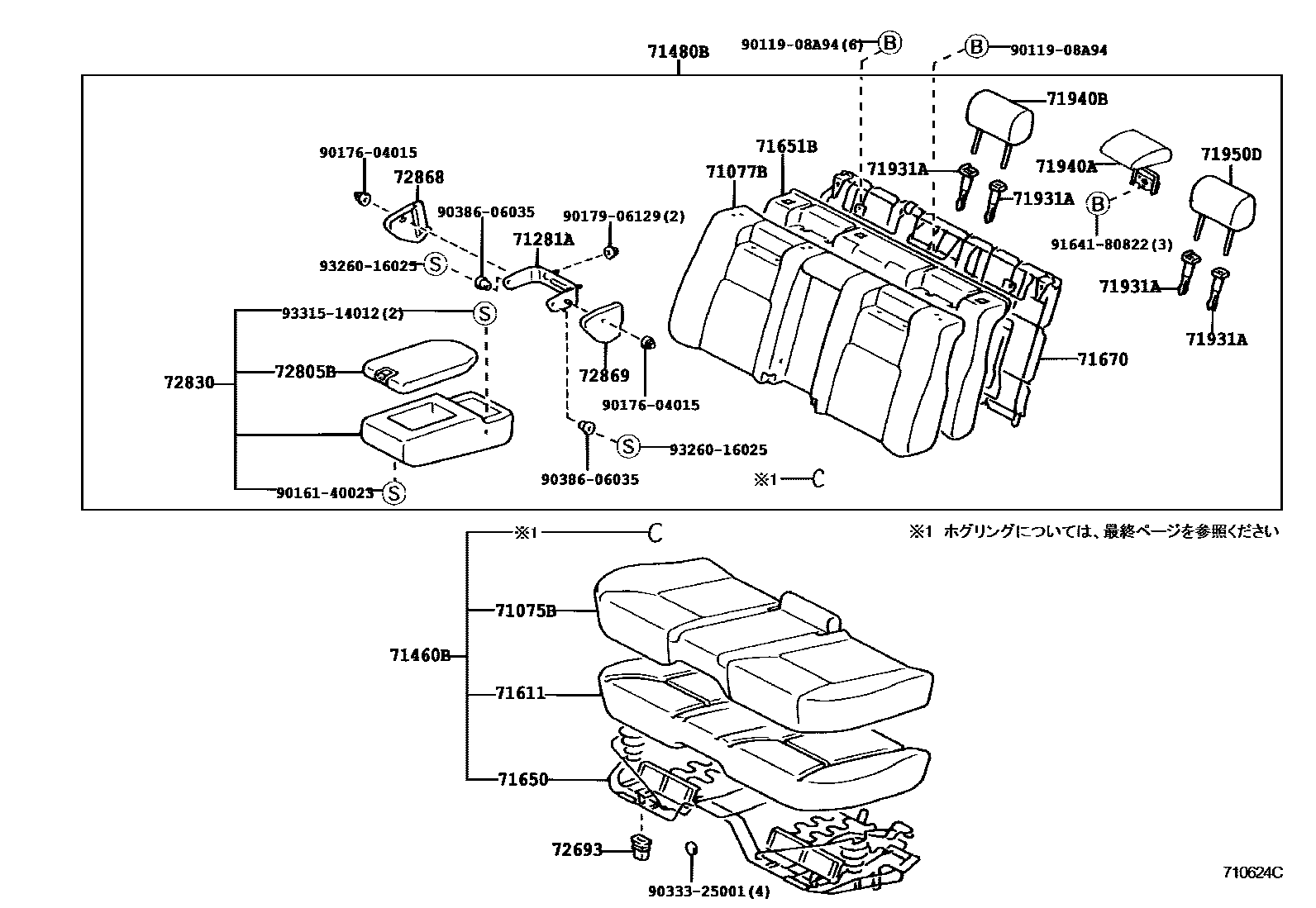

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1F ����-�� 0004 1�������

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-50150-A0iUCF2#..B,C199410-199707

sub71075-50150

main71075-50150-G0iUCF2#..B,C199410-199707

sub71075-50150

main71075-50160-B0iUCF20..A199410-199707

BLUE GRAY,TRIM1#

main71075-50160-G0iUCF20..A199410-199707

AGATE,TRIM6#

main71075-50170-A0iUCF2#..B,C199410-199608

IVORY,TRIM0#

sub71075-50171

main71075-50170-B0iUCF2#..B,C199410-199608

BLUE GRAY,TRIM1#

sub71075-50171

main71075-50170-G0iUCF2#..B,C199410-199608

AGATE,TRIM6#

sub71075-50171

main71075-50171-A1iUCF2#..B,C199608-199707

IVORY,TRIM0#

main71075-50171-B1iUCF2#..B,C199608-199707

BLUE GRAY,TRIM1#

main71075-50171-G1iUCF2#..B,C199608-199707

AGATE,TRIM6#

main71075-50180-B0iUCF2#199608-199707

main71075-50180-B0iUCF2#..B,C199410-199608

main71075-50220-A0iUCF2#..B,C199707-200008

sub71075-50310

main71075-50220-C0iUCF2#..B,C199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM2#

sub71075-50310

main71075-50220-G0iUCF2#199707-200008

sub71075-50310

main71075-50230-C0iUCF20199608-199707

sub71075-50150

main71075-50240-A0iUCF20..B199808-200008

sub71075-50220

sub71075-50310

main71075-50240-B0iUCF20199808-200008

sub71075-50220

sub71075-50310

main71075-50240-C0iUCF20199707-200008

BLACK,TRIM2#

sub71075-50220

sub71075-50310

main71075-50240-G0iUCF20199808-200008

sub71075-50220

sub71075-50310

main71075-50250-A0iUCF2#..B,C199707-200008

IVORY,TRIM0#

main71075-50250-B0iUCF2#..B,C199707-200008

BLUE GRAY,TRIM1#

main71075-50250-G0iUCF2#..B,C199707-200008

AGATE,TRIM6#

main71075-50280-B0iUCF20..A199707-200008

BLUE GRAY,TRIM1#

main71075-50280-G0iUCF20..A199707-200008

AGATE,TRIM6#

main71075-50310-B0iUCF2#199707-200008

sub71075-50220

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-50160-A0iUCF2#..B,C199410-199707

main71077-50160-G0iUCF2#..B,C199410-199707

main71077-50170-B0iUCF20..A199410-199707

BLUE GRAY,TRIM1#

main71077-50170-G0iUCF20..A199410-199707

AGATE,TRIM6#

main71077-50180-A0iUCF2#..B,C199410-199608

IVORY,TRIM0#

sub71077-50180

main71077-50180-B0iUCF2#..B,C199410-199608

BLUE GRAY,TRIM1#

sub71077-50180

main71077-50180-G0iUCF2#..B,C199410-199608

AGATE,TRIM6#

sub71077-50180

main71077-50181-A0iUCF2#..B,C199608-199707

IVORY,TRIM0#

main71077-50181-B0iUCF2#..B,C199608-199707

BLUE GRAY,TRIM1#

main71077-50181-G0iUCF2#..B,C199608-199707

AGATE,TRIM6#

main71077-50190-B0iUCF2#199410-199707

main71077-50230-A0iUCF2#..B,C199707-200008

sub71077-50320

main71077-50230-G0iUCF2#199707-200008

sub71077-50320

main71077-50240-A0iUCF20..B199808-200008

sub71077-50230

sub71077-50320

main71077-50240-B0iUCF20199808-200008

sub71077-50230

sub71077-50320

main71077-50240-C0iUCF20199707-200008

BLACK,TRIM2#

sub71077-50230

sub71077-50320

main71077-50240-G0iUCF20199808-200008

sub71077-50230

sub71077-50320

main71077-50250-C0iUCF20199608-199707

sub71077-50160

main71077-50260-A0iUCF2#..B,C199707-200008

IVORY,TRIM0#

main71077-50260-B0iUCF2#..B,C199707-200008

BLUE GRAY,TRIM1#

main71077-50260-G0iUCF2#..B,C199707-200008

AGATE,TRIM6#

main71077-50290-B0iUCF20..A199707-200008

BLUE GRAY,TRIM1#

main71077-50290-G0iUCF20..A199707-200008

AGATE,TRIM6#

main71077-50320-B0iUCF2#199707-200008

sub71077-50230

main71077-50370-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM2#

71281AHINGE, REAR SEAT CENTER ARMREST

main71281-50040iUCF2#199410

main71281-50050iUCF21199410-199707

main71281-50050iUCF21199410-199707

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-50180-A0iUCF2#..B,C199608-199707

***,IVORY,TRIM0#

main71460-50180-B0iUCF2#..B,C199608-199707

***,BLUE GRAY,TRIM1#

main71460-50180-G0iUCF2#..B,C199608-199707

***,AGATE,TRIM6#

main71460-50270-A0iUCF2#..B,C199410-199707

main71460-50270-G0iUCF2#..B,C199410-199707

main71460-50280-B0iUCF20..A199410-199707

***,BLUE GRAY,TRIM1#

main71460-50280-G0iUCF20..A199410-199707

***,AGATE,TRIM6#

main71460-50300-A0iUCF2#..B,C199410-199608

***,IVORY,TRIM0#

sub71460-50180

main71460-50300-B0iUCF2#..B,C199410-199608

***,BLUE GRAY,TRIM1#

sub71460-50180

main71460-50300-G0iUCF2#..B,C199410-199608

***,AGATE,TRIM6#

sub71460-50180

main71460-50310-B0iUCF2#..B,C199410-199707

main71460-50360-C0iUCF20199608-199707

main71460-50370-A0iUCF2#..B,C199707-200008

sub71460-50440

main71460-50370-C0iUCF2#..B,C199905-199908

***,10TH ANNIVERSARY EDITION *(A),BLACK,TRIM2#

sub71460-50440

main71460-50370-G0iUCF2#199707-200008

sub71460-50440

main71460-50410-A0iUCF2#..B,C199707-200008

***,IVORY,TRIM03

main71460-50410-A0iUCF21199707-200008

***,IVORY,TRIM0#

main71460-50410-B0iUCF2#..B,C199707-200008

***,BLUE GRAY,TRIM1#

main71460-50410-G0iUCF2#..B,C199707-200008

***,AGATE,TRIM6#

main71460-50420-B0iUCF20..A199707-200008

***,BLUE GRAY,TRIM1#

main71460-50420-G0iUCF20..A199707-200008

***,AGATE,TRIM6#

main71460-50430-A0iUCF20..B199808-200008

main71460-50430-B0iUCF20199808-200008

main71460-50430-C0iUCF20199707-200008

***,BLACK,TRIM2#

main71460-50430-G0iUCF20199808-200008

main71460-50440-B0iUCF2#199707-200008

sub71460-50370

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-50310-B0iUCF20..A199410-199608

***,BLUE GRAY,TRIM1#

main71480-50310-G0iUCF20..A199410-199608

***,AGATE,TRIM6#

main71480-50330-A0iUCF2#..B,C199608-199707

main71480-50330-G0iUCF2#199608-199707

main71480-50340-C0iUCF20199608-199707

main71480-50390-A0iUCF2#..B,C199608-199707

***,IVORY,TRIM0#

main71480-50390-B0iUCF2#..B,C199608-199707

***,BLUE GRAY,TRIM1#

main71480-50390-G0iUCF2#..B,C199608-199707

***,AGATE,TRIM6#

main71480-50400-A0iUCF2#..B,C199410-199608

main71480-50400-G0iUCF2#..B,C199410-199608

main71480-50420-B0iUCF2#199608-199707

main71480-50440-A0iUCF2#..B,C199410-199608

***,IVORY,TRIM0#

sub71480-50440

main71480-50440-B0iUCF2#..B,C199410-199608

***,BLUE GRAY,TRIM1#

sub71480-50440

main71480-50440-G0iUCF2#..B,C199410-199608

***,AGATE,TRIM6#

sub71480-50440

main71480-50450-B0iUCF2#..B,C199410-199608

main71480-50510-B0iUCF20..A199608-199707

***,BLUE GRAY,TRIM1#

main71480-50510-G0iUCF20..A199608-199707

***,AGATE,TRIM6#

main71480-50520-B0iUCF2#199707-200008

sub71480-50620

main71480-50590-A0iUCF2#..B,C199707-200008

***,IVORY,TRIM0#

main71480-50590-A0iUCF21199707-200008

***,IVORY,TRIM03

main71480-50590-B0iUCF2#..B,C199707-200008

***,BLUE GRAY,TRIM1#

main71480-50590-G0iUCF2#..B,C199707-200008

***,AGATE,TRIM6#

main71480-50600-B0iUCF20..A199707-200008

***,BLUE GRAY,TRIM1#

main71480-50600-G0iUCF20..A199707-200008

***,AGATE,TRIM6#

main71480-50610-A0iUCF20..B199808-200008

main71480-50610-B0iUCF20199808-200008

main71480-50610-C0iUCF20199707-200008

***,BLACK,TRIM2#

main71480-50610-G0iUCF20199808-200008

main71480-50620-A0iUCF2#..B,C199707-200008

sub71480-50520

main71480-50620-G0iUCF2#199707-200008

sub71480-50520

main71480-50660-C0iUCF20..B199905-199908

main71480-50670-C0iUCF21199905-199908

main71480-50680-A0iUCF21199905-199908

main71480-50690-A0iUCF20..B199905-199908

71611PAD, REAR SEAT CUSHION

main71611-50080iUCF2#199410-199707

main71611-50100iUCF2#199410-199707

main71611-50120iUCF2#199707

main71611-50130iUCF2#199707

71650SPRING ASSY, REAR SEAT CUSHION

main71650-50050iUCF2#199410

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71651-50070iUCF20..A199410-199707

main71651-50070iUCF20..A199608-199707

main71651-50090iUCF2#199410-199707

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71670-50060iUCF2#199410-199707

main71670-50060iUCF20..A199608-199707

main71670-50080iUCF2#199707

71931ASUPPORT, REAR SEAT HEADREST

main71930-32020-A0iUCF2#..B,C199410-199707

sub71930-32020

main71930-32020-A1iUCF2#..B,C199707-200008

sub71930-32020

main71930-32020-B2iUCF2#199410-200008

sub71930-32020

main71930-32020-B2iUCF20..A199608-199707

sub71930-32020

main71930-32020-C0iUCF20199608-200008

sub71930-32020

main71930-32020-C0iUCF20..A199608-199707

sub71930-32020

main71930-32020-C0iUCF21199905-199908

sub71930-32020

main71930-32020-G0iUCF2#199410-200008

sub71930-32020

main71930-32020-G0iUCF20..A199608-199707

sub71930-32020

main71931-32020-A0iUCF2#..B,C199410-199707

sub71931-32020

main71931-32020-A1iUCF2#..B,C199707-200008

sub71931-32020

main71931-32020-B2iUCF20..A199608-199707

sub71931-32020

main71931-32020-B2iUCF2#199410-200008

sub71931-32020

main71931-32020-C0iUCF21199905-199908

sub71931-32020

main71931-32020-C0iUCF20..A199608-199707

sub71931-32020

main71931-32020-C0iUCF20199608-200008

sub71931-32020

main71931-32020-G0iUCF2#199410-200008

sub71931-32020

main71931-32020-G0iUCF20..A199608-199707

sub71931-32020

main71990-50040-A0iUCF21199707-200008

IVORY,TRIM0#

main71990-50040-B0iUCF21199707-200008

BLUE GRAY,TRIM1#

main71990-50040-G0iUCF21199707-200008

AGATE,TRIM6#

71940AHEADREST ASSY, REAR SEAT

main71960-50010-A0iUCF20..B199707-200008

sub71960-50070

main71960-50010-B0iUCF20199707-199809

sub71960-50070

main71960-50010-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

sub71960-50070

main71960-50010-G0iUCF20199707-200008

sub71960-50070

main71960-50020-A0iUCF20..B199808-200008

sub71960-50010

sub71960-50070

main71960-50020-B0iUCF20199808-200008

sub71960-50010

sub71960-50070

main71960-50020-C0iUCF20199707-200008

sub71960-50010

sub71960-50070

main71960-50020-G0iUCF20199808-200008

sub71960-50010

sub71960-50070

main71960-50030-A0iUCF2#..B,C199707-200008

IVORY,TRIM0#

main71960-50030-B0iUCF2#..B,C199707-200008

BLUE GRAY,TRIM1#

main71960-50030-G0iUCF2#..B,C199707-200008

AGATE,TRIM6#

main71960-50040-B0iUCF21199707-200008

main71960-50060-B0iUCF20..A199707-200008

BLUE GRAY,TRIM1#

main71960-50060-G0iUCF20..A199707-200008

AGATE,TRIM6#

main71960-50070-A0iUCF21199707-200008

sub71960-50010

main71960-50070-B0iUCF2#199707-200008

sub71960-50010

main71960-50070-G0iUCF21199707-200008

sub71960-50010

main71960-50080-A0iUCF21199707-200008

main71960-50080-B0iUCF21199707-200008

main71960-50080-G0iUCF21199707-200008

71940BHEADREST ASSY, REAR SEAT, RH

main71940-50150-B0iUCF2#..B,C199410-199608

main71940-50151-B0iUCF2#..B,C199608-199707

main71940-50160-A0iUCF2#..B,C199410-199608

main71940-50160-G0iUCF2#..B,C199410-199608

main71940-50161-A0iUCF2#..B,C199608-199707

main71940-50161-G0iUCF2#199608-199707

main71940-50170-A0iUCF2#..B,C199410-199608

IVORY,TRIM0#

sub71940-50170

main71940-50170-B0iUCF2#..B,C199410-199608

BLUE GRAY,TRIM1#

sub71940-50170

main71940-50170-G0iUCF2#..B,C199410-199608

AGATE,TRIM6#

sub71940-50170

main71940-50171-A1iUCF2#..B,C199608-199707

IVORY,TRIM0#

main71940-50171-B1iUCF2#..B,C199608-199707

BLUE GRAY,TRIM1#

main71940-50171-G1iUCF2#..B,C199608-199707

AGATE,TRIM6#

main71940-50180-B0iUCF20..A199410-199608

BLUE GRAY,TRIM1#

main71940-50180-G0iUCF20..A199410-199608

AGATE,TRIM6#

main71940-50181-B0iUCF20..A199608-199707

BLUE GRAY,TRIM1#

main71940-50181-G0iUCF20..A199608-199707

AGATE,TRIM6#

main71940-50190-B0iUCF21199410-199608

main71940-50191-B0iUCF21199608-199707

main71940-50200-A0iUCF21199410-199608

main71940-50200-G0iUCF21199410-199608

main71940-50201-A0iUCF21199608-199707

main71940-50201-G0iUCF21199608-199707

main71940-50210-A0iUCF21199410-199608

sub71940-50210

main71940-50210-B0iUCF21199410-199608

sub71940-50210

main71940-50210-G0iUCF21199410-199608

sub71940-50210

main71940-50211-A1iUCF21199608-199707

main71940-50211-B1iUCF21199608-199707

main71940-50211-G1iUCF21199608-199707

main71940-50220-A0iUCF20..B199707-200008

sub71940-50300

main71940-50220-B0iUCF20199707-199809

sub71940-50300

main71940-50220-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

sub71940-50300

main71940-50220-G0iUCF20199707-200008

sub71940-50300

main71940-50231-C0iUCF20199608-199707

sub71940-50161

main71940-50240-A0iUCF20..B199808-200008

sub71940-50220

sub71940-50300

main71940-50240-B0iUCF20199808-200008

sub71940-50220

sub71940-50300

main71940-50240-C0iUCF20199707-200008

sub71940-50220

sub71940-50300

main71940-50240-G0iUCF20199808-200008

sub71940-50220

sub71940-50300

main71940-50250-A0iUCF2#..B,C199707-200008

IVORY,TRIM0#

main71940-50250-B0iUCF2#..B,C199707-200008

BLUE GRAY,TRIM1#

main71940-50250-G0iUCF2#..B,C199707-200008

AGATE,TRIM6#

main71940-50260-B0iUCF21199707-200008

main71940-50270-A0iUCF21199707-200008

sub71940-50260

main71940-50270-G0iUCF21199707-200008

sub71940-50260

main71940-50280-B0iUCF20..A199707-200008

main71940-50280-G0iUCF20..A199707-200008

main71940-50290-A0iUCF21199707-200008

main71940-50290-B0iUCF21199707-200008

main71940-50290-G0iUCF21199707-200008

main71940-50300-A0iUCF21199707-200008

sub71940-50220

main71940-50300-B0iUCF2#199707-200008

sub71940-50220

main71940-50300-G0iUCF21199707-200008

sub71940-50220

71950DHEADREST ASSY, REAR SEAT, LH

main71940-50150-B0iUCF2#..B,C199410-199608

main71940-50151-B0iUCF2#..B,C199608-199707

main71940-50160-A0iUCF2#..B,C199410-199608

main71940-50160-G0iUCF2#..B,C199410-199608

main71940-50161-A0iUCF2#..B,C199608-199707

main71940-50161-G0iUCF2#199608-199707

main71940-50170-A0iUCF2#..B,C199410-199608

IVORY,TRIM0#

sub71940-50170

main71940-50170-B0iUCF2#..B,C199410-199608

BLUE GRAY,TRIM1#

sub71940-50170

main71940-50170-G0iUCF2#..B,C199410-199608

AGATE,TRIM6#

sub71940-50170

main71940-50171-A1iUCF2#..B,C199608-199707

IVORY,TRIM0#

main71940-50171-B1iUCF2#..B,C199608-199707

BLUE GRAY,TRIM1#

main71940-50171-G1iUCF2#..B,C199608-199707

AGATE,TRIM6#

main71940-50180-B0iUCF20..A199410-199608

BLUE GRAY,TRIM1#

main71940-50180-G0iUCF20..A199410-199608

AGATE,TRIM6#

main71940-50181-B0iUCF20..A199608-199707

BLUE GRAY,TRIM1#

main71940-50181-G0iUCF20..A199608-199707

AGATE,TRIM6#

main71940-50220-A0iUCF20..B199707-200008

sub71940-50300

main71940-50220-B0iUCF20199707-199808

sub71940-50300

main71940-50220-G0iUCF20199707-200008

sub71940-50300

main71940-50231-C0iUCF20199608-199707

sub71940-50161

main71940-50240-A0iUCF20..B199808-200008

sub71940-50220

sub71940-50300

main71940-50240-B0iUCF20199808-200008

sub71940-50220

sub71940-50300

main71940-50240-C0iUCF20199707-200008

sub71940-50220

sub71940-50300

main71940-50240-G0iUCF20199808-200008

sub71940-50220

sub71940-50300

main71940-50250-A0iUCF2#..B,C199707-200008

IVORY,TRIM0#

main71940-50250-B0iUCF2#..B,C199707-200008

BLUE GRAY,TRIM1#

main71940-50250-G0iUCF2#..B,C199707-200008

AGATE,TRIM6#

main71940-50280-B0iUCF20..A199707-200008

BLUE GRAY,TRIM1#

main71940-50280-G0iUCF20..A199707-200008

AGATE,TRIM6#

main71940-50300-A0iUCF2#..B,C199707-200008

sub71940-50220

main71940-50300-B0iUCF21199707-200008

sub71940-50220

main71940-50300-G0iUCF21199707-200008

sub71940-50220

main71950-50040-B0iUCF21199410-199608

main71950-50041-B0iUCF21199608-199707

main71950-50050-A0iUCF21199410-199608

main71950-50050-G0iUCF21199410-199608

main71950-50051-A0iUCF21199608-199707

main71950-50051-G0iUCF21199608-199707

main71950-50060-A0iUCF21199410-199608

sub71950-50060

main71950-50060-B0iUCF21199410-199608

sub71950-50060

main71950-50060-G0iUCF21199410-199608

sub71950-50060

main71950-50061-A1iUCF21199608-199707

main71950-50061-B1iUCF21199608-199707

main71950-50061-G1iUCF21199608-199707

main71950-50070-B0iUCF21199707-200008

main71950-50080-A0iUCF21199707-200008

sub71950-50070

main71950-50080-G0iUCF21199707-200008

sub71950-50070

main71950-50090-A0iUCF21199707-200008

main71950-50090-B0iUCF21199707-200008

main71950-50090-G0iUCF21199707-200008

72693HOOK, REAR SEAT CUSHION LOCK

main72693-14050iUCF2#199410

72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST

main72805-50010-A0iUCF2#..B,C199410-199707

main72805-50010-G0iUCF2#..B,C199410-199707

main72805-50020-B0iUCF20..A199410-199707

BLUE GRAY,TRIM1#

main72805-50020-G0iUCF20..A199410-199707

AGATE,TRIM6#

main72805-50030-A0iUCF2#..B,C199410-199608

IVORY,TRIM0#

main72805-50030-B0iUCF2#..B,C199410-199608

BLUE GRAY,TRIM1#

main72805-50030-G0iUCF2#..B,C199410-199608

AGATE,TRIM6#

main72805-50031-A1iUCF2#..B,C199608-199707

IVORY,TRIM0#

main72805-50031-B1iUCF2#..B,C199608-199707

BLUE GRAY,TRIM1#

main72805-50031-G1iUCF2#..B,C199608-199707

AGATE,TRIM6#

main72805-50040-B0iUCF2#199410-199707

main72805-50050-A0iUCF21199410-199707

main72805-50050-G0iUCF21199410-199707

main72805-50060-A0iUCF21199410-199608

main72805-50060-B0iUCF21199410-199608

main72805-50060-G0iUCF21199410-199608

main72805-50061-A1iUCF21199608-199707

main72805-50061-B1iUCF21199608-199707

main72805-50061-G1iUCF21199608-199707

main72805-50070-B0iUCF21199410-199707

main72805-50080-C0iUCF20199608-199707

sub72805-50010

main72805-50090-A0iUCF2#..B,C199707-200008

IVORY,TRIM0#

main72805-50090-B0iUCF2#..B,C199707-200008

BLUE GRAY,TRIM1#

main72805-50090-G0iUCF2#..B,C199707-200008

AGATE,TRIM6#

main72805-50100-A0iUCF20..B199808-200008

sub72805-50110

main72805-50100-B0iUCF20199808-200008

sub72805-50110

main72805-50100-C0iUCF20199707-200008

sub72805-50110

main72805-50100-G0iUCF20199808-200008

sub72805-50110

main72805-50110-A0iUCF2#..B,C199707-200008

main72805-50110-B0iUCF2#199707-200008

main72805-50110-G0iUCF2#199707-200008

main72805-50120-A0iUCF21199707-200008

sub72805-50130

main72805-50120-G0iUCF21199707-200008

sub72805-50130

main72805-50130-B0iUCF21199707-200008

sub72805-50120

main72805-50140-B0iUCF20..A199707-200008

BLUE GRAY,TRIM1#

main72805-50140-G0iUCF20..A199707-200008

AGATE,TRIM6#

main72805-50160-B0iUCF2#199707-200008

main72805-50170-A0iUCF21199707-200008

main72805-50170-B0iUCF21199707-200008

main72805-50170-G0iUCF21199707-200008

main72805-50180-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM2#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-50240-B0iUCF21199410-199608

main72830-50241-B0iUCF21199608-199707

main72830-50250-A0iUCF20..B199808-200008

sub72830-50430

main72830-50250-B0iUCF20199808-200008

sub72830-50430

main72830-50250-C0iUCF20199707-200008

BLACK,TRIM2#

sub72830-50430

main72830-50250-G0iUCF20199808-200008

sub72830-50430

main72830-50260-C0iUCF20199608-199707

sub72830-50280

main72830-50280-A0iUCF2#..B,C199410-199707

main72830-50280-G0iUCF2#..B,C199410-199707

main72830-50290-B0iUCF20..A199410-199707

BLUE GRAY,TRIM1#

main72830-50290-G0iUCF20..A199410-199707

AGATE,TRIM6#

main72830-50300-A0iUCF2#..B,C199410-199608

IVORY,TRIM0#

sub72830-50300

main72830-50300-B0iUCF2#..B,C199410-199608

BLUE GRAY,TRIM1#

sub72830-50300

main72830-50300-G0iUCF2#..B,C199410-199608

AGATE,TRIM6#

sub72830-50300

main72830-50301-A1iUCF2#..B,C199608-199707

IVORY,TRIM0#

main72830-50301-B1iUCF2#..B,C199608-199707

BLUE GRAY,TRIM1#

main72830-50301-G1iUCF2#..B,C199608-199707

AGATE,TRIM6#

main72830-50340-A0iUCF21199410-199608

main72830-50340-G0iUCF21199410-199608

main72830-50341-A0iUCF21199608-199707

main72830-50341-G0iUCF21199608-199707

main72830-50350-A0iUCF21199410-199608

sub72830-50350

main72830-50350-B0iUCF21199410-199608

sub72830-50350

main72830-50350-G0iUCF21199410-199608

sub72830-50350

main72830-50351-A1iUCF21199608-199707

main72830-50351-B1iUCF21199608-199707

main72830-50351-G1iUCF21199608-199707

main72830-50360-B0iUCF2#199410-199707

main72830-50390-A0iUCF2#..B,C199707-200008

IVORY,TRIM0#

main72830-50390-B0iUCF2#..B,C199707-200008

BLUE GRAY,TRIM1#

main72830-50390-G0iUCF2#..B,C199707-200008

AGATE,TRIM6#

main72830-50400-B0iUCF21199707-200008

sub72830-50410

main72830-50410-A0iUCF21199707-200008

sub72830-50400

main72830-50410-G0iUCF21199707-200008

sub72830-50400

main72830-50420-B0iUCF20..A199707-199808

BLUE GRAY,TRIM1#

main72830-50420-G0iUCF20..A199707-200008

AGATE,TRIM6#

main72830-50430-A0iUCF2#..B,C199707-200008

main72830-50430-B0iUCF20199707-199808

main72830-50430-G0iUCF2#199707-200008

main72830-50440-B0iUCF2#..B,C199808-200008

BLUE GRAY,TRIM1#

main72830-50440-B0iUCF21199707-200008

main72830-50450-A0iUCF21199707-200008

main72830-50450-B0iUCF21199707-200008

main72830-50450-G0iUCF21199707-200008

main72830-50490-C0iUCF20..B199905-199908

sub72830-50500

main72830-50500-C0iUCF21199905-199908

main72830-50510-A0iUCF21199905-199908

main72830-50510-C0iUCF21199905-199908

main72830-50520-A0iUCF20..B199905-199908

sub72830-50510

main72830-50520-C0iUCF20..B199905-199908

sub72830-50510

72868COVER, CENTER ARMREST HINGE, RH

main72868-50050-A0iUCF21199707-200008

main72868-50050-A0iUCF21199410-199707

IVORY,TRIM0#

main72868-50050-B0iUCF21199410-199707

main72868-50050-B0iUCF21199410-200008

main72868-50050-G0iUCF21199707-200008

main72868-50050-G0iUCF21199410-199707

AGATE,TRIM6#

main72868-50070-A0iUCF21199707-200008

main72868-50070-A0iUCF20..B199707-200008

main72868-50070-B0iUCF2#199410-200008

BLUE GRAY,TRIM1#

main72868-50070-C0iUCF20199608-199707

main72868-50070-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

main72868-50070-C0iUCF20199707-200008

main72868-50070-C0iUCF20199707-200008

BLACK,TRIM2#

main72868-50070-G0iUCF21199707-200008

main72868-50070-G0iUCF21199707-200008

72869COVER, CENTER ARMREST HINGE, LH

main72869-50040-A0iUCF21199707-200008

main72869-50040-A0iUCF21199410-199707

IVORY,TRIM0#

main72869-50040-B0iUCF21199410-199707

BLUE GRAY,TRIM1#

main72869-50040-B0iUCF21199707-200008

main72869-50040-G0iUCF21199410-199707

main72869-50040-G0iUCF21199410-200008

main72869-50050-A0iUCF21199707-200008

main72869-50050-A0iUCF21199707-200008

main72869-50050-B0iUCF20199707-200008

main72869-50050-B0iUCF20199707-200008

main72869-50050-C0iUCF20199608-199707

main72869-50050-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

main72869-50050-C0iUCF20199707-200008

main72869-50050-G0iUCF2#199410-200008

AGATE,TRIM6#

9011908A94

main90119-08A94

9016140023

main90161-40023

9017604015

main90176-04015

9017906129

main90179-06129

9033325001

main90333-25001

9038606035

main90386-06035

9164180822

main91641-80822

9326016025

main93260-16025

9331514012

main93315-14012

27 parts on this diagram · 4 diagrams in section
