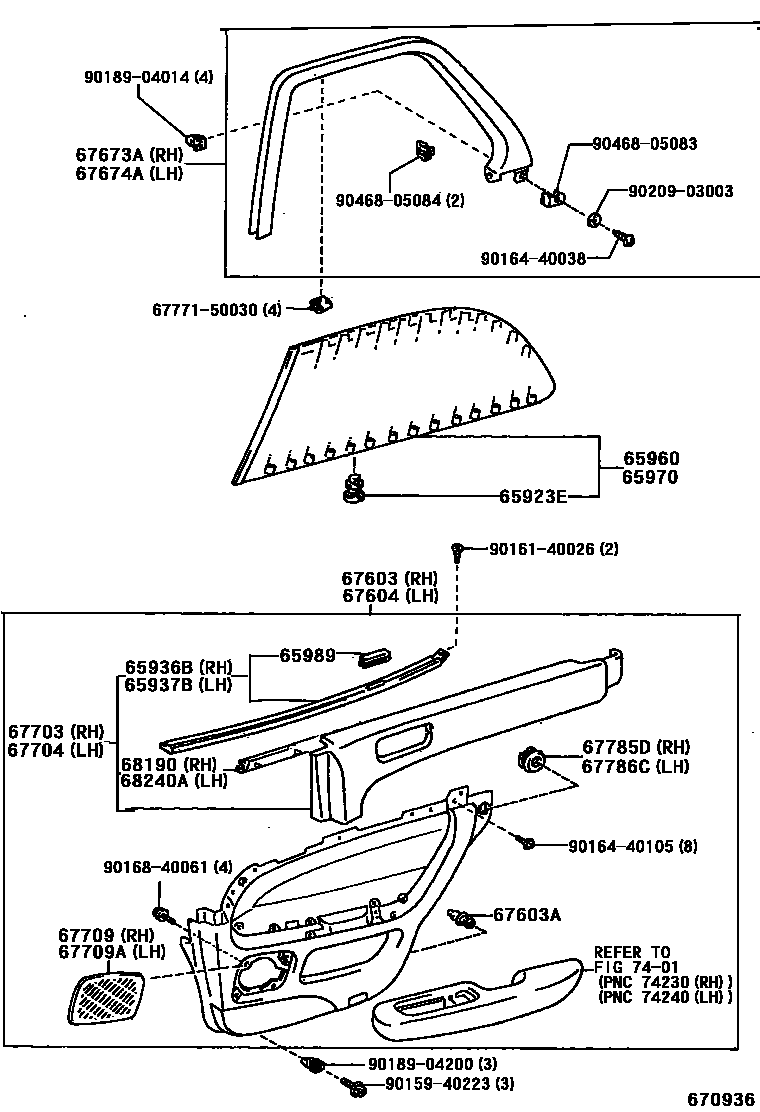

REAR DOOR PANEL & GLASS

0001 1 0002 1

65923EHOOK, CURTAIN

main65923-50010iUCF21199410

65936BRAIL, CURTAIN, NO.1

main65936-50020-B0iUCF21199410-200008

sub65936-50020

main65936-50020-E0iUCF21199410-199707

OAK,TRIM0#

sub65936-50020

main65936-50020-E1iUCF21199707-200008

sub65936-50020

main65936-50020-G0iUCF21199410-200008

sub65936-50020

65937BRAIL, CURTAIN, NO.2

main65937-50020-B0iUCF21199410-200008

sub65937-50020

main65937-50020-E0iUCF21199410-199707

OAK,TRIM0#

sub65937-50020

main65937-50020-E1iUCF21199707-200008

sub65937-50020

main65937-50020-G0iUCF21199410-200008

sub65937-50020

65960CURTAIN ASSY, SIDE, REAR RH

main65960-50040iUCF21199410

65970CURTAIN ASSY, SIDE, REAR LH

main65970-50040iUCF21199410

65989CAP, CURTAIN RAIL

main65989-50020-B1iUCF21199707-200008

sub65989-50020

main65989-50020-B1iUCF21199410-200008

DK.BLUE GRAY,TRIM1#

sub65989-50020

main65989-50020-E0iUCF21199410-199707

OAK,TRIM0#

sub65989-50020

main65989-50020-E1iUCF21199707-200008

sub65989-50020

main65989-50020-E1iUCF21199707-200008

SANDAL WOOD,TRIM0#

sub65989-50020

main65989-50020-G0iUCF21199410-200008

DK.AGATE,TRIM6#

sub65989-50020

main65989-50020-G0iUCF21199707-200008

sub65989-50020

main65989-50020-G1iUCF21199707-200008

sub65989-50020

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-50110-B0iUCF20..A199707-200008

BLUE GRAY,TRIM1#

main67630-50110-G0iUCF20..A199707-200008

AGATE,TRIM6#

main67630-50190-A0iUCF2#..B,C199707-200008

IVORY,TRIM0#

main67630-50190-B0iUCF2#..B,C199707-200008

BLUE GRAY,TRIM1#

main67630-50190-G0iUCF2#..B,C199707-200008

AGATE,TRIM6#

main67630-50230-B0iUCF2#199410-199707

main67630-50240-B0iUCF21199410-199707

main67630-50250-C0iUCF20199608-199707

sub67630-50310

main67630-50260-B0iUCF20..A199410-199707

BLUE GRAY,TRIM1#

sub67630-50110

main67630-50260-G0iUCF20..A199410-199707

AGATE,TRIM6#

sub67630-50110

main67630-50270-A0iUCF2#..B,C199410-199608

IVORY,TRIM0#

sub67630-50271

main67630-50270-B0iUCF2#..B,C199410-199608

BLUE GRAY,TRIM1#

sub67630-50271

main67630-50270-G0iUCF2#..B,C199410-199608

AGATE,TRIM6#

sub67630-50271

main67630-50271-A0iUCF2#..B,C199608-199707

IVORY,TRIM0#

sub67630-50190

main67630-50271-B0iUCF2#..B,C199608-199707

BLUE GRAY,TRIM1#

sub67630-50190

main67630-50271-G0iUCF2#..B,C199608-199707

AGATE,TRIM6#

sub67630-50190

main67630-50280-A0iUCF2#..B,C199410-199707

main67630-50280-G0iUCF2#..B,C199410-199707

main67630-50290-A0iUCF21199410-199608

sub67630-50291

main67630-50290-B0iUCF21199410-199608

sub67630-50291

main67630-50290-G0iUCF21199410-199608

sub67630-50291

main67630-50291-A0iUCF21199608-199707

main67630-50291-B0iUCF21199608-199707

main67630-50291-G0iUCF21199608-199707

main67630-50300-A0iUCF21199410-199707

main67630-50300-G0iUCF21199410-199707

main67630-50330-B0iUCF2#199707-200008

sub67630-50340

sub67630-50380

main67630-50330-C0iUCF2#..B,C199905-199908

sub67630-50340

sub67630-50380

main67630-50340-A0iUCF2#..B,C199707-200008

sub67630-50330

main67630-50340-G0iUCF2#199707-200008

sub67630-50330

main67630-50350-A0iUCF21199707-200008

main67630-50350-B0iUCF21199707-200008

main67630-50350-G0iUCF21199707-200008

main67630-50360-B0iUCF21199707-200008

sub67630-50370

main67630-50370-A0iUCF21199707-200008

sub67630-50360

main67630-50370-G0iUCF21199707-200008

sub67630-50360

main67630-50380-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

main67630-50400-A0iUCF20..B199808-200008

sub67630-50380

main67630-50400-B0iUCF20199808-200008

sub67630-50380

main67630-50400-C0iUCF20199707-200008

BLACK,TRIM2#

sub67630-50380

main67630-50400-G0iUCF20199808-200008

sub67630-50380

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12050iUCF2#199410-199608

main67771-28020iUCF2#199608

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-50110-B0iUCF20..A199707-200008

BLUE GRAY,TRIM1#

main67640-50110-G0iUCF20..A199707-200008

AGATE,TRIM6#

main67640-50190-A0iUCF2#..B,C199707-200008

IVORY,TRIM0#

main67640-50190-B0iUCF2#..B,C199707-200008

BLUE GRAY,TRIM1#

main67640-50190-G0iUCF2#..B,C199707-200008

AGATE,TRIM6#

main67640-50230-B0iUCF2#199410-199707

main67640-50240-B0iUCF21199410-199707

main67640-50250-C0iUCF20199608-199707

sub67640-50310

main67640-50260-B0iUCF20..A199410-199707

BLUE GRAY,TRIM1#

main67640-50260-G0iUCF20..A199410-199707

AGATE,TRIM6#

main67640-50270-A0iUCF2#..B,C199410-199608

IVORY,TRIM0#

sub67640-50271

main67640-50270-B0iUCF2#..B,C199410-199608

BLUE GRAY,TRIM1#

sub67640-50271

main67640-50270-G0iUCF2#..B,C199410-199608

AGATE,TRIM6#

sub67640-50271

main67640-50271-A0iUCF2#..B,C199608-199707

IVORY,TRIM0#

sub67640-50190

main67640-50271-B0iUCF2#..B,C199608-199707

BLUE GRAY,TRIM1#

sub67640-50190

main67640-50271-G0iUCF2#..B,C199608-199707

AGATE,TRIM6#

sub67640-50190

main67640-50280-A0iUCF2#..B,C199410-199707

main67640-50280-G0iUCF2#..B,C199410-199707

main67640-50290-A0iUCF21199410-199608

sub67640-50291

main67640-50290-B0iUCF21199410-199608

sub67640-50291

main67640-50290-G0iUCF21199410-199608

sub67640-50291

main67640-50291-A0iUCF21199608-199707

main67640-50291-B0iUCF21199608-199707

main67640-50291-G0iUCF21199608-199707

main67640-50300-A0iUCF21199410-199707

main67640-50300-G0iUCF21199410-199707

main67640-50330-B0iUCF2#199707-200008

sub67640-50340

sub67640-50380

main67640-50330-C0iUCF2#..B,C199905-199908

sub67640-50340

sub67640-50380

main67640-50340-A0iUCF2#..B,C199707-200008

sub67640-50330

main67640-50340-G0iUCF2#199707-200008

sub67640-50330

main67640-50350-A0iUCF21199707-200008

main67640-50350-B0iUCF21199707-200008

main67640-50350-G0iUCF21199707-200008

main67640-50360-B0iUCF21199707-200008

sub67640-50370

main67640-50370-A0iUCF21199707-200008

sub67640-50360

main67640-50370-G0iUCF21199707-200008

sub67640-50360

main67640-50380-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

main67640-50400-A0iUCF20..B199808-200008

sub67640-50380

main67640-50400-B0iUCF20199808-200008

sub67640-50380

main67640-50400-C0iUCF20199707-200008

BLACK,TRIM2#

sub67640-50380

main67640-50400-G0iUCF20199808-200008

sub67640-50380

67673AGARNISH, REAR DOOR FRAME, RH

main67673-50030-B0iUCF2#199410-200008

DK.BLUE GRAY,TRIM1#

sub67673-50030

main67673-50030-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

sub67673-50030

main67673-50030-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM2#

sub67673-50030

main67673-50030-C0iUCF20199410-200008

BLACK,TRIM2#

sub67673-50030

main67673-50030-E0iUCF2#..B,C199410-199707

OAK,TRIM0#

sub67673-50030

main67673-50030-E1iUCF2#..B,C199707-200008

SANDAL WOOD,TRIM0#

sub67673-50030

main67673-50030-G0iUCF2#199410-200008

DK.AGATE,TRIM6#

sub67673-50030

main67673-50040-B0iUCF21199410-200008

sub67673-50040

main67673-50040-C0iUCF21199905-199908

sub67673-50040

main67673-50040-C0iUCF21199905-199908

sub67673-50040

main67673-50040-E0iUCF21199410-199707

sub67673-50040

main67673-50040-E1iUCF21199707-200008

sub67673-50040

main67673-50040-G0iUCF21199410-200008

sub67673-50040

67674AGARNISH, REAR DOOR FRAME, LH

main67674-50030-B0iUCF2#199410-200008

DK.BLUE GRAY,TRIM1#

sub67674-50030

main67674-50030-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM2#

sub67674-50030

main67674-50030-C0iUCF2#..B,C199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

sub67674-50030

main67674-50030-C0iUCF20199410-200008

BLACK,TRIM2#

sub67674-50030

main67674-50030-E0iUCF2#..B,C199410-199707

OAK,TRIM0#

sub67674-50030

main67674-50030-E1iUCF2#..B,C199707-200008

SANDAL WOOD,TRIM0#

sub67674-50030

main67674-50030-G0iUCF2#199410-200008

DK.AGATE,TRIM6#

sub67674-50030

main67674-50040-B0iUCF21199410-200008

sub67674-50040

main67674-50040-C0iUCF2#..B,C199905-199908

sub67674-50040

main67674-50040-C0iUCF21199905-199908

sub67674-50040

main67674-50040-E0iUCF21199410-199707

sub67674-50040

main67674-50040-E1iUCF21199707-200008

sub67674-50040

main67674-50040-G0iUCF21199410-200008

sub67674-50040

67703COVER SUB-ASSY, REAR DOOR TRIM, RH

main67703-50010-B0iUCF2#199410-200008

DK.BLUE GRAY,TRIM1#

main67703-50010-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

main67703-50010-C0iUCF20199608-200008

main67703-50010-E0iUCF2#..B,C199410-199707

OAK,TRIM0#

main67703-50010-E1iUCF2#..B,C199707-200008

SANDAL WOOD,TRIM0#

main67703-50010-G0iUCF2#199410-200008

DK.AGATE,TRIM6#

main67703-50020-B0iUCF21199410-199707

main67703-50020-B0iUCF21199707-200008

main67703-50020-E0iUCF21199410-199707

main67703-50020-E1iUCF21199707-200008

main67703-50020-G0iUCF21199707-200008

main67703-50020-G0iUCF21199410-199707

67704COVER SUB-ASSY, REAR DOOR TRIM, LH

main67704-50010-B0iUCF2#199410-200008

DK.BLUE GRAY,TRIM1#

main67704-50010-C0iUCF20199608-200008

main67704-50010-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

main67704-50010-E0iUCF2#..B,C199410-199707

OAK,TRIM0#

main67704-50010-E1iUCF2#..B,C199707-200008

SANDAL WOOD,TRIM0#

main67704-50010-G0iUCF2#199410-200008

DK.AGATE,TRIM6#

main67704-50020-B0iUCF21199707-200008

main67704-50020-B0iUCF21199410-199707

main67704-50020-E0iUCF21199410-199707

main67704-50020-E1iUCF21199707-200008

main67704-50020-G0iUCF21199410-199707

main67704-50020-G0iUCF21199707-200008

67709GRILLE SUB-ASSY, DOOR SPEAKER, RH

main67609-50020-A0iUCF2#..B,C199410-199707

IVORY,TRIM0#

main67609-50020-A1iUCF2#..B,C199707-200008

IVORY,TRIM0#

main67609-50020-B0iUCF2#199410-200008

BLUE GRAY,TRIM1#

main67609-50020-C0iUCF20199608-200008

BLACK,TRIM2#

main67609-50020-G0iUCF2#199410-200008

AGATE,TRIM6#

67709AGRILLE SUB-ASSY, DOOR SPEAKER, LH

main67709-50020-A0iUCF2#..B,C199410-199707

IVORY,TRIM0#

main67709-50020-A1iUCF2#..B,C199707-200008

IVORY,TRIM0#

main67709-50020-B0iUCF2#199410-200008

BLUE GRAY,TRIM1#

main67709-50020-C0iUCF20199608-200008

BLACK,TRIM2#

main67709-50020-G0iUCF2#199410-200008

AGATE,TRIM6#

67785DCOVER, REAR DOOR TRIM, UPPER RH

main67785-50010-A0iUCF2#..B,C199410-199707

IVORY,TRIM0#

sub67785-50010

main67785-50010-A0iUCF2#..B,C199410-199707

sub67785-50010

main67785-50010-A1iUCF2#..B,C199707-200008

sub67785-50010

main67785-50010-A1iUCF2#..B,C199707-200008

IVORY,TRIM0#

sub67785-50010

main67785-50010-B0iUCF2#199410-200008

BLUE GRAY,TRIM1#

sub67785-50010

main67785-50010-B0iUCF2#199410-200008

sub67785-50010

main67785-50010-C0iUCF20199608-200008

BLACK,TRIM2#

sub67785-50010

main67785-50010-C0iUCF20199608-200008

sub67785-50010

main67785-50010-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

sub67785-50010

main67785-50010-G0iUCF2#..B,C199410-200008

sub67785-50010

main67785-50010-G0iUCF2#199410-200008

AGATE,TRIM6#

sub67785-50010

67786CCOVER, REAR DOOR TRIM, UPPER LH

main67786-50010-A0iUCF2#..B,C199410-199707

IVORY,TRIM0#

sub67786-50010

main67786-50010-A0iUCF2#..B,C199410-199707

sub67786-50010

main67786-50010-A1iUCF2#..B,C199707-200008

IVORY,TRIM0#

sub67786-50010

main67786-50010-A1iUCF2#..B,C199707-200008

sub67786-50010

main67786-50010-B0iUCF2#199410-200008

BLUE GRAY,TRIM1#

sub67786-50010

main67786-50010-B0iUCF2#..B,C199410-200008

sub67786-50010

main67786-50010-C0iUCF21199905-199908

10TH ANNIVERSARY EDITION *(A),BLACK,TRIM27

sub67786-50010

main67786-50010-C0iUCF20199608-200008

BLACK,TRIM2#

sub67786-50010

main67786-50010-C0iUCF20199608-200008

sub67786-50010

main67786-50010-G0iUCF2#199410-200008

AGATE,TRIM6#

sub67786-50010

main67786-50010-G0iUCF2#199410-200008

sub67786-50010

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-50020iUCF2#199410-199703

sub68190-50021

main68190-50021iUCF2#199703

68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH

main68240-50020iUCF2#199410-199703

sub68240-50021

main68240-50021iUCF2#199703

7401

6777150030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-50030

9015940223

main90159-40223

9016140026

main90161-40026

9016440038

main90164-40038

9016440105

main90164-40105

9016840061

main90168-40061

9018904014

main90189-04014

9018904200

main90189-04200

9020903003

main90209-03003

9046805083

main90468-05083

9046805084

main90468-05084

31 parts on this diagram · 2 diagrams in section
