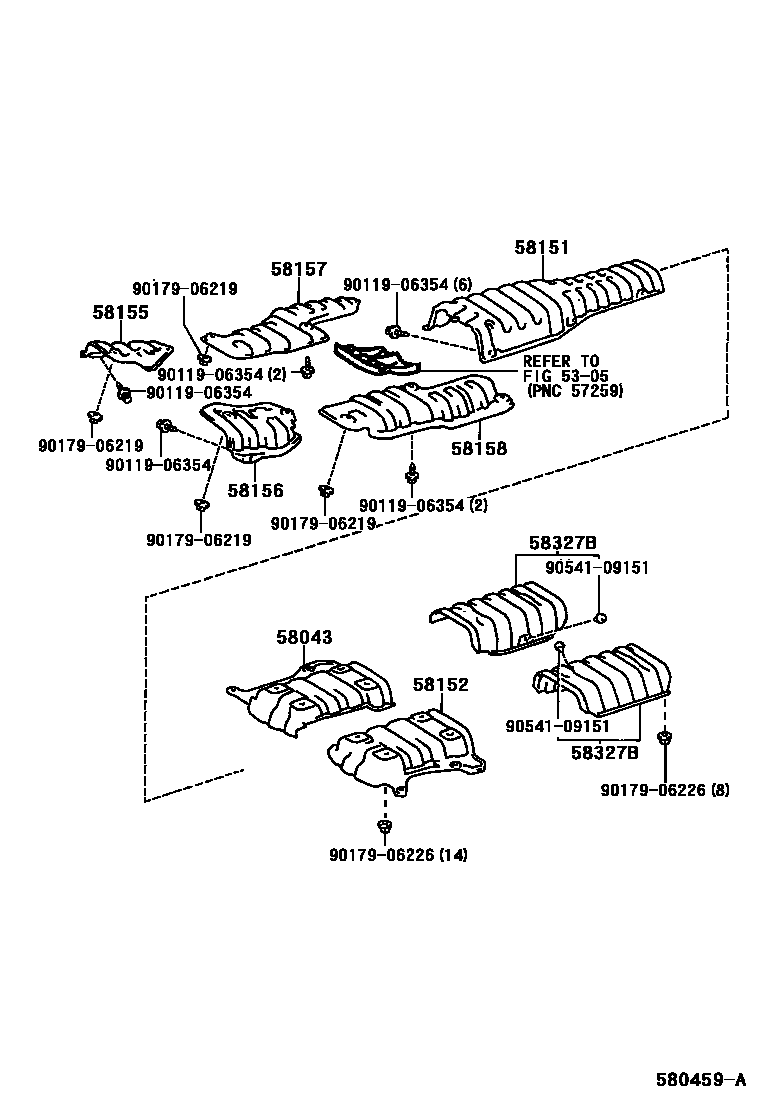

FLOOR INSULATOR

5305

58043INSULATOR SUB-ASSY, MAIN MUFFLER HEAT, REAR

main58043-50010iUCF2#199410

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-50010iUCF2#199410

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58044-50010iUCF2#199410

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-50020iUCF2#199410

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-50040iUCF2#199410-199704

sub58156-50041

main58156-50041iUCF2#199704

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-50020iUCF2#199410

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-50020iUCF2#199410

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-50020iUCF2#199410

9011906354

main90119-06354

9017906219

main90179-06219

9017906226

main90179-06226

9054109151

main90541-09151

13 parts on this diagram · 1 diagram in section
