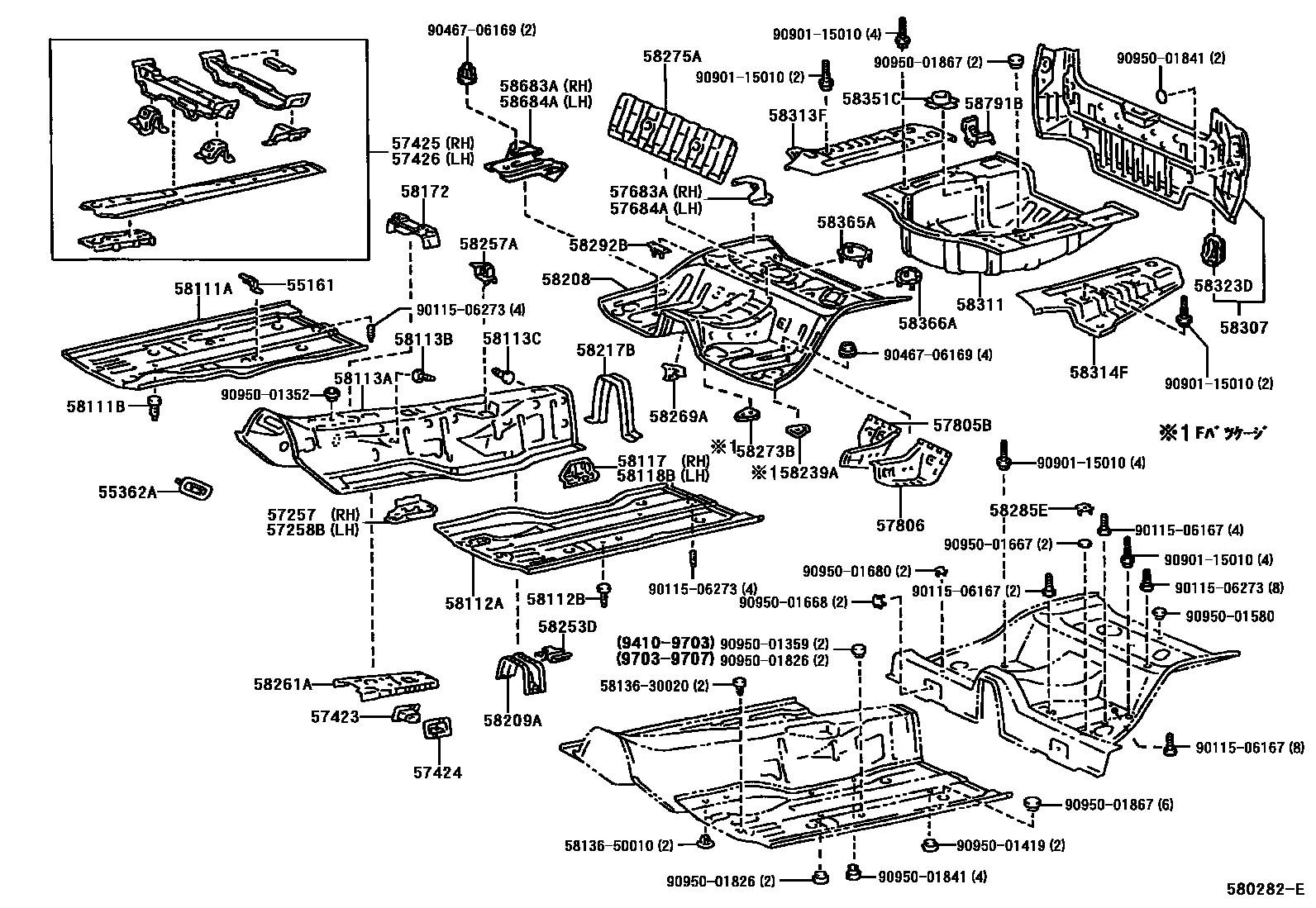

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55161BRACKET, HEATER MOUNTING

main55161-50020iUCF2#199410

55362ABRACKET, PARKING BRAKE MOUNTING

main55362-50011iUCF2#199410

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-50020iUCF2#199410

57258BBRACKET, ENGINE REAR MOUNTING MEMBER, LH

main57258-50020iUCF2#199410

57423BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-50010iUCF2#199410

57424BRACKET, FRONT FLOOR REINFORCEMENT, LH

main57424-50010iUCF2#199410

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-50900iUCF2#199410

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-50900iUCF2#199410

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-50020iUCF2#199410

57684ABRACKET, FUEL TANK MOUNTING, NO.2

main57684-50020iUCF2#199410

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-50020iUCF2#199410

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-50020iUCF2#199410

58111APAN, FRONT FLOOR, RH

main58111-50902iUCF2#199410

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90115-06166iUCF2#199410

58112APANEL, FRONT FLOOR, LH

main58112-50902iUCF2#199410

58112BBOLT, WELD(FOR FRONT FLOOR PAN, LH)

main90115-06166iUCF2#199410

58113APANEL, FRONT FLOOR, CENTER

main58113-50904iUCF2#199410-199707

sub58113-50906

main58113-50906iUCF2#199707

58113BBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-06166iUCF2#199410

58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-06167iUCF2#..B,C199410-199707

main90115-06167iUCF2#199410-199707

58117REINFORCEMENT, FRONT FLOOR SIDE, NO.1

main58117-50010iUCF2#199410

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-50010iUCF2#199410

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-50010iUCF2#199707

58208PAN, CENTER FLOOR

main58211-50050iUCF2#199410

main58211-50080iUCF21199410

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-50020iUCF2#199410

58217BPLATE, FRONT FLOOR

main58217-50010iUCF2#199410

58239APLATE, BELT ANCHOR NUT

main58239-50020iUCF21199410

58253DBRACKET, PARKING BRAKE CABLE

main58253-50010iUCF2#199410

58257ACLAMP, PARKING BRAKE CABLE, NO.2

main58257-50010iUCF2#199410

58261ACOVER, TRANSMISSION

main58261-50020iUCF2#199410

58269ABRACKET, PARKING BRAKE CABLE GUIDE, NO.3

main58269-50010iUCF2#199410

58273BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.5

main58273-50020iUCF21199410

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-50010iUCF2#199410

58285ECOVER, CENTER FLOOR HOLE

main58285-50010iUCF2#199410

58292BREINFORCEMENT, FUEL FILTER MOUNTING

main58292-50020iUCF2#199410

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-50020iUCF2#199410-199707

main58307-50030iUCF2#199707

58311PAN, REAR FLOOR

main58311-50020iUCF2#199410

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-50020iUCF2#199410

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-50020iUCF2#199410

58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT

main58323-50020iUCF2#199410-199707

sub58323-50022

sub58324-50020

58351CBRACKET, SPARE WHEEL CLAMP

main58351-50010iUCF2#199410

58365ABRACKET, FUEL TANK SUPPORT, RH

main58365-50010iUCF2#199410

58366ABRACKET, FUEL TANK SUPPORT, LH

main58366-50010iUCF2#199410

58683APANEL, CENTER FLOOR SILENCER, RH

main58683-50010iUCF2#199410

58684APANEL, CENTER FLOOR SILENCER, LH

main58684-50010iUCF2#199410

58791BCARRIER, JACK

main58791-50030iUCF2#199410

5813630020COVER, FRONT FLOOR HOLE

main58136-30020

5813650010COVER, FRONT FLOOR HOLE

main58136-50010

9011506167

main90115-06167

9011506273

main90115-06273

9046706169

main90467-06169

9090115010

main90901-15010

9095001352

main90950-01352

9095001359

main90950-01359

9095001419

main90950-01419

9095001580

main90950-01580

9095001667

main90950-01667

9095001668

main90950-01668

9095001680

main90950-01680

9095001826

main90950-01826

9095001841

main90950-01841

9095001867

main90950-01867

61 parts on this diagram · 2 diagrams in section
