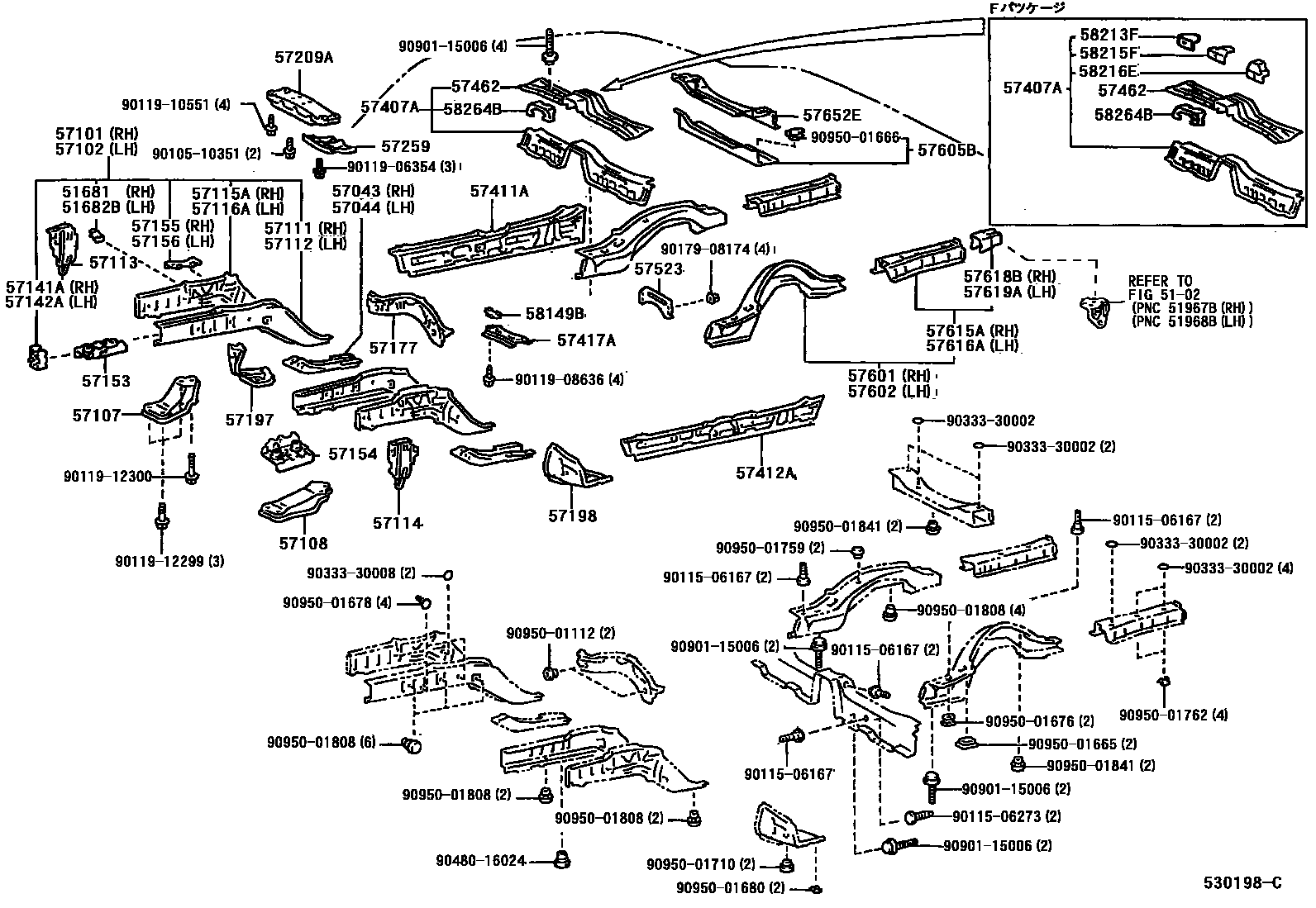

FLOOR SIDE MEMBER

5102

51681BRACKET, FLEXIBLE HOSE

main51681-50030iUCF2#199410

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-50030iUCF2#199410

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-50020iUCF2#199410-199604

main57043-50021iUCF2#199604-199705

main57043-50030iUCF2#199705

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-50020iUCF2#199410-199604

main57044-50021iUCF2#199604-199705

main57044-50030iUCF2#199705

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-50910iUCF20199410-199604

main57101-50911iUCF21199410-199604

main57101-50918iUCF20199604-199704

sub90950-01356

main57101-50919iUCF21199604-199707

main57101-50922iUCF20199704-199707

main57101-50926iUCF20199707

main57101-50927iUCF21199707

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-50908iUCF20199410-199604

main57102-50909iUCF21199410-199604

main57102-50914iUCF20199604-199704

sub90950-01356

main57102-50915iUCF21199604-199707

main57102-50917iUCF20199704-199707

main57102-50920iUCF20199707

main57102-50921iUCF21199707

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-50020iUCF2#199410

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-50020iUCF2#199410

57111MEMBER, FRONT SIDE, RH

main57111-50080iUCF21199410-199707

main57111-50081iUCF21199707

main57111-50090iUCF20199410-199707

main57111-50091iUCF20199707

57112MEMBER, FRONT SIDE, LH

main57112-50060iUCF2#199410-199707

main57112-50061iUCF2#199707

57113EXTENSION, FRONT SIDE MEMBER, RH

main57016-50020iUCF2#199410

57114EXTENSION, FRONT SIDE MEMBER, LH

main57017-50020iUCF2#199410-199706

main57017-50021iUCF2#199706-199808

main57017-50022iUCF2#199808

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-50030iUCF21199410-199511

main57115-50031iUCF21199511-199603

sub90950-01356

main57115-50032iUCF21199604

main57115-50040iUCF20199410-199511

main57115-50041iUCF20199511-199603

sub90950-01356

main57115-50042iUCF20199604-199704

main57115-50043iUCF20199704

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-50030iUCF21199410-199511

main57116-50031iUCF21199511-199603

sub90950-01356

main57116-50032iUCF21199604-199704

main57116-50040iUCF20199410-199511

main57116-50041iUCF20199511-199603

sub90950-01356

main57116-50042iUCF20199604-199704

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-50010iUCF2#199410-199707

main57141-50020iUCF2#199707

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-50010iUCF2#199410-199707

main57142-50020iUCF2#199707

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-50020iUCF2#199707

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-50020iUCF2#199707

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-50010iUCF2#199410

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-50010iUCF2#199410

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57177-50040iUCF2#199410-199701

main57177-50041iUCF2#199701

57197BOX, TORQUE, FRONT RH

main57197-50020iUCF2#199410

57198BOX, TORQUE, FRONT LH

main57198-50020iUCF2#199410

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57255-50011iUCF2#199410-199707

main57255-50012iUCF2#199707

57259REINFORCEMENT, ENGINE REAR SUPPORT MEMBER

main57259-50010iUCF2#199707

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-50900iUCF2#199410-200008

main57407-50901iUCF21199410-200008

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-50900iUCF2#199410-199603

main57401-50901iUCF2#199603-200008

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-50900iUCF2#199410-199603

main57402-50901iUCF2#199603-200008

57417AREINFORCEMENT, FRONT FLOOR UNDER

main57417-50020iUCF2#199410-199707

main57417-50030iUCF2#199707

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57462-50020iUCF2#199410

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-50020iUCF2#199410

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-50900iUCF2#199410-199706

main57601-50903iUCF2#199706-199707

main57601-50905iUCF2#199707

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-50900iUCF2#199410-199706

main57602-50903iUCF2#199706-199707

main57602-50905iUCF2#199707

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-50900iUCF2#199410-200008

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-50903iUCF2#199410-199707

main57615-50905iUCF2#199707-200008

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-50902iUCF2#199410-199707

main57616-50905iUCF2#199707-200008

57618BREINFORCEMENT, REAR BUMPER RETAINER, RH

main57618-50010iUCF2#199410-199707

main57618-50020iUCF2#199707-200008

57619AREINFORCEMENT, REAR BUMPER RETAINER, LH

main57619-50010iUCF2#199410-199707

main57619-50020iUCF2#199707

57652EMEMBER, REAR FLOOR CROSS, NO.1

main57652-50020iUCF2#199410-199707

sub57652-50021

sub90333-30002

main57652-50030iUCF2#199707

58149BPLATE, FRONT FLOOR REINFORCE NUT

main58149-50010×2iUCF2#199410

58213FREINFORCEMENT, CENTER FLOOR PANEL

main58213-50010×2iUCF21199410-199707

58215FREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH

main58215-50010iUCF21199410-199707

58216EREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH

main58216-50010iUCF21199410-199707

58264BBRACKET, PARKING BRAKE CABLE GUIDE

main58264-50020iUCF2#199410

9010510351

main90105-10351

9011506167

main90115-06167

9011506273

main90115-06273

9011906354

main90119-06354

9011908636

main90119-08636

9011910551

main90119-10551

9011912299

main90119-12299

9011912300

main90119-12300

9017908174

main90179-08174

9033330002

main90333-30002

9033330008

main90333-30008

9048016024

main90480-16024

9090115006

main90901-15006

9095001112

main90950-01112

9095001665

main90950-01665

9095001666

main90950-01666

9095001676

main90950-01676

9095001678

main90950-01678

9095001680

main90950-01680

9095001710

main90950-01710

9095001759

main90950-01759

9095001762

main90950-01762

9095001808

main90950-01808

9095001841

main90950-01841

69 parts on this diagram · 1 diagram in section
