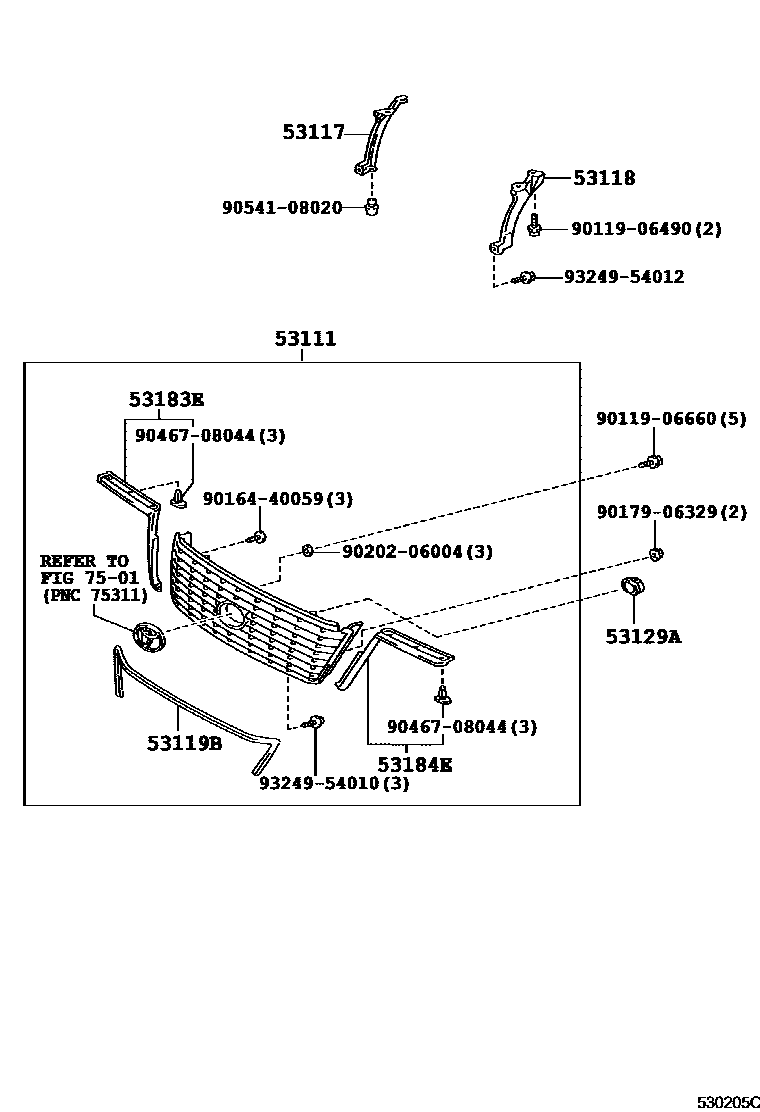

RADIATOR GRILLE

53111GRILLE, RADIATOR

main53100-50080iUCF2#199410-199707

main53100-50110iUCF2#199707

53117BRACKET, RADIATOR GRILLE SUPPORT, RH

main53117-50030iUCF2#199410-199707

53118BRACKET, RADIATOR GRILLE SUPPORT, LH

main53118-50020iUCF2#199410-199707

53119BPROTECTOR, RADIATOR GRILLE

main53119-50030iUCF2#199707

53129APIPE, RADIATOR GRILLE

main53129-50010iUCF2#199410

53183ESEAL, HEADLAMP COVER, RH

main53183-50020iUCF2#199410-199707

53184ESEAL, HEADLAMP COVER, LH

main53184-50020iUCF2#199410-199707

7501

9011906490

main90119-06490

9011906660

main90119-06660

9016440059

main90164-40059

9017906329

main90179-06329

9020206004

main90202-06004

9046708044

main90467-08044

9054108020

main90541-08020

9324954010

main93249-54010

9324954012

main93249-54012

17 parts on this diagram · 1 diagram in section
