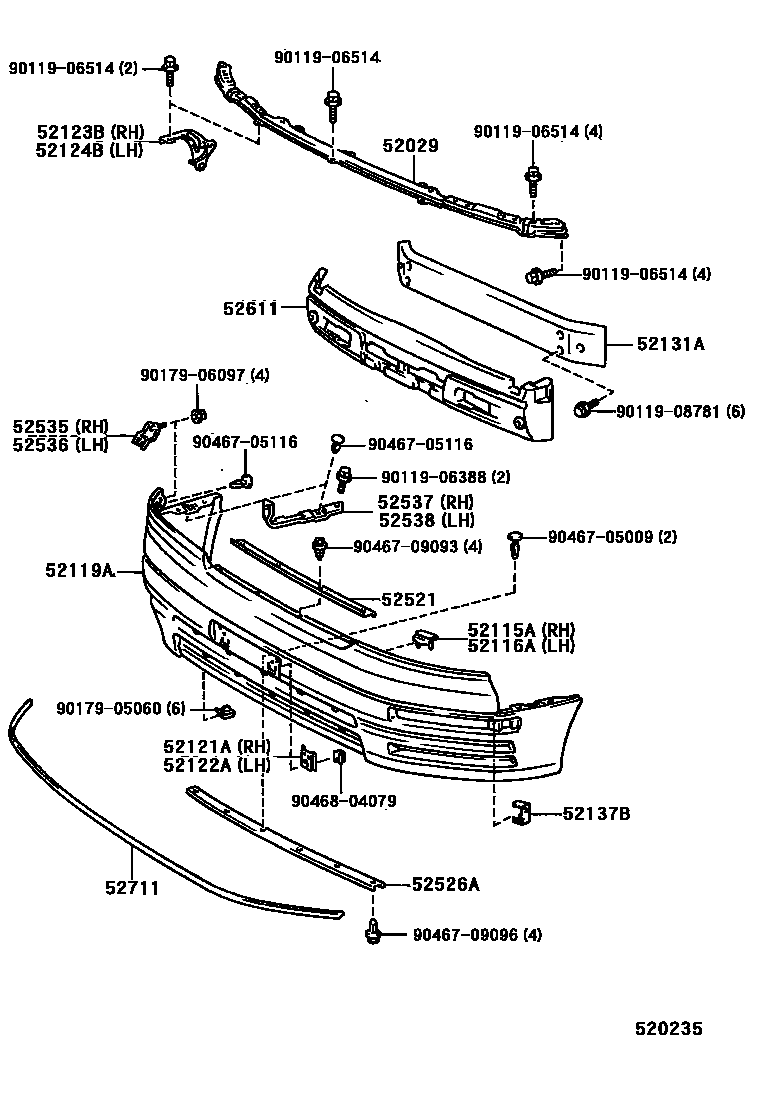

FRONT BUMPER & BUMPER STAY

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-50020i199410-199707

main52029-50030i199707

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-14130i199410

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-14130i199410

52119ACOVER, FRONT BUMPER

main52119-50130-A0i199410-199707

SUPER WHITE PM,051

sub52119-50911

main52119-50130-B0i199410-199707

SILVER ME,199

sub52119-50911

main52119-50130-C0i199410-199707

BLACK,202

sub52119-50911

main52119-50130-E0i199608-199707

BEIGE ME,4M9

sub52119-50911

main52119-50130-E1i199410-199707

GRAYISH BROWN ME,4N1

sub52119-50911

main52119-50130-G0i199410-199707

GRAYISH GREEN M.M,6N0

sub52119-50911

main52119-50130-G1i199410-199707

DK.GREEN MC.P.I.O,6N9

sub52119-50911

main52119-50130-J1i199410-199707

DK.BLUE MC.,8L1

sub52119-50911

main52119-50130-K0i199410-199608

DK.ROSE MC.,929

sub52119-50911

main52119-50200-A0i199707-200008

SU.WHITE/SILVER M.,051

sub52119-50918

main52119-50200-A2i199905-199908

10TH ANNIVERSARY EDITION *(A),WHITE PEARL MC.,K15

sub52119-50918

main52119-50200-B1i199707-200008

SILVER ME./GRAY,199

sub52119-50918

main52119-50200-B3i199905-199908

10TH ANNIVERSARY EDITION *(A),GRAY ME.,KD2

sub52119-50918

main52119-50200-C0i199707-200008

BLACK/D.GRAY M.,202

sub52119-50918

main52119-50200-D0i199707-200008

ROSE RED/DK.ROSE RED,3M9

sub52119-50918

main52119-50200-G2i199707-200008

DK.GREEN/DK.GREEN,6N9

sub52119-50918

main52119-50200-G3i199707-200008

DK.GREEN/DK.GREEN,6Q7

sub52119-50918

main52119-50200-G4i199707-199908

LT.GREEN/GREEN,6P7

sub52119-50918

main52119-50200-G5i199905-199908

10TH ANNIVERSARY EDITION *(A),DK.GRAY ME.,KD3

sub52119-50918

main52119-50200-J0i199707-200008

DK.BLUE/MD.BLUE,8L4

sub52119-50918

main52119-50200-K0i199707-199908

AMETHYST ME./ROSE,941

sub52119-50918

main52119-50210-A0i199707-200008

sub52119-5A948

main52119-50210-A2i199905-199908

sub52119-5A948

main52119-50210-B1i199707-200008

sub52119-5A948

main52119-50210-B3i199905-199908

sub52119-5A948

main52119-50210-C0i199707-200008

sub52119-5A948

main52119-50210-D0i199707-200008

sub52119-5A948

main52119-50210-G2i199707-200008

sub52119-5A948

main52119-50210-G3i199707-200008

sub52119-5A948

main52119-50210-G4i199707-199908

sub52119-5A948

main52119-50210-G5i199905-199908

sub52119-5A948

main52119-50210-J0i199707-200008

sub52119-5A948

main52119-50210-K0i199707-199908

sub52119-5A948

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-14090i199410

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52122-14010i199410

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

main52123-50030i199410-199707

main52123-50040i199707

52124BPLATE, FRONT BUMPER REINFORCEMENT, LH

main52124-50010i199410-199707

main52124-50020i199707

52131AREINFORCEMENT, FRONT BUMPER

main52131-50020i199410-199707

main52131-50030i199707

52137BPLATE, FRONT BUMPER BRACKET, NO.1

main52137-50020i199410-199707

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-50020i199410

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-50021i199410-199707

main52526-50030i199707

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-50020i199410-199707

main52535-50030i199707

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-50020i199410-199707

main52536-50030i199707

52537RETAINER, FRONT BUMPER END, RH

main52537-50020i199410-199707

main52537-50030i199707

52538RETAINER, FRONT BUMPER END, LH

main52538-50010i199410-199707

main52538-50020i199707

52611ABSORBER, FRONT BUMPER ENERGY

main52611-50020i199410-199707

main52611-50030i199707

52711MOULDING, FRONT BUMPER

main52711-50020i199410-199707

main52711-50030i199707

9011906388

main90119-06388

9011906514

main90119-06514

9011908781

main90119-08781

9017905060

main90179-05060

9017906097

main90179-06097

9046705009

main90467-05009

9046705116

main90467-05116

9046709093

main90467-09093

9046709096

main90467-09096

9046804079

main90468-04079

28 parts on this diagram · 2 diagrams in section
