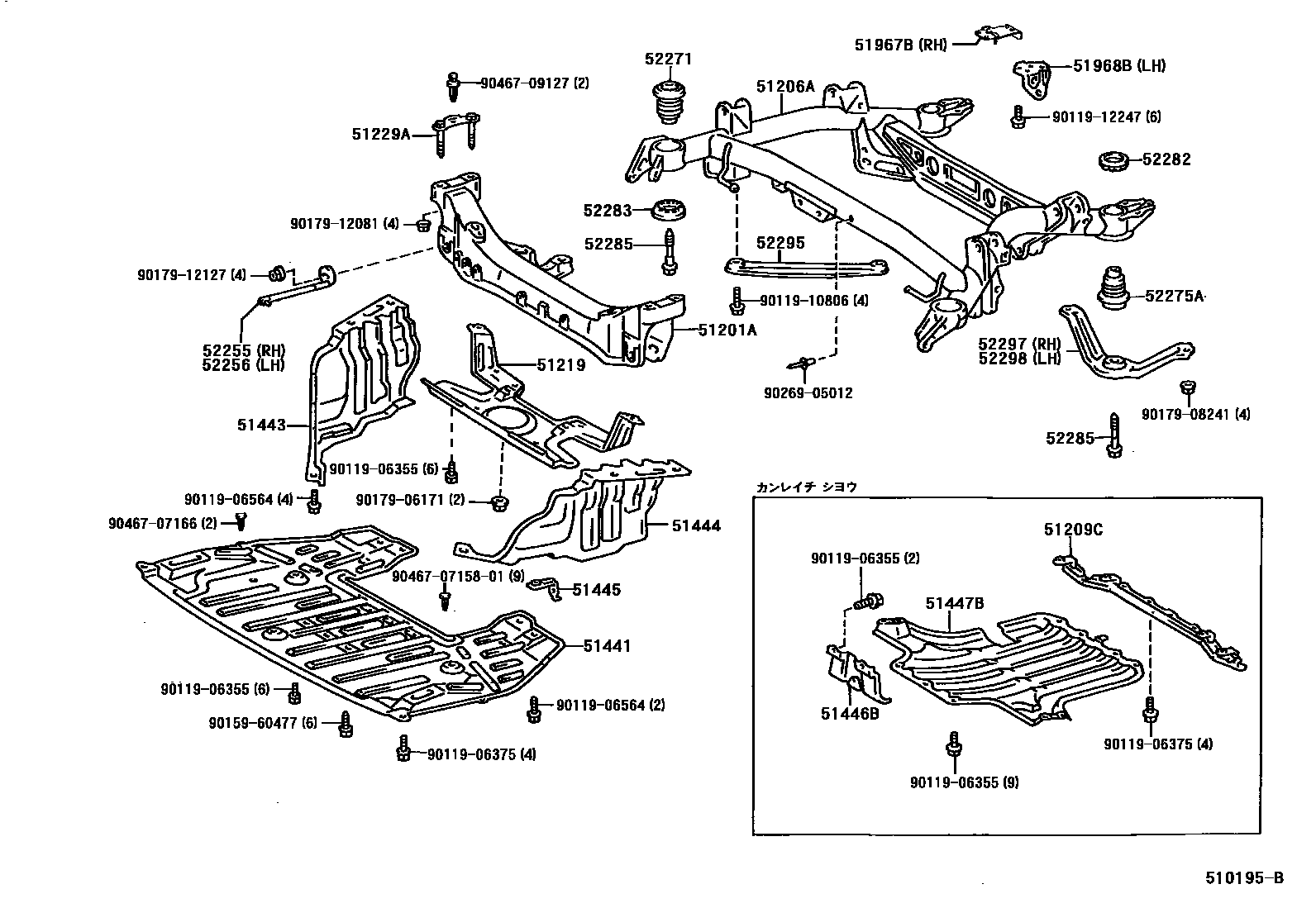

SUSPENSION CROSSMEMBER & UNDER COVER

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51211-50040iUCF2#199410

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-40010iUCF2#199707

sub51206-40011

main51206-50030iUCF2#199410-199707

sub51206-50031

51209CCROSSMEMBER SUB-ASSY, FRAME, REAR

main51209-50020iUCF2#199410-199707

sub51209-50030

main51209-50030iUCF2#199707

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-50010iUCF2#199707

51229ABOLT, FRONT SUSPENSION MEMBER MOUNTING

main51229-50020iUCF2#199410

51441COVER, ENGINE UNDER, NO.1

main51440-50010iUCF2#199707

main51441-50030iUCF2#199410-199707

51443COVER, ENGINE UNDER, REAR RH

main51443-50020iUCF2#199410

51444COVER, ENGINE UNDER, REAR LH

main51444-50020iUCF2#199410

51445BRACKET, ENGINE UNDER COVER

main51445-50010iUCF2#199410-199707

51446BBRACKET, ENGINE UNDER COVER, NO.2

main51446-50030iUCF2#199410-199707

main51446-50030iUCF2#199707

51447BPROTECTOR, OIL PAN

main51447-50011iUCF2#199410-199707

main51447-50011iUCF2#199707

51967BHOOK, TRANSPORT, REAR RH

main51967-50030iUCF2#199410-199504

main51967-50040iUCF2#199504

51968BHOOK, TRANSPORT, REAR LH

main51968-50020iUCF2#199410

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-50010iUCF2#199410

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-50010iUCF2#199410

52271CUSHION, REAR SUSPENSION MEMBER

main52271-50030iUCF2#199410

main52271-50040iUCF20199608

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-50030iUCF2#199410

main52275-50040iUCF20199608

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-50030iUCF2#199410

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-50030iUCF2#199410

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30020iUCF2#199410-199508

sub52285-30021

main52285-30021iUCF2#199508

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50010iUCF2#199410

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-50020iUCF2#199410

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-50020iUCF2#199410

9011906355

main90119-06355

9011906375

main90119-06375

9011906564

main90119-06564

9011910806

main90119-10806

9011912247

main90119-12247

9015960477

main90159-60477

9017906171

main90179-06171

9017908241

main90179-08241

9017912081

main90179-12081

9017912127

main90179-12127

9026905012

main90269-05012

904670715801

main90467-0715801

9046707166

main90467-07166

9046709127

main90467-09127

37 parts on this diagram · 1 diagram in section
