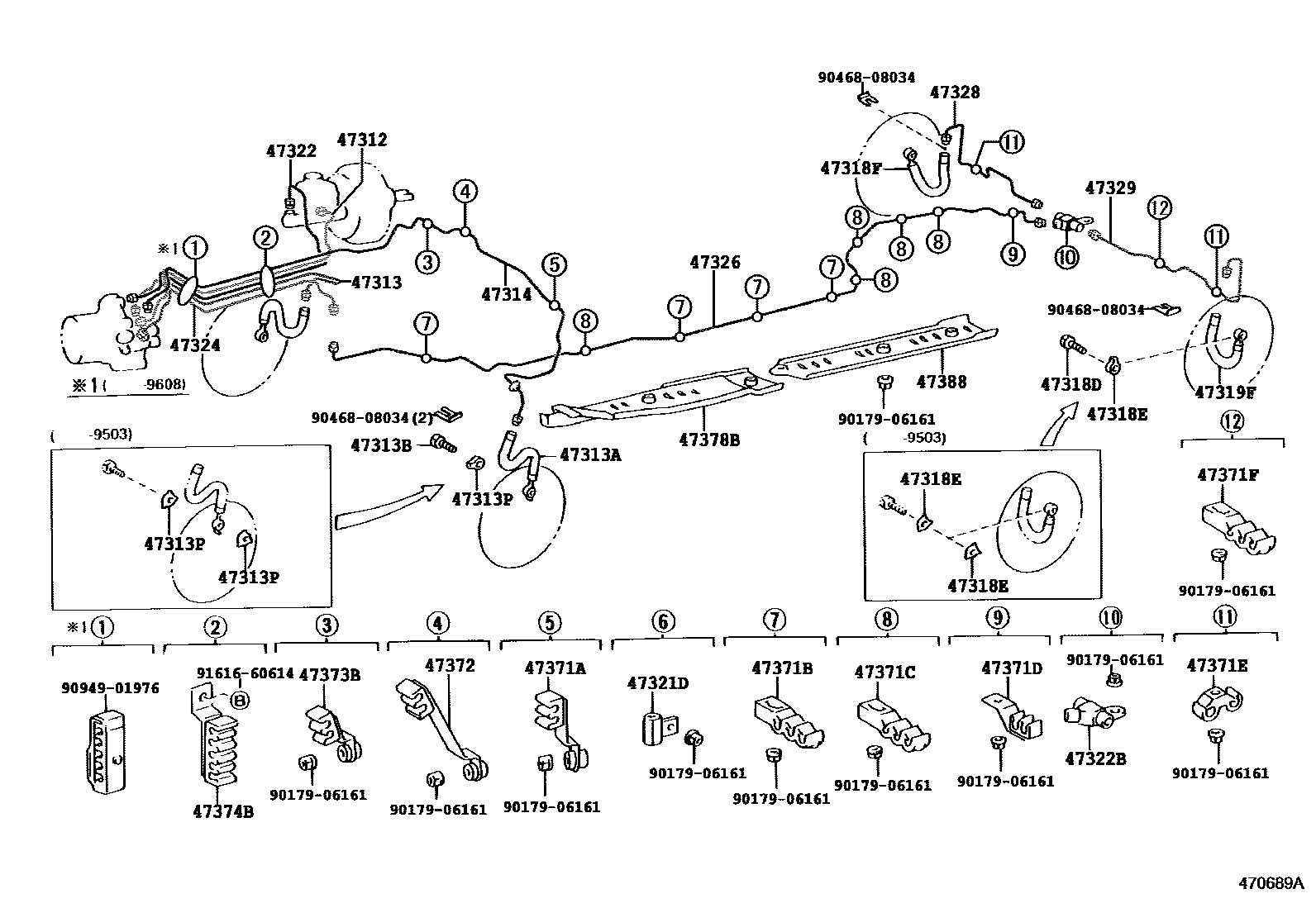

BRAKE TUBE & CLAMP
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47322BWAY, NO.2(FOR REAR BRAKE TUBE)
47324TUBE, REAR BRAKE, NO.4
47326TUBE, REAR BRAKE, NO.6
47328TUBE, REAR BRAKE, NO.8
47329TUBE, REAR BRAKE, NO.9
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47371FCLAMP, BRAKE TUBE, NO.10
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47378BPROTECTOR, TUBE, UPPER
47388PROTECTOR, BRAKE TUBE, LOWER
9017906161
main90179-06161
9046808034
main90468-08034
9094901976
main90949-01976
9161660614
main91616-60614
32 parts on this diagram · 10 diagrams in section
