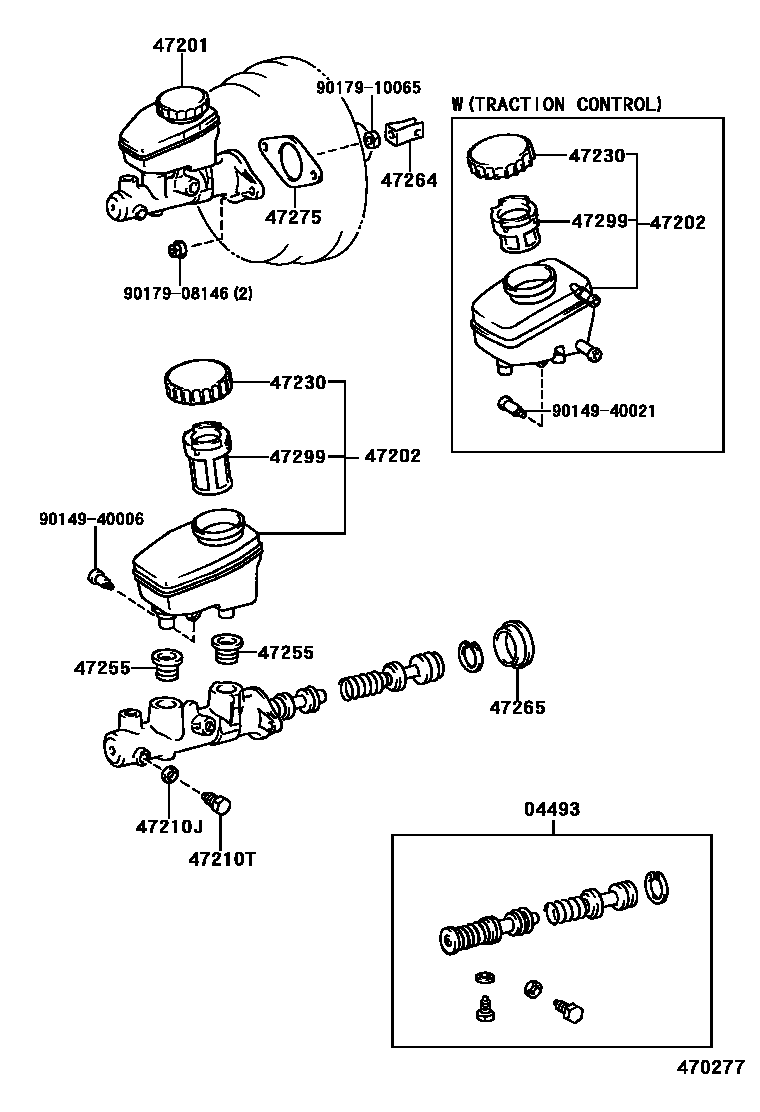

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-50030iUCF2#199410-199608

main04493-50040iUCF2#199608-199707

main04493-50050iUCF2#199707

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-50170iUCF20..A199410-199608

main47201-50180iUCF20..A199410-199608

main47201-50210iUCF20..A199608-199707

main47201-50220iUCF20..A199608-199707

main47201-50240iUCF2#199707

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-50070iUCF20..A199410-199608

sub47220-50110

main47220-50080iUCF2#..B,C199410-199707

main47220-50110iUCF20..A199608-199707

main47220-50130iUCF2#199707

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iUCF20..A199410-199707

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iUCF20..A199410-199707

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iUCF2#199410

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iUCF2#199410

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-28010iUCF2#199410

47265BOOT, MASTER CYLINDER

main47265-20050iUCF2#199608

47275GASKET, BRAKE MASTER CYLINDER

main47275-12020iUCF2#199410

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-17010iUCF20..A199410-199608

sub47299-20060

main47299-20060iUCF20..A199608-199707

main47299-20060iUCF2#..B,C;UCF20..A..5FC199608

main47299-24010iUCF20..A199410-199707

9014940006

main90149-40006

9014940021

main90149-40021

9017908146

main90179-08146

9017910065

main90179-10065

15 parts on this diagram · 2 diagrams in section
