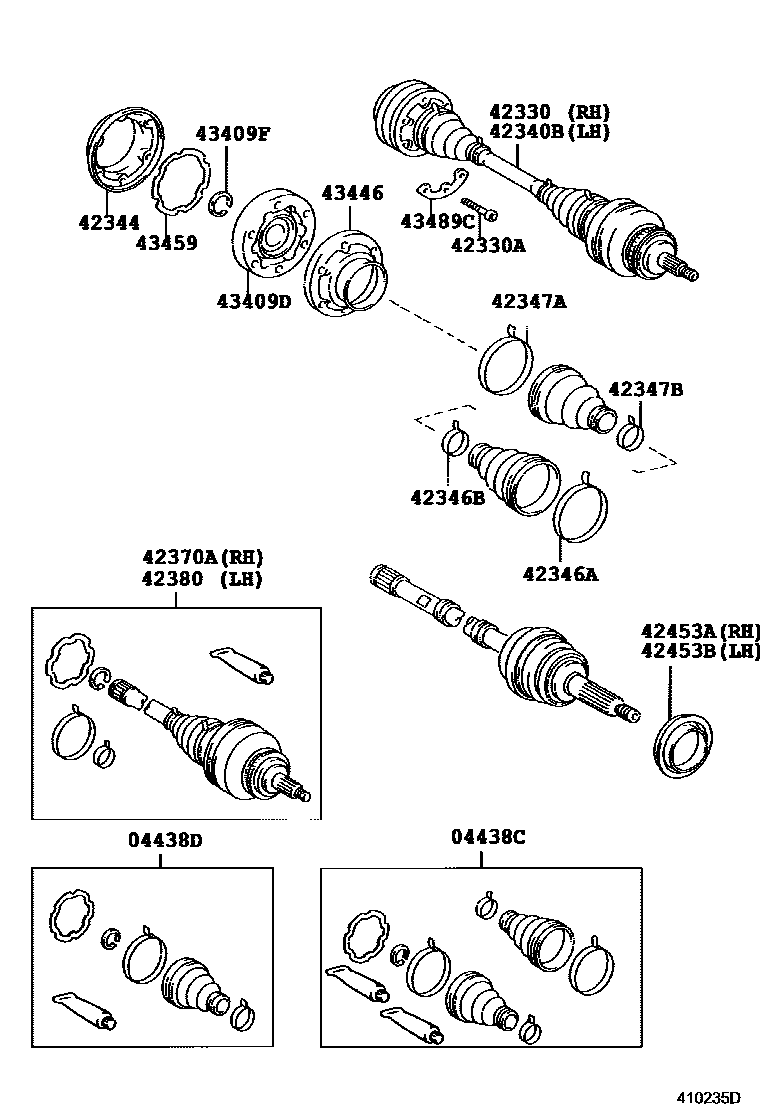

REAR AXLE SHAFT & HUB
42330SHAFT ASSY, REAR DRIVE, RH
42330ABOLT(FOR REAR DRIVE SHAFT)
42340BSHAFT ASSY, REAR DRIVE, LH
42344COVER, REAR AXLE INBOARD JOINT END
42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42453ADEFLECTOR, REAR WHEEL BEARING DUST, NO.3 RH
42453BDEFLECTOR, REAR WHEEL BEARING DUST, NO.3 LH
43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE
43409FRING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)
43446COVER, REAR AXLE INBOARD JOINT
43459GASKET, REAR AXLE INBOARD JOINT END COVER
43489CWASHER, REAR DRIVE SHAFT
19 parts on this diagram · 3 diagrams in section
