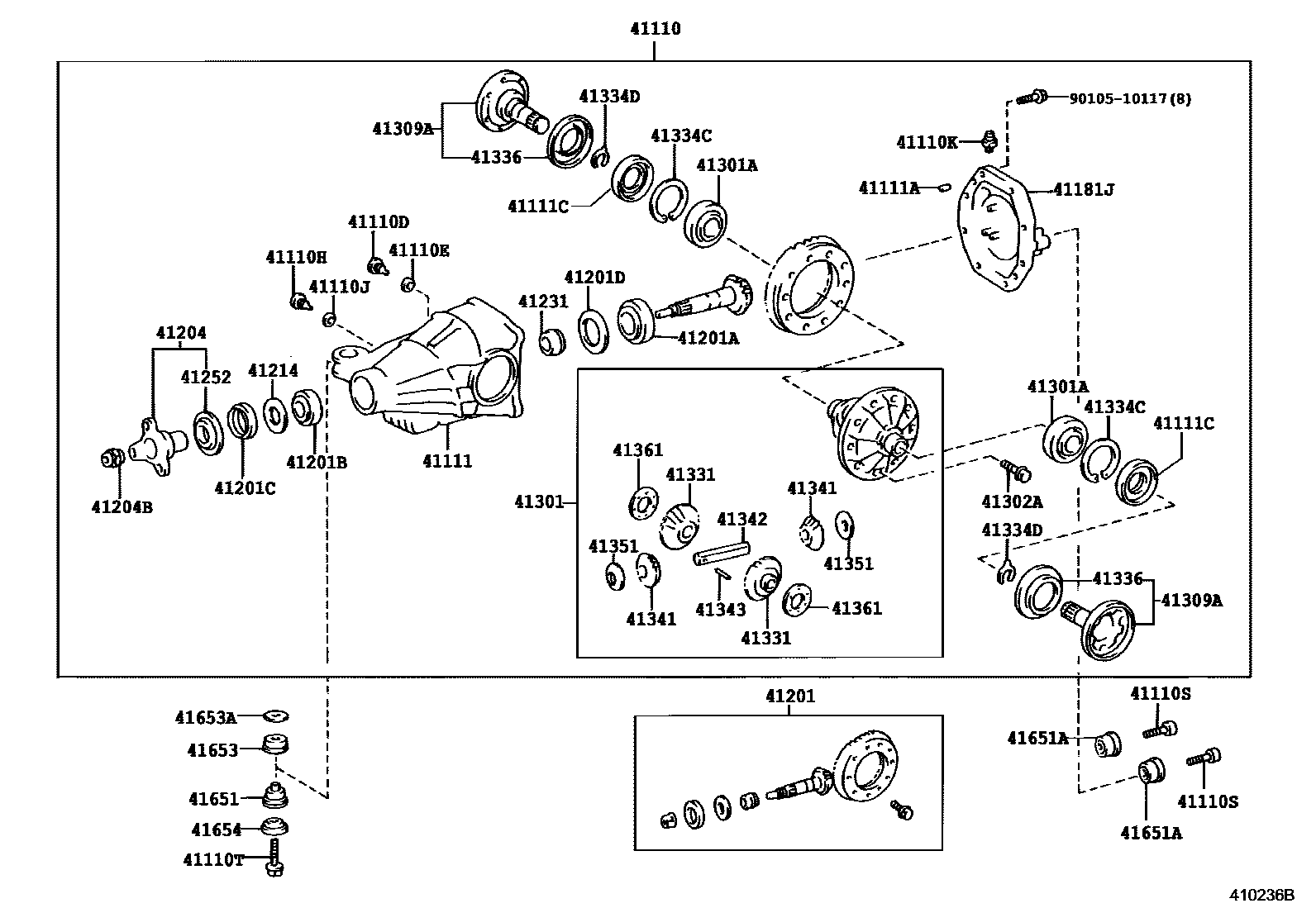

REAR AXLE HOUSING & DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
sub41110-50200
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)
41110SBOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET)
sub90110-14007
41110TBOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET)
41111CARRIER, REAR DIFFERENTIAL
41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)
41111CSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41181JCOVER, REAR DIFFERENTIAL CARRIER
sub41108-50020
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
sub41201-80445
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
sub90201-70002
sub90201-70004
sub90201-70006
sub90201-70008
sub90201-70010
sub90201-70012
sub90201-70014
sub90201-70016
sub90201-70018
sub90201-70020
sub90201-70022
sub90201-70024
sub90201-70026
sub90201-70028
sub90201-70030
sub90201-70032
sub90201-70034
sub90201-70036
sub90201-70038
sub90201-70040
sub90201-70042
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
sub41301-50H00
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1
41653AWASHER, PLATE (FOR REAR DIFFERENTIAL MOUNT STOPPER UPPER)
41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER
9010510117
main90105-10117
41 parts on this diagram · 2 diagrams in section
