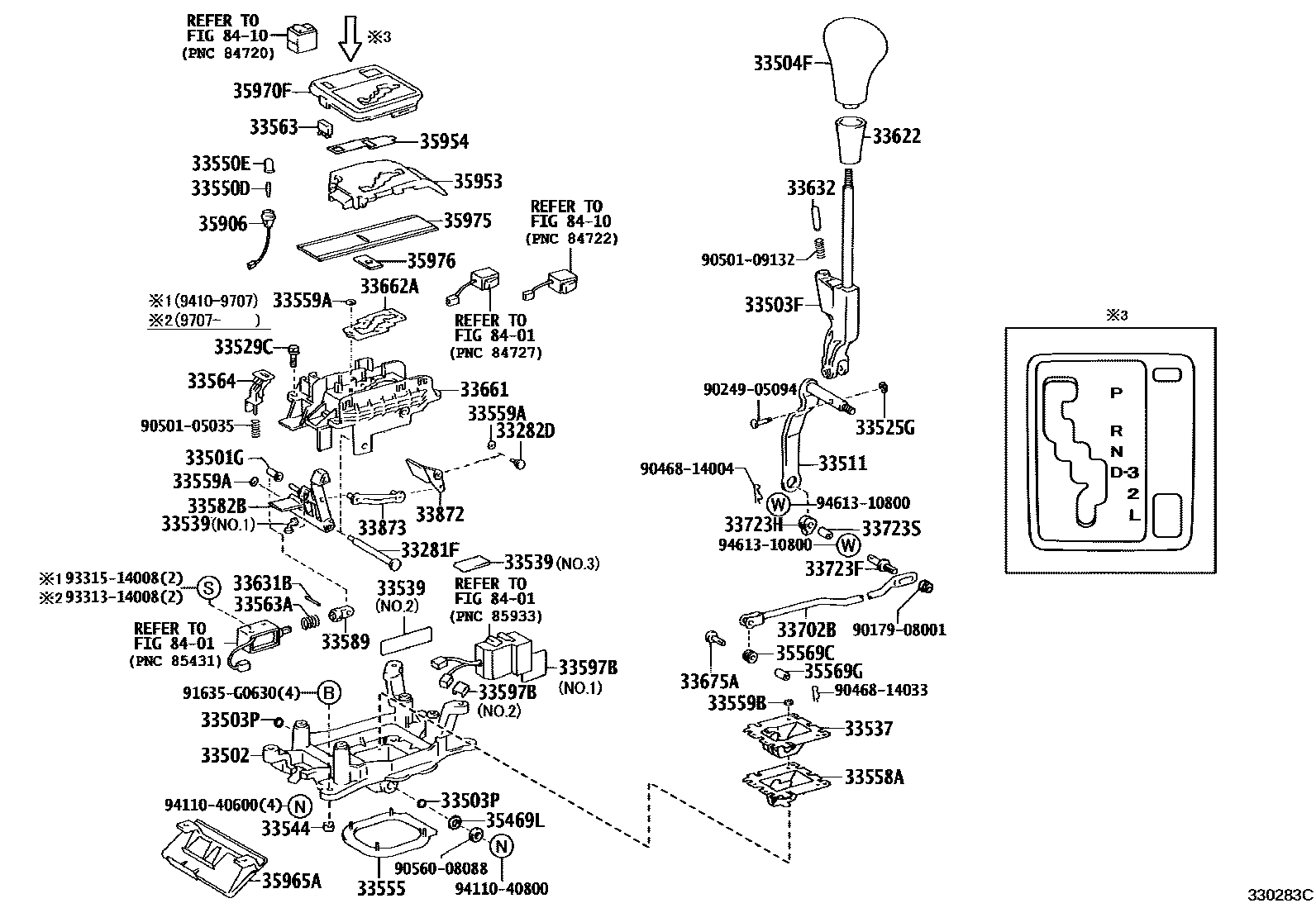

SHIFT LEVER & RETAINER

33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)

main33281-50010i199410

33282DPIN, LEVER LOCK, NO.2

main33282-50010i199410

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-03001i199410

33502PLATE SUB-ASSY, SHIFT LEVER

main33521-50030i199410

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-50050i199410

33503PRING, O(FOR SHIFT LEVER)

main96711-24014i199410

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-50040-B0i199410-199808

sub33542-50040

main33542-50040-B1i199808-200008

sub33542-50040

main33542-50040-C0i199608-200008

sub33542-50040

main33542-50040-E0i199410-199707

sub33542-50040

main33542-50040-E2i199707-200008

sub33542-50040

main33542-50040-G0i199410-200008

sub33542-50040

main33542-50050-B0i199707-199808

sub33542-50050

main33542-50050-B1i199808-200008

sub33542-50050

main33542-50050-C0i199707-200008

sub33542-50050

main33542-50050-E0i199707-200008

sub33542-50050

main33542-50050-G0i199707-200008

sub33542-50050

main33542-50060-C0i199905-199908

10TH ANNIVERSARY EDITION *(A),TRIM CODE TYPE A-*104,BLACK,TRIM2#

sub33542-50060

main33542-50060-E0i199905-199908

10TH ANNIVERSARY EDITION *(A),TRIM CODE TYPE C-*104,SANDALWOOD,TRIM0#

sub33542-50060

main33542-50070-C0i199905-199908

10TH ANNIVERSARY EDITION *(A),TRIM CODE TYPE B-*104,BLACK,TRIM2#

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33501-50010i199410

33525GRING, SHIFT LEVER

main33525-50010i199410

33529CBOLT, SHIFT LEVER

main33529-50010i199410

33537PLATE, CONTROL LEVER

main33537-50010i199410

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-14010i199410

main33539-50010i199410

main33539-50020i199603

main33539-50030i199707

main33539-50050i199707

main33539-50070i199707

33544INSERT, SHIFT LEVER, NO.1

main33544-50010i199410

33550DBULB, POSITION INDICATOR LAMP

main90981-11018i199410

33550ECAP, POSITION INDICATOR LAMP

main90339-04053i199410

33555BOOT, SHIFT LEVER

main33555-50020i199410

33558ASEAL, SHIFT LEVER BOOT DUST, NO.1

main33558-50020i199410

33559ANUT, SHIFT LEVER, NO.1

main33559-50010i199410

33559BNUT, SHIFT LEVER, NO.2

main33559-50010i199410

33563BUTTON, SHIFT LOCK RELEASE

main33563-50040i199410

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-06086i199410

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-50030i199410

33582BSTOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT)

main33582-50030i199410

33589LINK, SHIFT LOCK SOLENOID

main33589-20030i199410

33597BSEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT)

main33597-50010i199603-199707

main33597-50020i199603-199707

main33597-50020i199707

33622COVER, SHIFT LEVER KNOB, NO.1

main33622-50060i199410

33631BPIN, SLOTTED SPRING (FOR DETENT ROD)

main90254-02004i199410

33632ROD, DETENT, NO.2

main33632-50010i199410

33661HOUSING, SHIFT LEVER GUIDE

main33661-50010i199410-199608

sub33661-50030

sub33539-50020

main33661-50030i199608-199707

main33661-50050i199707

33662ACUSHION, SHIFT LEVER GUIDE

main33662-50010i199410-199707

main33662-50030i199707

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010i199410

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-50020i199410-199508

sub33702-50030

main33702-50030i199508-199703

main33702-50040i199703-199707

main33702-50050i199707

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-50010i199410

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main33572-22010i199410

33723SBUSH (FOR CONNECTING ROD SWIVEL)

main90389-08005i199410

33872LINK, SHIFT LOCK RELEASE, NO.2

main33872-50010i199410-199707

main33872-50030i199707

33873LINK, SHIFT LOCK RELEASE, NO.3

main33873-50010i199410-199607

sub33873-50011

main33873-50011i199607

35469LSPACER, SHIFT LEVER

main35469-50010i199410

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17023i199410

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005i199410

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-50030i199410-199707

main35906-50040i199707

sub35906-35100

35953GUIDE, POSITION INDICATOR LIGHT

main35953-50010i199410-199707

main35953-50030i199707

35954SHEET, POSITION INDICATOR

main35954-50010i199410

35965AGUIDE, SHIFT LEVER SLIDE COVER

main35965-50010i199410

35970FHOUSING ASSY, POSITION INDICATOR

main35970-50010i199410-199707

main35970-50020i199410-199707

main35970-50080i199707

main35970-50090i199707

sub35970-50120

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-50020i199410

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-50010i199410

8401

8410

9017908001

main90179-08001

9024905094

main90249-05094

9046814004

main90468-14004

9046814033

main90468-14033

9050105035

main90501-05035

9050109132

main90501-09132

9056008088

main90560-08088

91635G0630

main91635-G0630

9331314008

main93313-14008

9331514008

main93315-14008

9411040600

main94110-40600

9411040800

main94110-40800

9461310800

main94613-10800

62 parts on this diagram · 2 diagrams in section
