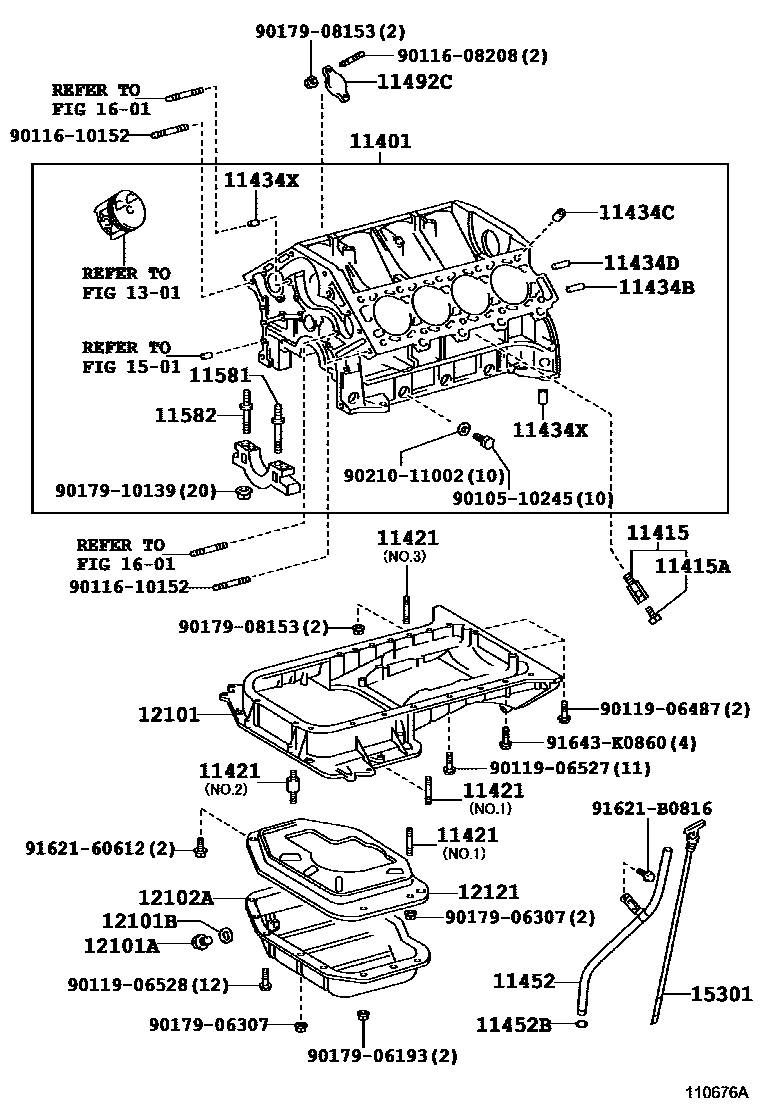

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11421BOLT, STUD(FOR OIL PAN)
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
11434XPIN, RING(FOR CHAIN CACE)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
11492CPLATE, WATER SEAL
sub11492-20010
11581BOLT, CRANKSHAFT BEARING CAP, NO.1
11582BOLT, CRANKSHAFT BEARING CAP, NO.2
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
1301
1501
15301GAGE SUB-ASSY, OIL LEVEL
1601
9010510245
main90105-10245
9011608208
main90116-08208
9011610152
main90116-10152
9011906487
main90119-06487
9011906527
main90119-06527
9011906528
main90119-06528
9017906193
main90179-06193
9017906307
main90179-06307
9017908153
main90179-08153
9017910139
main90179-10139
9021011002
main90210-11002
9162160612
main91621-60612
91621B0816
main91621-B0816
91643K0860
main91643-K0860
36 parts on this diagram · 2 diagrams in section
