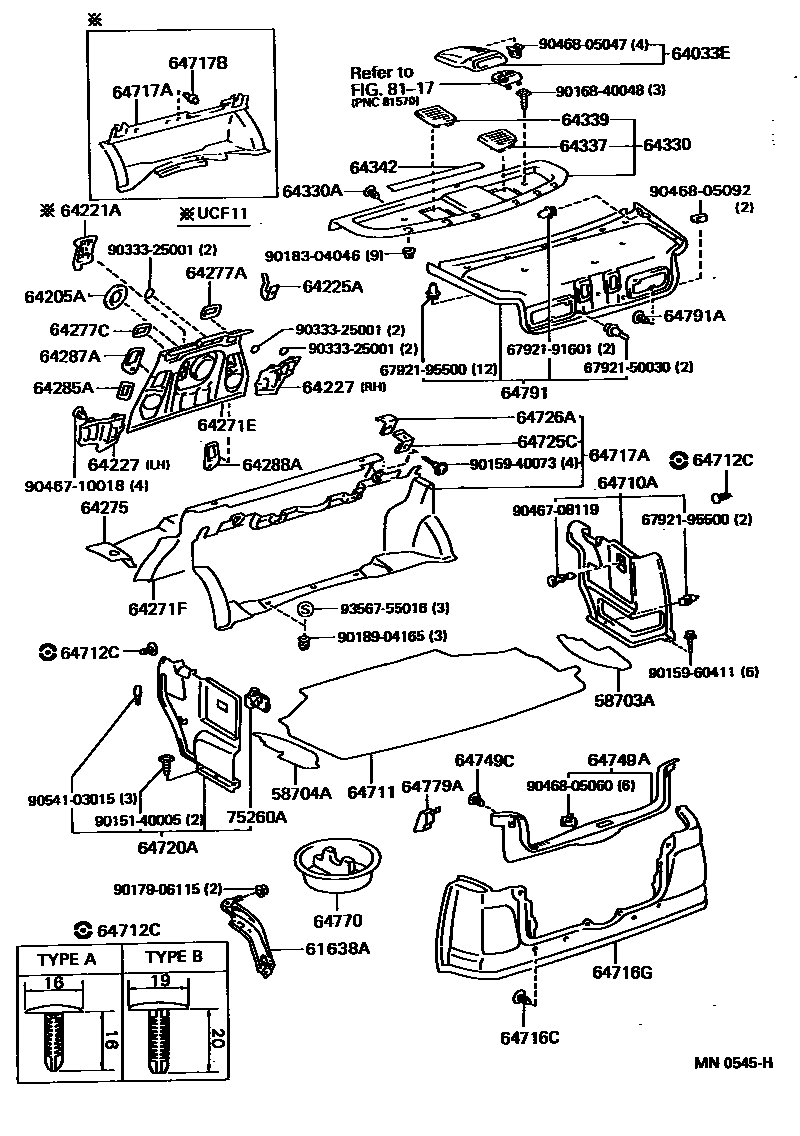

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64033EGRILLE SUB-ASSY, REAR SPEAKER
sub64033-50021
sub64033-50021
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
SHADOW GRAY,TRIM1#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
64205ACOVER SUB-ASSY, ROOM PARTITION
64221APANEL, REAR SEAT CUSHION SUPPORT
64225AHANGER, REAR SEAT CUSHION SUPPORT
64227EXTENSION, CENTER FLOOR TO BRACE
64275PAD, ROOM PARTITION TRIM, NO.2
64277AMOULDING, ROOM PARTITION TRIM
64277CCOVER, ROOM PARTITION, NO.2
64285ACOVER, ROOM PARTITION, NO.3
64287ACOVER, ROOM PARTITION, NO.4 RH
64288ACOVER, ROOM PARTITION, NO.4 LH
64330PANEL ASSY, PACKAGE TRAY TRIM
sub64330-50020
sub64330-50020
sub64330-50060
sub64330-50060
sub64330-50060
sub64330-50060
SHADOW GRAY,TRIM1#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64337GARNISH, PACKAGE TRAY TRIM, RH
64339GARNISH, PACKAGE TRAY TRIM, LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
64342COVER, PACKAGE TRAY TRIM, UNDER
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
sub64710-50031
sub64710-50031
BLACK,TRIM1#,8#
BLACK,TRIM0#,1#,4#,8#
sub64710-50070
sub64710-50070
sub64710-50080
sub64710-50080
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM1#,8#
BLACK,TRIM0#,1#,4#,8#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,8#
BLACK,TRIM0#,1#,4#,8#
sub64717-50030
sub64717-50030
sub64717-50040
sub64717-50040
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM1#,8#
BLACK,TRIM0#,1#,4#,8#
sub64720-50041
sub64720-50041
64725CRETAINER, LUGGAGE COMPARTMENT COVER
64726ACLIP, LUGGAGE TRIM, REAR
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
64749CCLIP(FOR LUGGAGE DOOR STRIKER COVER)
64770COVER ASSY, SPARE WHEEL
64779ASTOPPER, SPARE WHEEL COVER
64791COVER, BACK DOOR TRIM
BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM1#,8#
64791ACLIP(FOR BACK DOOR TRIM)
75260ALOCK ASSY, TOOL BOX
8117
6792150030RETAINER, FRONT DOOR SCUFF PLATE
main67921-50030
6792191601RETAINER, FRONT DOOR SCUFF PLATE
main67921-91601
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9015140005
main90151-40005
9015940073
main90159-40073
9015960411
main90159-60411
9016840048
main90168-40048
9017906115
main90179-06115
9018304046
main90183-04046
9018904165
main90189-04165
9033325001
main90333-25001
9046708119
main90467-08119
9046710018
main90467-10018
9046805047
main90468-05047
9046805060
main90468-05060
9046805092
main90468-05092
9054103015
main90541-03015
9356755016
main93567-55016
57 parts on this diagram · 2 diagrams in section
