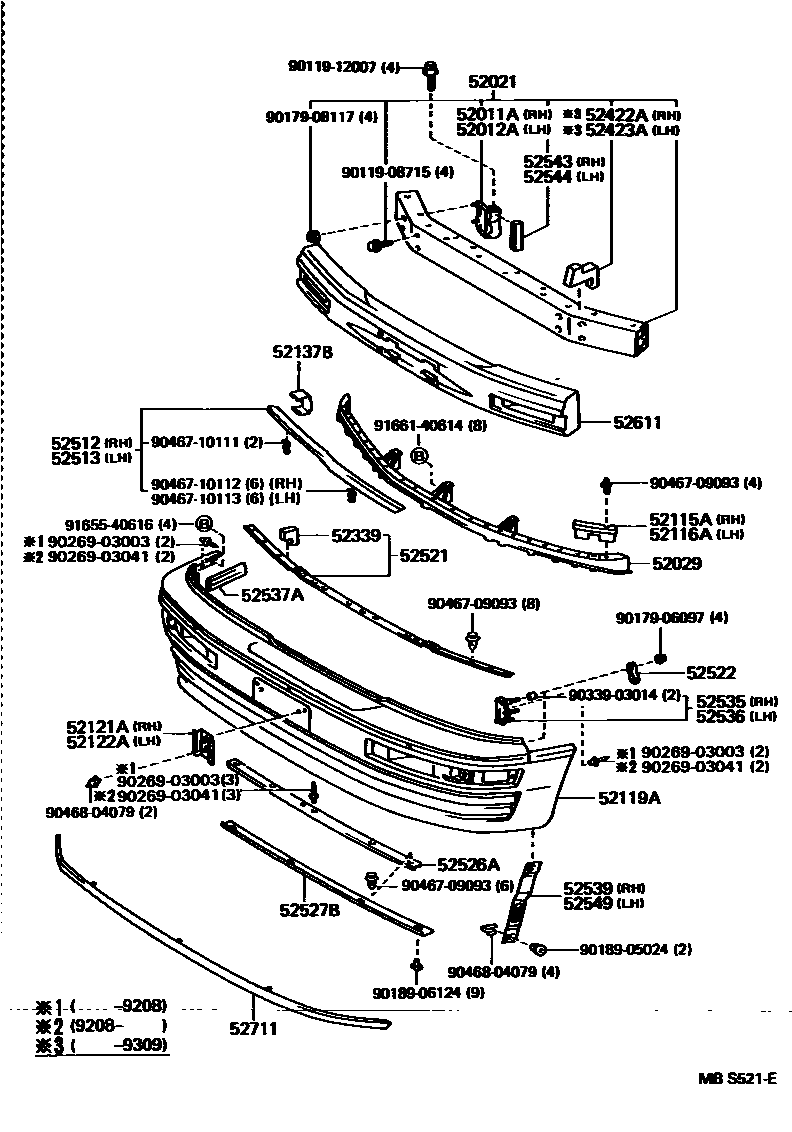

FRONT BUMPER & BUMPER STAY
52011AARM SUB-ASSY, FRONT BUMPER, RH
52012AARM SUB-ASSY, FRONT BUMPER, LH
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
SILVER ME/LIGHT GRAY,SILVER ME/LIGHT GRAY,199
sub52119-50020
sub52119-50090
sub52119-50090
sub52119-50090
sub52119-50090
sub52119-50090
sub52119-50090
sub52119-50090
sub52119-50090
sub52119-50090
sub52119-50090
52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH
52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH
52137BPLATE, FRONT BUMPER BRACKET, NO.1
52339SEAL, FRONT BUMPER STEP
52422APAD, FRONT BUMPER, RH
52423APAD, FRONT BUMPER, LH
52512FILLER, FRONT BUMPER, RH
52513FILLER, FRONT BUMPER, LH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52522RETAINER, FRONT BUMPER UPPER SIDE
52526ARETAINER, FRONT BUMPER, LOWER NO.1
52527BRETAINER, FRONT BUMPER, LOWER NO.2
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52537ARETAINER, FRONT BUMPER SIDE, NO.2
52539RETAINER, FRONT BUMPER SIDE, NO.3 RH
52543SEAL, FRONT BUMPER SIDE, RH
52544SEAL, FRONT BUMPER SIDE, LH
52549RETAINER, FRONT BUMPER SIDE, NO.3 LH
52611ABSORBER, FRONT BUMPER ENERGY
52711MOULDING, FRONT BUMPER
9011908715
main90119-08715
9011912007
main90119-12007
9017906097
main90179-06097
9017908117
main90179-08117
9018905024
main90189-05024
9018906124
main90189-06124
9026903003
main90269-03003
9026903041
main90269-03041
9033903014
main90339-03014
9046709093
main90467-09093
9046710111
main90467-10111
9046710112
main90467-10112
9046710113
main90467-10113
9046804079
main90468-04079
9165540616
main91655-40616
9166140614
main91661-40614
44 parts on this diagram · 2 diagrams in section
