SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1������-� 0003 1��� 0004 1������������ 0005 1�������� & �����-��� ���� 0006 1���,�-�,��� & ����-��

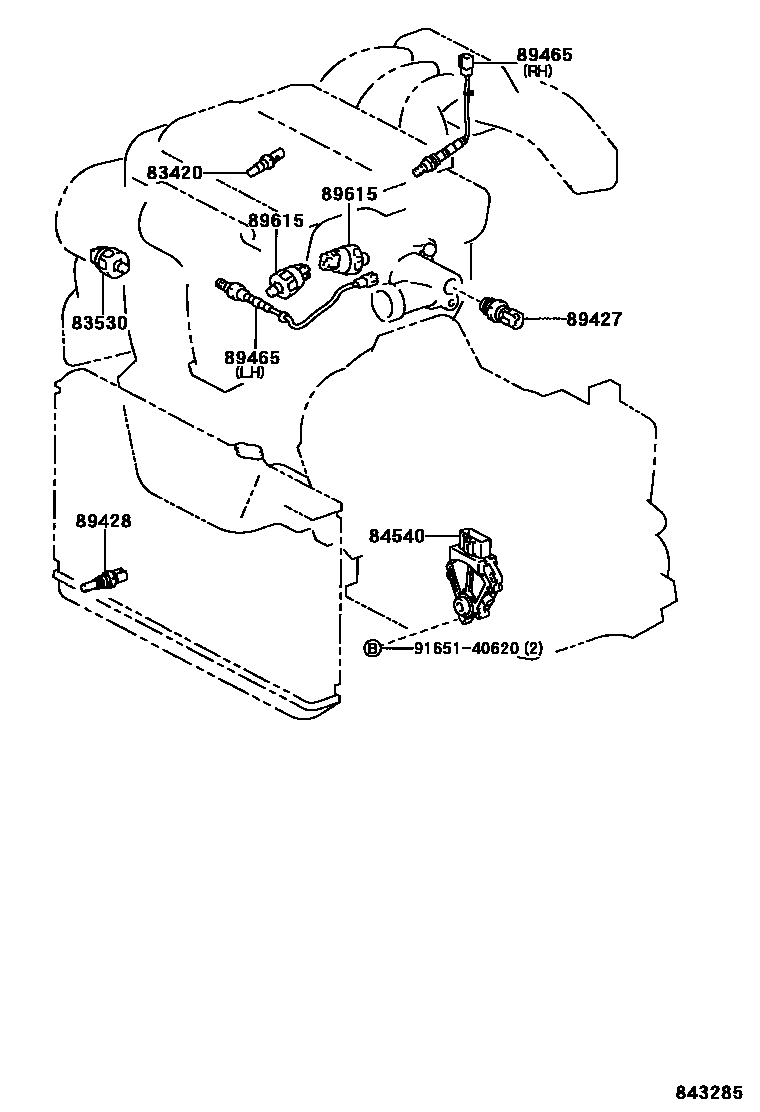

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-AA010iMCX20200002-200301

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCX20200002-200301

main83530-AA011iMCX20200002-200301

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-20200iMCX20200002-200301

89427SWITCH, TEMPERATURE DETECT

main89428-41010iMCX20200002-200301

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-21010iMCX20200002-200301

89465SENSOR, OXYGEN

main89465-41050iMCX20200002-200301

main89465-41060iMCX20200002-200301

89615SENSOR, KNOCK CONTROL

main89615-12090iMCX20200207-200301

main89615-32010iMCX20200002-200207

sub89615-12090

9165140620

main91651-40620

8 parts on this diagram · 6 diagrams in section
