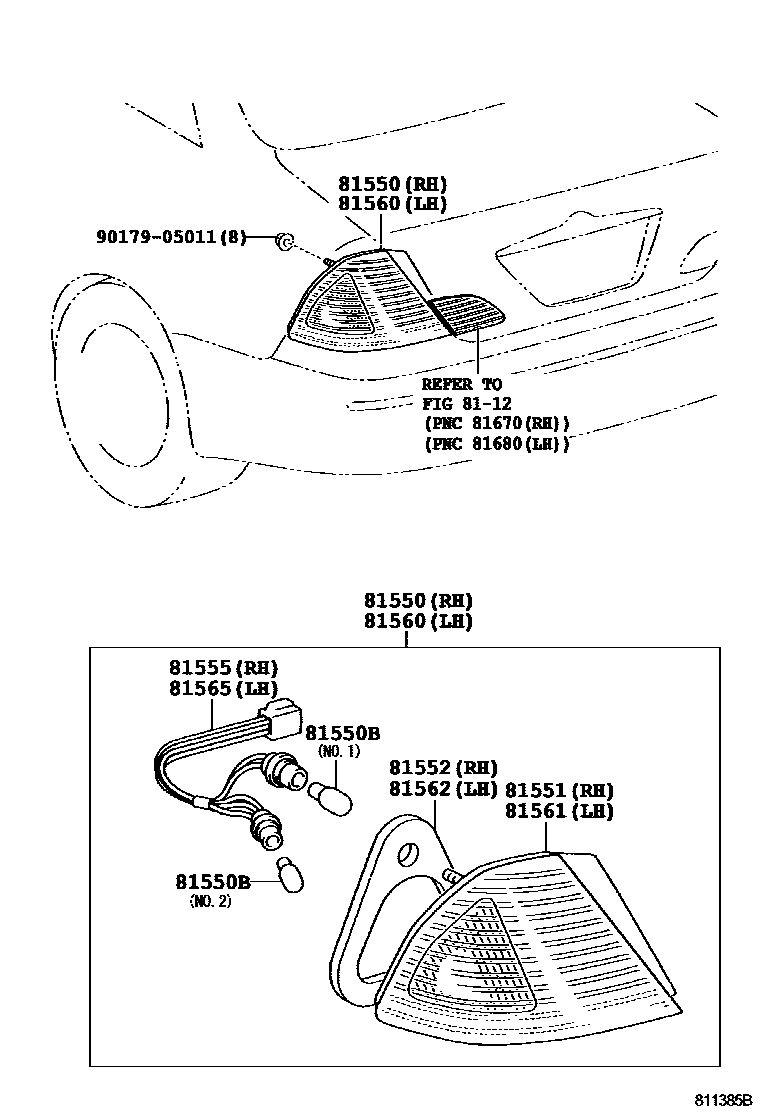

REAR COMBINATION LAMP

0001 1 0002 1

8112

81550LAMP ASSY, REAR COMBINATION, RH

main81550-07010iMCX20200002-200207

main81550-AC080iMCX20200207-200301

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11059×2iMCX20200207-200301

main90981-13044×2iMCX20200207-200301

main90981-13050×2iMCX20200002-200207

sub90981-13043

main90981-13051×2iMCX20200002-200207

sub90981-11048

main90981-15011×2iMCX20200207-200301

81551LENS, REAR COMBINATION LAMP, RH

main81551-07010iMCX20200002-200207

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-07030iMCX20200207-200301

main81552-AC050iMCX20200002-200207

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-07010iMCX20200002-200207

main81555-07040iMCX20200207-200301

81560LAMP ASSY, REAR COMBINATION, LH

main81560-07010iMCX20200002-200207

main81560-AC080iMCX20200207-200301

81561LENS, REAR COMBINATION LAMP, LH

main81561-07010iMCX20200002-200207

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-07030iMCX20200207-200301

main81552-AC050iMCX20200002-200207

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-07010iMCX20200002-200207

main81555-07040iMCX20200207-200301

9017905011

main90179-05011

11 parts on this diagram · 2 diagrams in section
