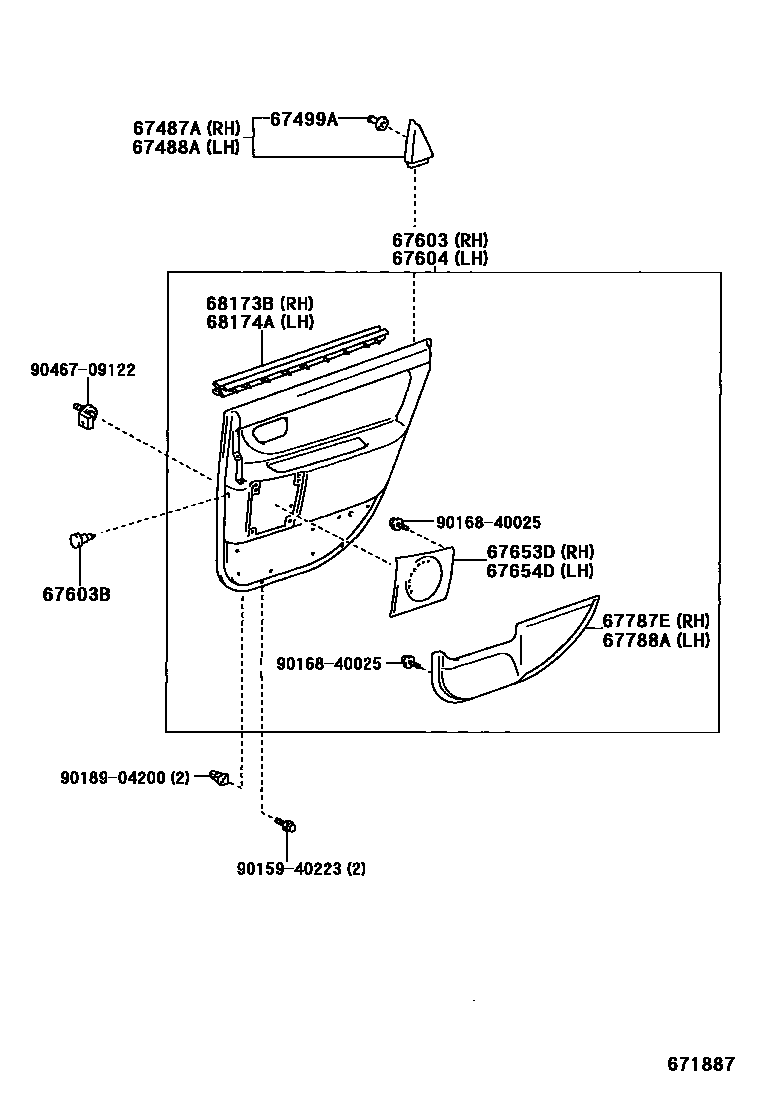

REAR DOOR PANEL & GLASS
67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
67603BCLIP(FOR REAR DOOR TRIM BOARD)
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
67653DGRILLE SUB-ASSY, REAR DOOR SPEAKER, RH
IVORY,TRIM0#
FAWN,TRIM4#
67654DGRILLE SUB-ASSY, REAR DOOR SPEAKER, LH
IVORY,TRIM0#
FAWN,TRIM4#
67787EPOCKET, REAR DOOR TRIM, RH
IVORY,TRIM0#
FAWN,TRIM4#
67788APOCKET, REAR DOOR TRIM, LH
IVORY,TRIM0#
FAWN,TRIM4#
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
9015940223
9016840025
9018904200
9046709122
16 parts on this diagram · 2 diagrams in section
