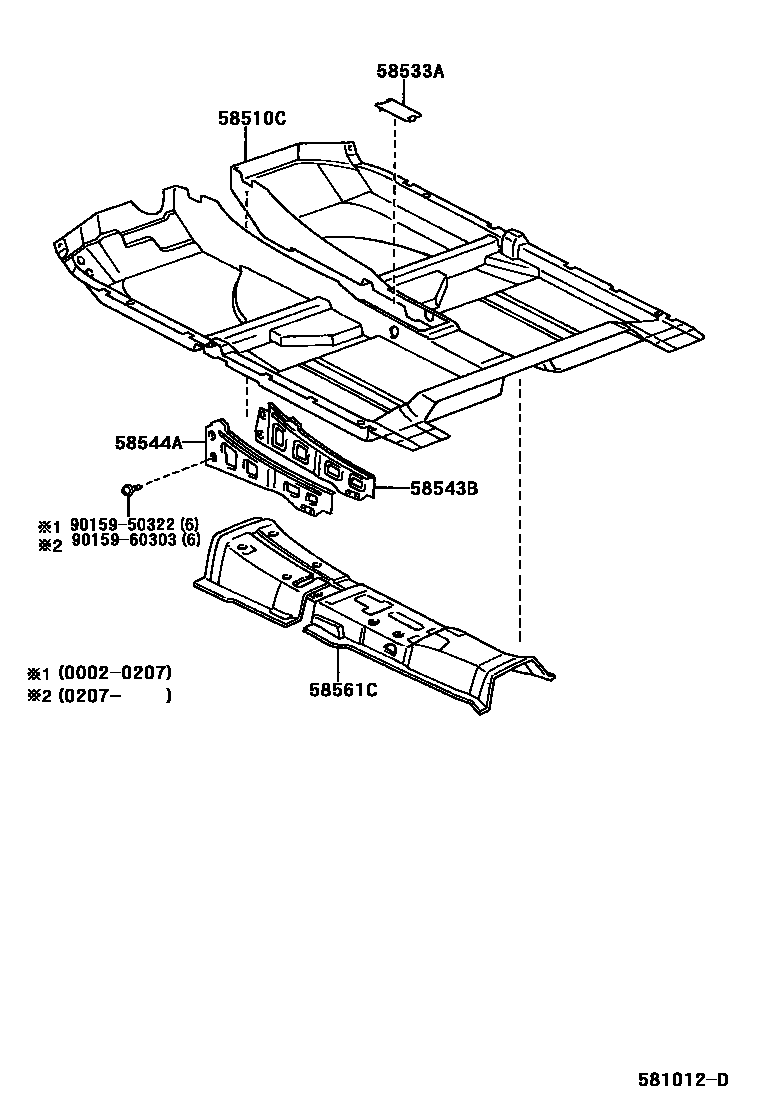

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-AC060-A0iMCX20..4FC200002-200207

IVORY,TRIM0#

main58510-AC060-E0iMCX20..4FC200207-200301

FAWN,TRIM4#

main58510-AC070-A0iMCX20..4HC200002-200207

IVORY,TRIM0#

main58510-AC070-E0iMCX20..4HC200207-200301

FAWN,TRIM4#

58533ACOVER, FLOOR CARPET, CENTER RH

main58533-AC020-A0iMCX20..4HC200002-200207

IVORY,TRIM0#

main58533-AC020-E0iMCX20..4HC200207-200301

FAWN,TRIM4#

58543BBRACKET, FLOOR CARPET, RH

main58543-AC040iMCX20..4FC200002-200301

58544ABRACKET, FLOOR CARPET, LH

main58544-AC040iMCX20..4FC200002-200301

9015950322

main90159-50322

9015960303

main90159-60303

6 parts on this diagram · 1 diagram in section
