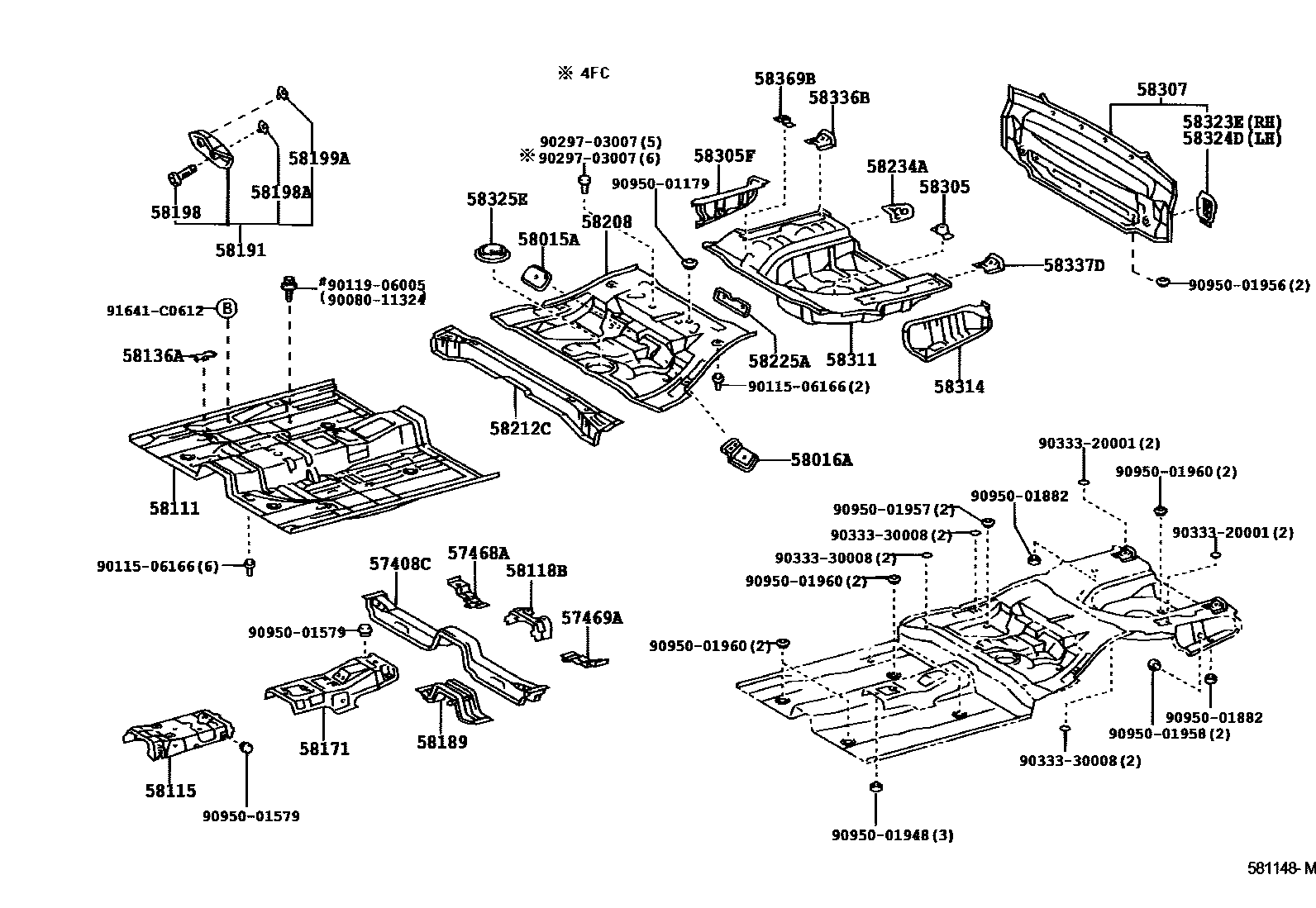

FLOOR PAN & LOWER BACK PANEL

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-07050iMCX20200002-200207

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-07010iMCX20200002-200207

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-07010iMCX20200002-200207

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-06010iMCX20200002-200207

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-33040iMCX20200002-200207

58111PAN, FRONT FLOOR

main58111-07030iMCX20200002-200207

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58115-07030iMCX20200002-200207

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-07020iMCX20200002-200207

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-33010×2iMCX20200002-200207

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-07020iMCX20200207-200301

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-07020iMCX20200002-200207

58191FOOTREST, FRONT FLOOR

main58191-07010iMCX20200002-200207

58198CLIP, FOOTREST

main58198-06010×2iMCX20200207-200301

58198ACLIP, FOOTREST, NO.1

main58199-07020iMCX20200207-200301

58199ACLIP, FOOTREST, NO.2

main58199-07010iMCX20200207-200301

58208PAN, CENTER FLOOR

main58211-07030iMCX20200002-200107

main58211-07031iMCX20200107-200207

main58211-07040iMCX20..4FC200002-200107

3.0G *(G)

main58211-07041iMCX20..4FC200107-200207

3.0G *(G)

main58211-07901iMCX20200207-200301

sub58211-07050

58212CPAN, CENTER FLOOR, FRONT

main58212-06010iMCX20200002-200207

58225ABRACKET, CENTER MOUNTING

main58225-41020iMCX20200002-200207

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-41010iMCX20200002-200207

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iMCX20200002-200207

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-06030iMCX20200002-200207

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-AC010iMCX20200002-200103

main58307-AC011iMCX20200103-200207

58311PAN, REAR FLOOR

main58311-06040iMCX20200002-200207

58314PANEL, REAR FLOOR SIDE, LH

main58314-06030iMCX20200002-200207

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-AA010iMCX20200002-200207

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-AA010iMCX20200002-200207

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06020iMCX20200207-200301

main58325-33020iMCX20200207-200301

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-33010iMCX20200002-200207

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-33020iMCX20200002-200207

58369BBRACKET, FUEL TUBE, NO.3

main58369-06010×2iMCX20200002-200207

9008011324

main90080-11324

9011506166

main90115-06166

9011906005

main90119-06005

9029703007

main90297-03007

9033320001

main90333-20001

9033330008

main90333-30008

9095001179

main90950-01179

9095001579

main90950-01579

9095001882

main90950-01882

9095001948

main90950-01948

9095001956

main90950-01956

9095001957

main90950-01957

9095001958

main90950-01958

9095001960

main90950-01960

91641C0612

main91641-C0612

45 parts on this diagram · 1 diagram in section
