COWL PANEL & WINDSHIELD GLASS

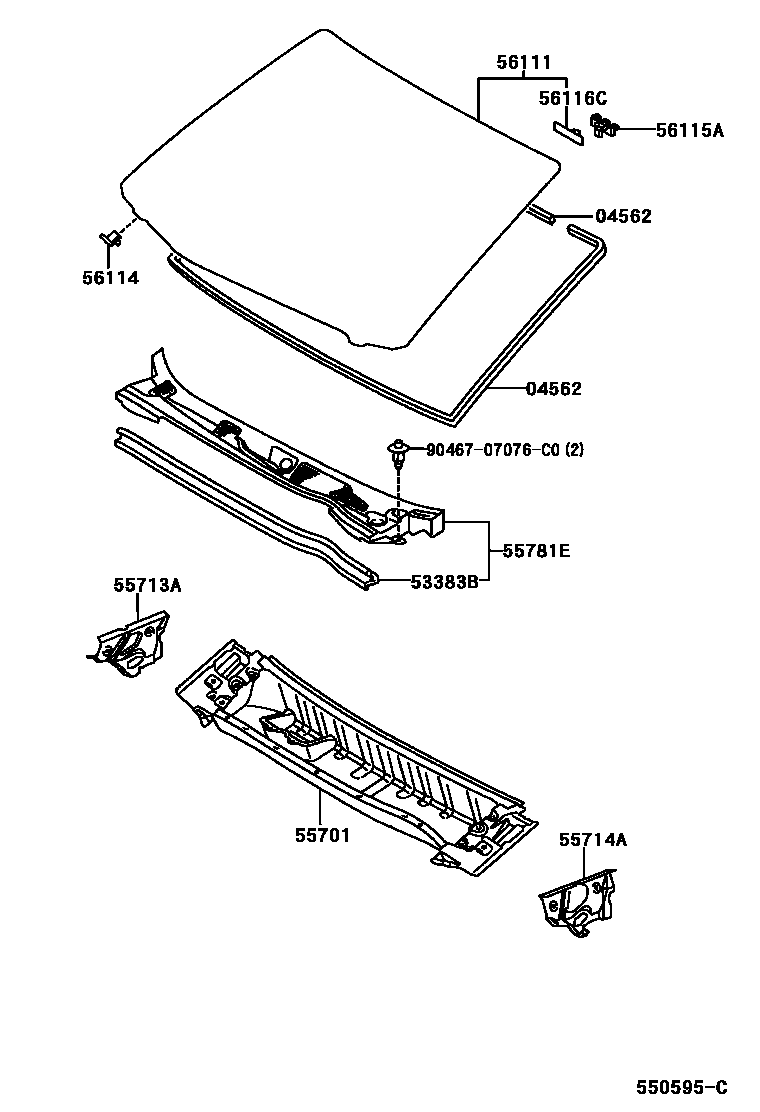

Parts diagram

04562DAM KIT, WINDSHIELD GLASS

main56117-AC010i200002-200102

L=3310

main56118-AC010i200002-200102

L=724

main90998-91001i200002-200207

L=3500

main90998-91002i200002-200207

L=750

main90998-91003i200207-200301

L=750

main90998-91004i200207-200301

L=3500

53383BSEAL, HOOD TO COWL TOP

main53383-07020i200002-200207

55701PANEL SUB-ASSY, COWL

main55700-07050i200002-200207

55713APANEL, COWL TOP SIDE, RH

main55713-07030i200002-200207

55714APANEL, COWL TOP SIDE, LH

main55714-07030i200002-200207

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55781-07030i200002-200207

56111GLASS, WINDSHIELD

main56101-AC120i200002-200207

main56101-AC150i200207-200301

56114RETAINER, WINDSHIELD GLASS

main56114-22050×2i200002-200207

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2i200002-200108

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200002-200108

9046707076C0

main90467-07076C0

11 parts on this diagram · 1 diagram in section
