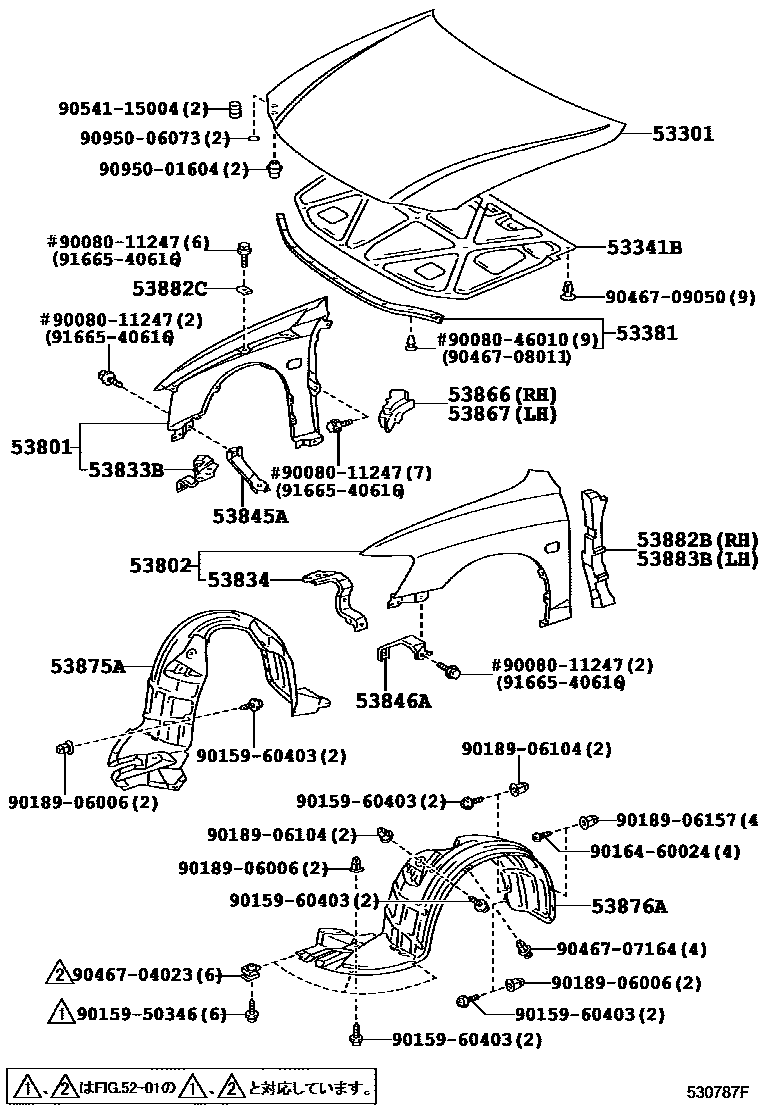

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53381SEAL, HOOD TO RADIATOR SUPPORT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882BSEAL, FRONT FENDER, RH
53882CSEAL, FRONT FENDER MAIN
53883BSEAL, FRONT FENDER, LH
9008011247
main90080-11247
9008046010
main90080-46010
9015950346
main90159-50346
9015960403
main90159-60403
9016460024
main90164-60024
9018906006
main90189-06006
9018906104
main90189-06104
9018906157
main90189-06157
9046704023
main90467-04023
9046707164
main90467-07164
9046708011
main90467-08011
9046709050
main90467-09050
9054115004
main90541-15004
9095001604
main90950-01604
9095006073
main90950-06073
9166540616
main91665-40616
32 parts on this diagram · 1 diagram in section
