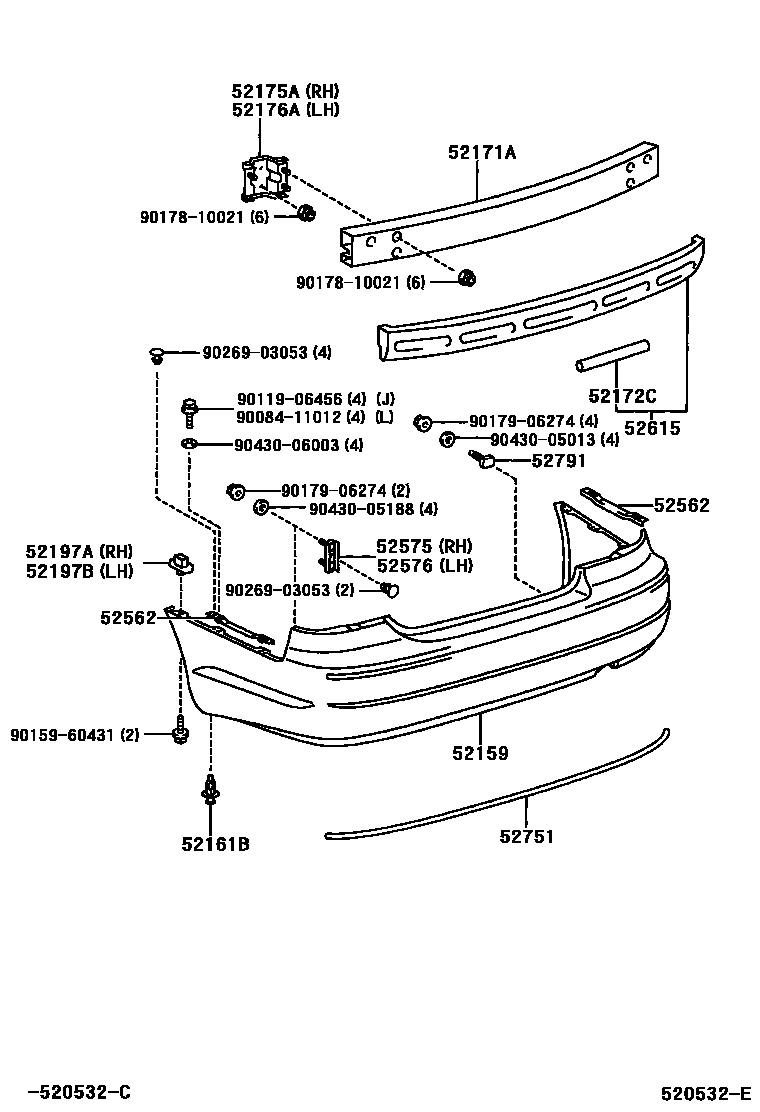

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
SU.WHITE PM,051
SLVER ME.,1C8
GREEN MC.,6R1
DK.BLUE MC.,8Q0
52161BPIECE, REAR BUMPER
52171AREINFORCEMENT, REAR BUMPER, NO.1
52172CREINFORCEMENT, REAR BUMPER BAR, CENTER
52175ABRACKET, REAR BUMPER ARM MOUNTING, RH
52176ABRACKET, REAR BUMPER ARM MOUNTING, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52562RETAINER, REAR BUMPER, UPPER SIDE
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
52751MOULDING, REAR BUMPER
52791BOLT, BUMPER MOULDING SET, NO.1
9008411012
main90084-11012
9011906456
main90119-06456
9015960431
main90159-60431
9017810021
main90178-10021
9017906274
main90179-06274
9026903053
main90269-03053
9043005013
main90430-05013
9043005188
main90430-05188
9043006003
main90430-06003
23 parts on this diagram · 1 diagram in section
