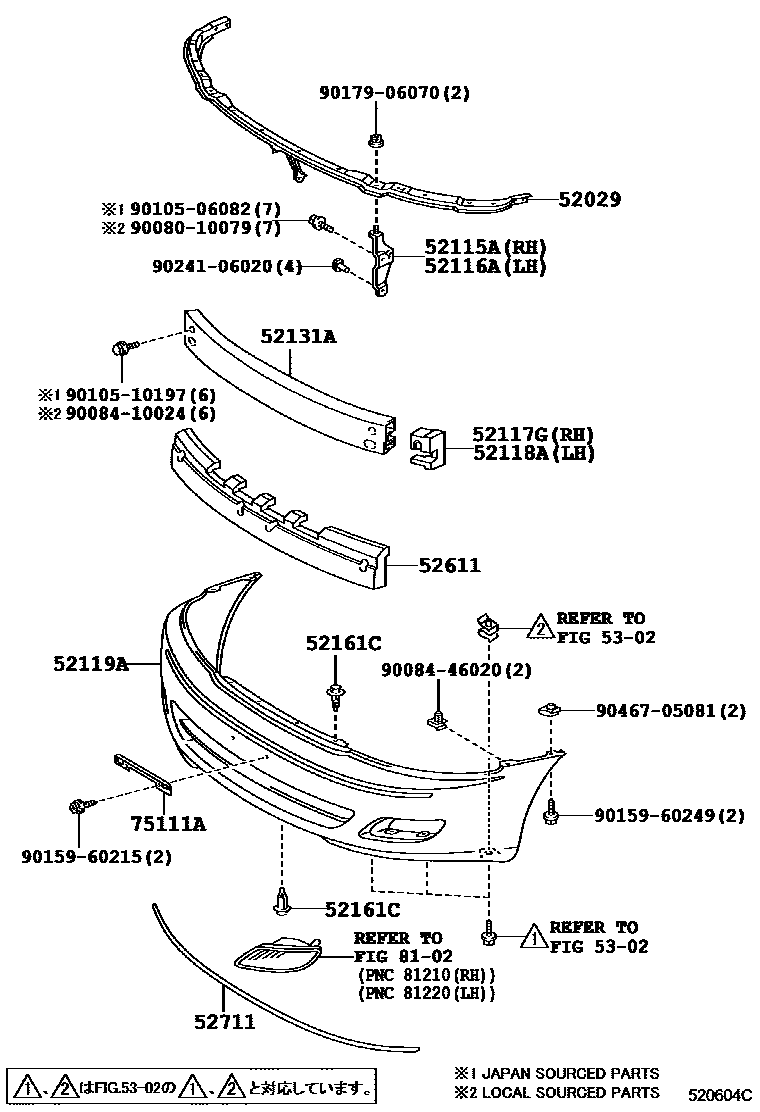

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-AC030iMCX20200002-200301

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-AC020iMCX20200002-200301

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-AC010iMCX20200002-200301

52117GINSERT, FRONT BUMPER EXTENSION, NO.2 RH

main52117-AC010iMCX20200002-200301

52118AINSERT, FRONT BUMPER EXTENSION, NO.2 LH

main52118-AC010iMCX20200002-200301

52119ACOVER, FRONT BUMPER

main52119-07020-A0iMCX20200207-200301

SU. WHITE PM.,051

main52119-07020-B0iMCX20200207-200301

SILVER ME.,1C8

main52119-07020-J0iMCX20200207-200301

DK.BLUE MC.,8Q0

main52119-AC080-A0iMCX20200002-200207

SU.WHITE PM,051

main52119-AC080-B0iMCX20200002-200207

SLVER ME.,1C8

main52119-AC080-G0iMCX20200002-200207

GREEN MC.,6R1

52131AREINFORCEMENT, FRONT BUMPER

main52131-AC060iMCX20200002-200301

52161CPIECE, FRONT BUMPER

main52161-02020iMCX20200002-200301

52611ABSORBER, FRONT BUMPER ENERGY

main52611-07010iMCX20200207-200301

main52611-AC030iMCX20200002-200207

52711MOULDING, FRONT BUMPER

main52711-07010iMCX20200207-200301

main52711-AC040iMCX20200002-200207

5302

75111ABRACKET, FRONT LICENSE PLATE

main75111-AC030iMCX20200002-200207

main75111-AC050iMCX20200207-200301

8102

9008010079

main90080-10079

9008410024

main90084-10024

9008446020

main90084-46020

9010506082

main90105-06082

9010510197

main90105-10197

9015960215

main90159-60215

9015960249

main90159-60249

9017906070

main90179-06070

9024106020

main90241-06020

9046705081

main90467-05081

23 parts on this diagram · 2 diagrams in section
