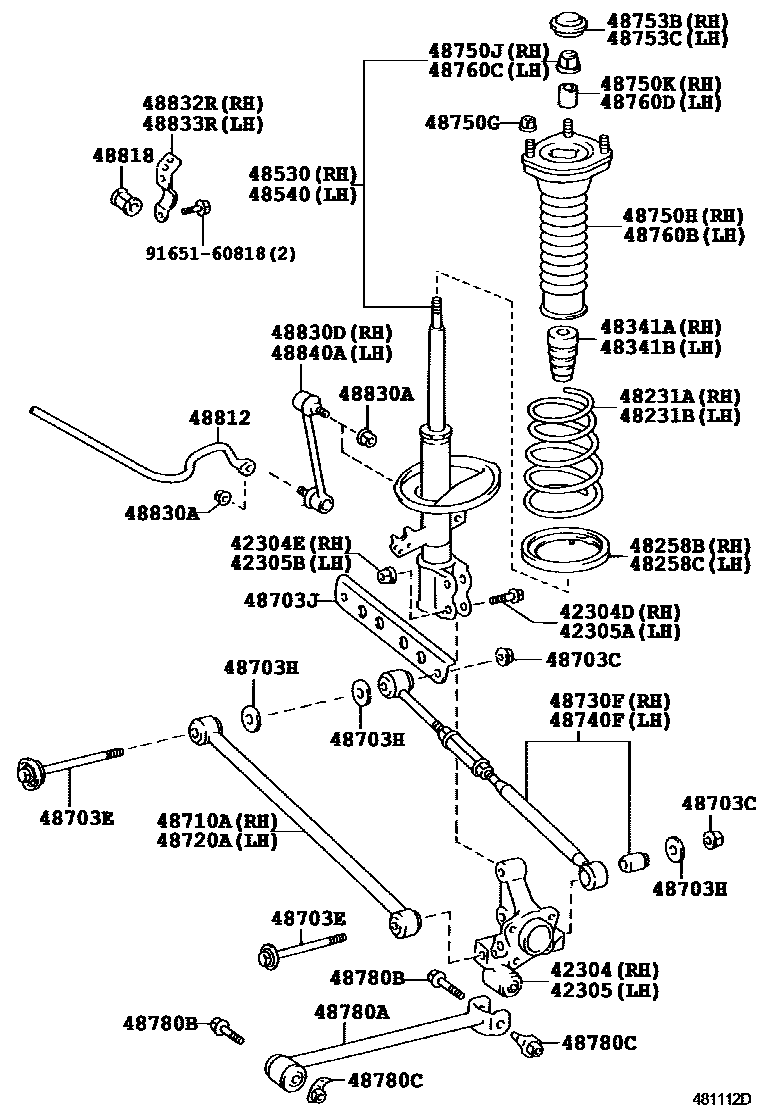

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-06020iMCX20200207-200301

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001×2iMCX20200002-200107

main90901-05001×2iMCX20200107-200207

42304ENUT (FOR REAR AXLE CARRIER RH)

main90178-15001×2iMCX20200107-200207

main90179-15001×2iMCX20200002-200107

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-06020iMCX20200002-200207

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001×2iMCX20200002-200107

main90901-05001×2iMCX20200207-200301

42305BNUT (FOR REAR AXLE CARRIER LH)

main90178-15001×2iMCX20200107-200207

main90179-15001×2iMCX20200002-200107

48231ASPRING, COIL, REAR RH

main48231-07010iMCX20200002-200207

48231BSPRING, COIL, REAR LH

main48231-07010iMCX20200002-200207

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06010iMCX20200002-200008

main48258-AC010iMCX20200008-200207

sub48258-06250

main48258-AC020iMCX20..4FC200207-200301

3.0G *(G)

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06010iMCX20200002-200008

main48258-AC010iMCX20200008-200207

sub48258-06250

main48258-AC020iMCX20..4FC200101-200207

3.0G *(G)

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-06012iMCX20200002-200110

main48341-AA010iMCX20200110-200207

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-06012iMCX20200002-200110

main48341-AA010iMCX20200110-200207

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09290iMCX20200002-200207

main48530-39395iMCX20..4FC200002-200207

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-09260iMCX20200002-200207

main48540-39275iMCX20..4FC200207-200301

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-14019×4iMCX20200002-200207

48703EBOLT(FOR REAR SUSPENSION ARM)

main90901-09001×2iMCX20200207-200301

main90901-19001×2iMCX20200002-200207

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017×6iMCX20200002-200207

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-06010iMCX20200207-200301

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-33050iMCX20200002-200109

main48710-33051iMCX20200109-200207

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-33050iMCX20200002-200109

main48710-33051iMCX20200207-200301

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-07010iMCX20200002-200207

3.0G *(G)

main48730-AA020iMCX20200002-200207

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-AA020iMCX20200002-200207

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90178-08007×6iMCX20200207-200301

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-06050iMCX20200002-200207

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-14001iMCX20200002-200207

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iMCX20200002-200207

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-06011iMCX20200002-200207

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-06011iMCX20200002-200207

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-06050iMCX20200002-200207

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-14001iMCX20200207-200301

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iMCX20200002-200207

48780AROD ASSY, STRUT, REAR

main48780-33010×2iMCX20200002-200207

48780BBOLT(FOR STRUT ROD)

main90080-11133×4iMCX20200207-200301

main90119-12131×4iMCX20200002-200207

48780CNUT(FOR STRUT ROD)

main90179-12063×2iMCX20200002-200207

main90179-12091×2iMCX20200002-200207

48812BAR, STABILIZER, REAR

main48812-AA010iMCX20200207-200301

48818BUSH, STABILIZER, REAR

main48818-06090×2iMCX20200002-200207

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10183×4iMCX20200002-200207

48830DLINK ASSY, REAR STABILIZER, RH

main48830-07010iMCX20200002-200207

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-AA010iMCX20200002-200207

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-AA010iMCX20200002-200207

48840ALINK ASSY, REAR STABILIZER, LH

main48830-07010iMCX20200002-200207

9165160818

main91651-60818

42 parts on this diagram · 1 diagram in section
