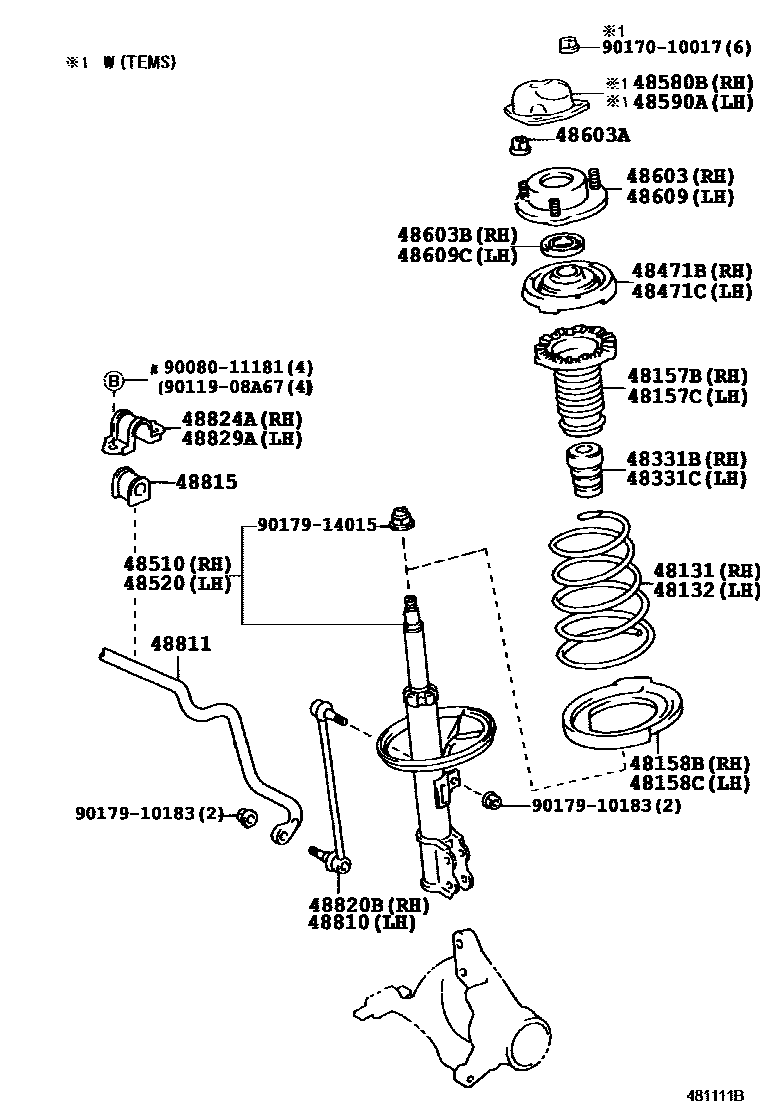

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-07070iMCX20200002-200207

48132SPRING, FRONT COIL, LH

main48131-07070iMCX20200002-200207

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-07010iMCX20200002-200207

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-07010iMCX20200002-200207

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-07010iMCX20200002-200207

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-07010iMCX20200002-200207

48331BBUMPER, FRONT SPRING, RH

main48331-06011iMCX20200002-200207

48331CBUMPER, FRONT SPRING, LH

main48331-06011iMCX20200002-200207

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-06030iMCX20200112-200207

main48471-41010iMCX20200002-200112

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-06030iMCX20200112-200207

main48471-41010iMCX20200002-200112

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09360iMCX20200002-200207

main48510-39515iMCX20..4FC200207-200301

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09300iMCX20200002-200207

main48520-39195iMCX20..4FC200207-200301

48580BCAP ASSY, FRONT SHOCK ABSORBER, RH

main48580-33030iMCX20..4FC200002-200106

main48580-33031iMCX20..4FC200207-200301

48590ACAP ASSY, FRONT SHOCK ABSORBER, LH

main48590-33020iMCX20..4FC200002-200106

main48590-33021iMCX20..4FC200106-200207

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48603-06011iMCX20200002-200207

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10008×6iMCX20200002-200107

main90178-10017×6iMCX20..4FC200207-200301

main90178-10018×6iMCX20200207-200301

main90179-10095×6iMCX20..4FC200002-200107

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90080-36070iMCX20200207-200301

main90903-63002iMCX20200002-200207

sub90903-63014

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06061iMCX20200002-200207

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90080-36070iMCX20200002-200207

main90903-63002iMCX20200207-200301

sub90903-63014

48810LINK ASSY, FRONT STABILIZER, LH

main48810-06030iMCX20200002-200207

48811BAR, STABILIZER, FRONT

main48811-AC020iMCX20200002-200207

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06050×2iMCX20200207-200301

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-06030iMCX20200002-200207

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-07010iMCX20200002-200207

sub48824-33020

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-07010iMCX20200002-200207

sub48824-33020

9008011181

main90080-11181

9011908A67

main90119-08A67

9017010017

main90170-10017

9017910183

main90179-10183

9017914015

main90179-14015

30 parts on this diagram · 1 diagram in section
