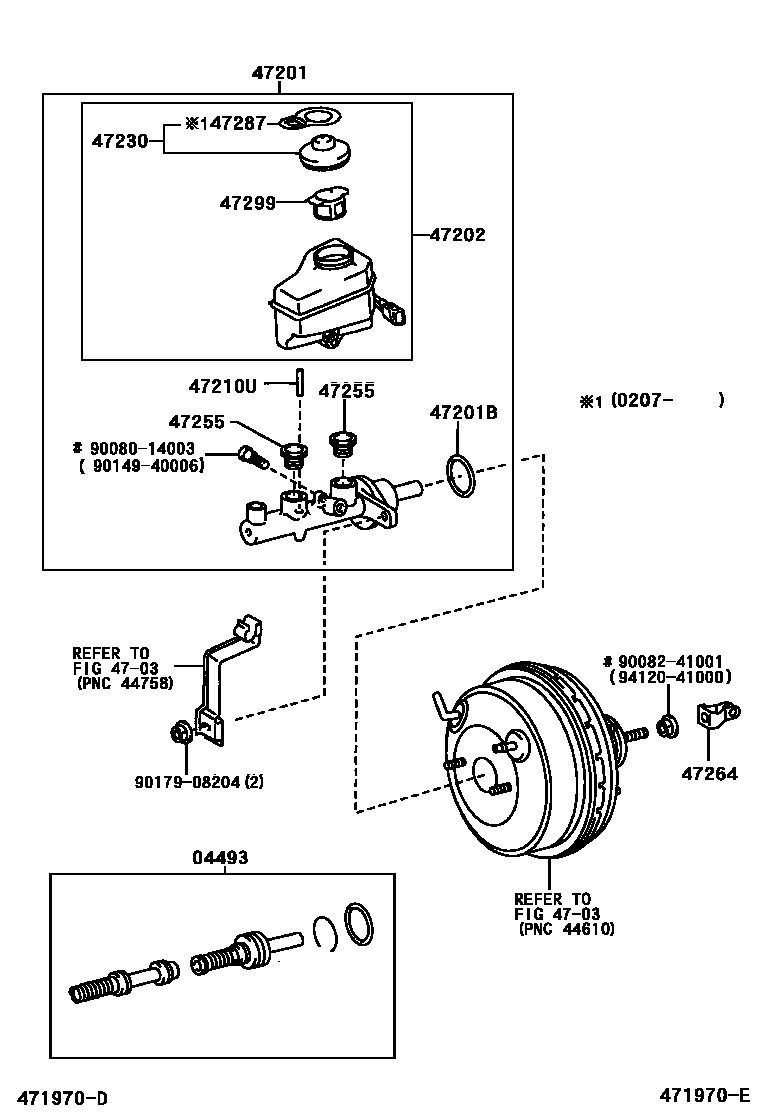

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-07020iMCX20200207-200301

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-07041iMCX20200002-200207

main47201-07042iMCX20200207-200301

sub47201-07043

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iMCX20200207-200301

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-07020iMCX20200002-200207

main47220-07021iMCX20200207-200301

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iMCX20200002-200207

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28240iMCX20200207-200301

main47230-33050iMCX20200002-200207

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010×2iMCX20200002-200207

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iMCX20200207-200301

main47264-32020iMCX20200002-200101

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iMCX20200207-200301

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMCX20200002-200207

9008014003

main90080-14003

9008241001

main90082-41001

9014940006

main90149-40006

9017908204

main90179-08204

9412041000

main94120-41000

16 parts on this diagram · 1 diagram in section
