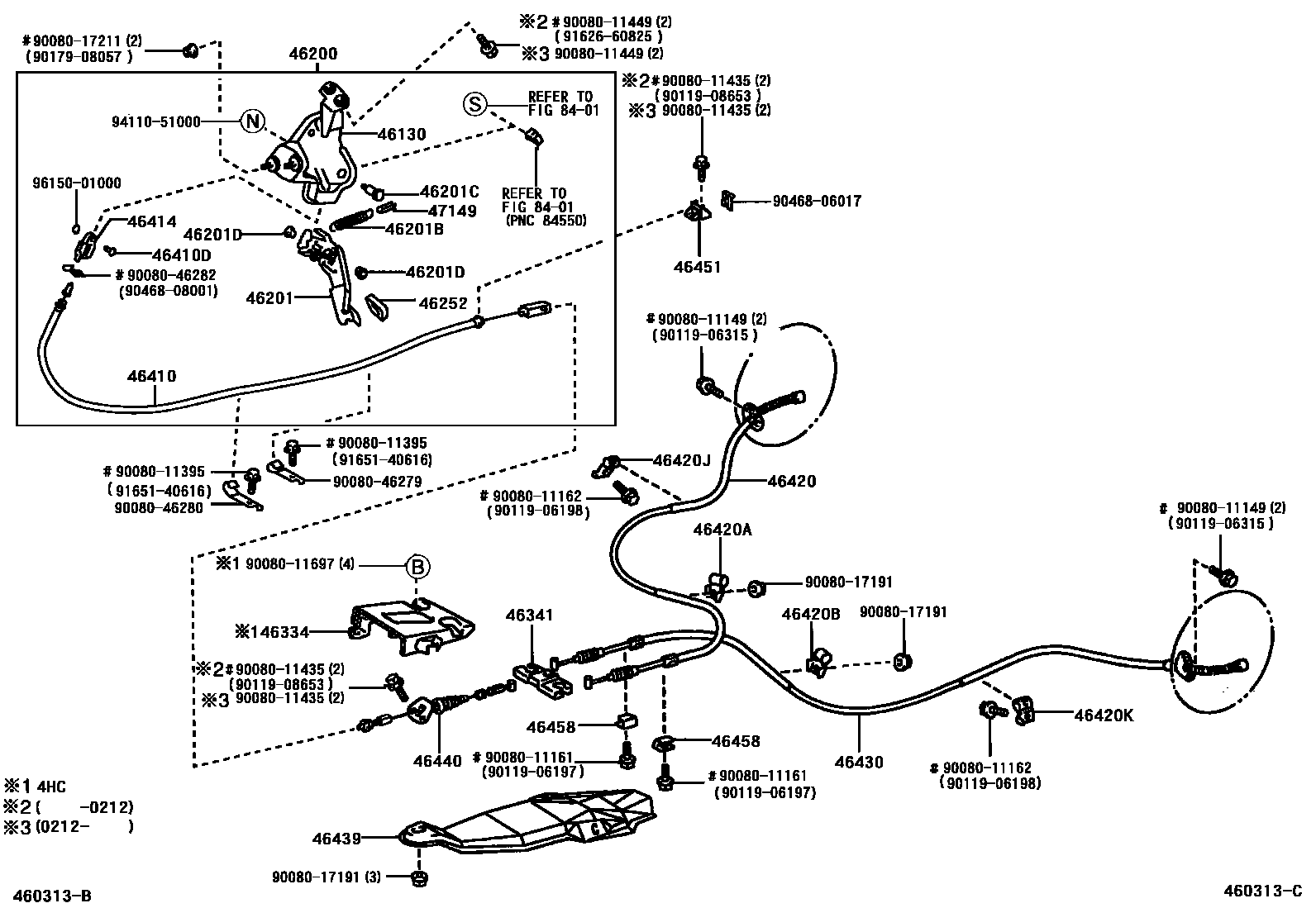

PARKING BRAKE & CABLE

0001 1 0002 1

46130BRACKET ASSY, PARKING BRAKE PEDAL

main46130-41010iMCX20¥8,600200002-200301

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-41010iMCX20¥22,400200002-200301

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-33100iMCX20¥7,100200002-200301

46201BSPRING, TENSION

main90506-19004iMCX20¥300200002-200301

46201CSHAFT, PEDAL

main90109-10033iMCX20¥370200002-200301

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-16022iMCX20¥130200002-200301

46252PAD, PARKING PEDAL

main46252-33010iMCX20¥630200002-200301

46334PROTECTOR, INTERMEDIATE LEVER

main46334-07020iMCX20..4HC¥4,300200002-200301

46341EQUALIZER, PARKING BRAKE

main46341-AC010iMCX20¥1,670200002-200301

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-41010iMCX20¥3,710200002-200301

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90249-10200iMCX20¥230200002-200301

46414CLEVIS, PARKING CABLE

main46414-33010iMCX20¥440200002-200301

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-07020iMCX20¥4,930200002-200301

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01663iMCX20¥320200002-200301

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B08iMCX20¥320200002-200301

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01A66iMCX20¥460200002-200301

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01A67iMCX20¥460200002-200301

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-07020iMCX20¥4,780200002-200301

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-07010iMCX20¥3,830200002-200301

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-07020iMCX20¥2,000200002-200301

46451BRACKET, CABLE SUPPORT

main46451-07010iMCX20¥1,080200002-200301

46458RETAINER, CABLE

main46458-AC010iMCX20¥320200002-200301

47149DAMPER, RETURN SPRING

main47149-22040iMCX20¥120200002-200301

8401

9008011149

main90080-11149

9008011161

main90080-11161¥60

9008011162

main90080-11162¥60

9008011395

main90080-11395

9008011435

main90080-11435¥130

9008011449

main90080-11449¥80

9008011697

main90080-11697¥90

9008017191

main90080-17191¥110

9008017211

main90080-17211

9008046279

main90080-46279¥320

9008046280

main90080-46280¥400

9008046282

main90080-46282

9011906197

main90119-06197¥50

9011906198

main90119-06198¥90

9011906315

main90119-06315¥70

9011908653

main90119-08653¥160

9017908057

main90179-08057¥90

9046806017

main90468-06017¥80

9046808001

main90468-08001¥210

9162660825

main91626-60825¥130

9165140616

main91651-40616¥60

9411051000

main94110-51000¥130

9615001000

main96150-01000¥100
