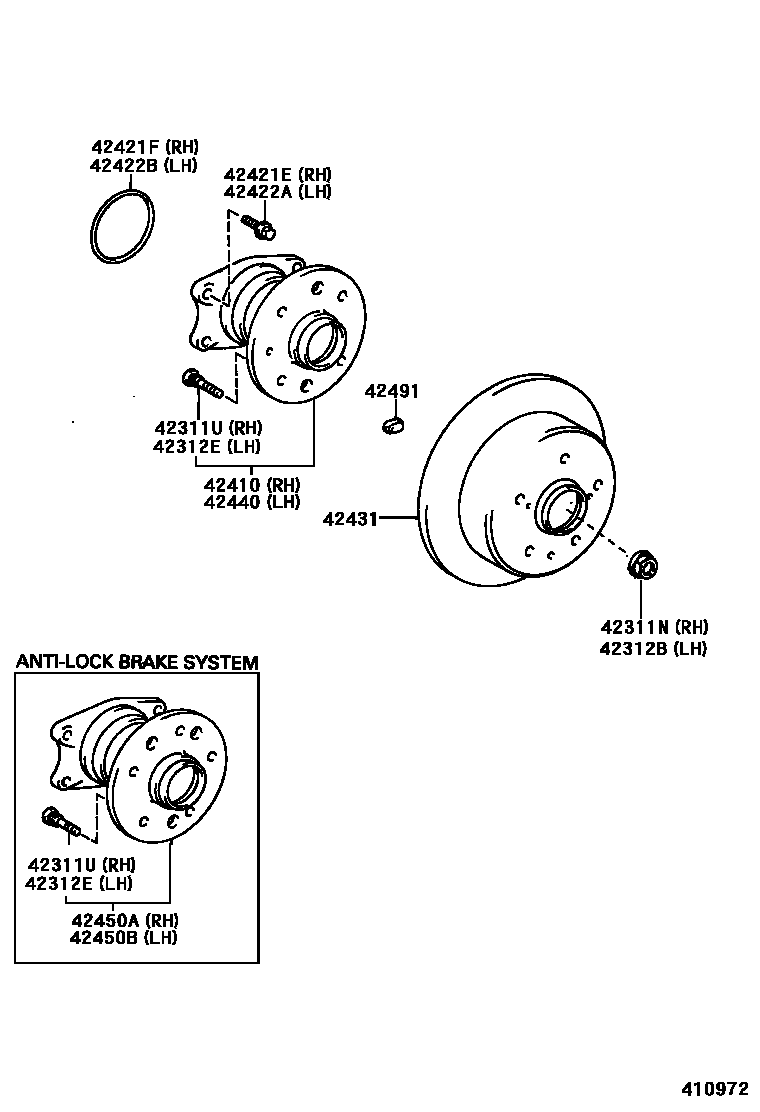

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90179-20017iMCX20200002-200301

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iMCX20200002-200301

42312BNUT(FOR REAR AXLE SHAFT LH)

main90179-20017iMCX20200002-200301

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iMCX20200002-200301

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-07010iMCX20200002-200301

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124iMCX20200002-200301

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iMCX20200002-200108

sub90301-63006

main90301-63006iMCX20200108-200301

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124iMCX20200002-200301

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iMCX20200002-200108

sub90301-63006

main90301-63006iMCX20200108-200301

42431DISC, REAR

main42431-07030iMCX20200002-200301

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-07010iMCX20200002-200301

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-07010iMCX20200002-200301

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-07010iMCX20200002-200301

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iMCX20200002-200301

14 parts on this diagram · 1 diagram in section
