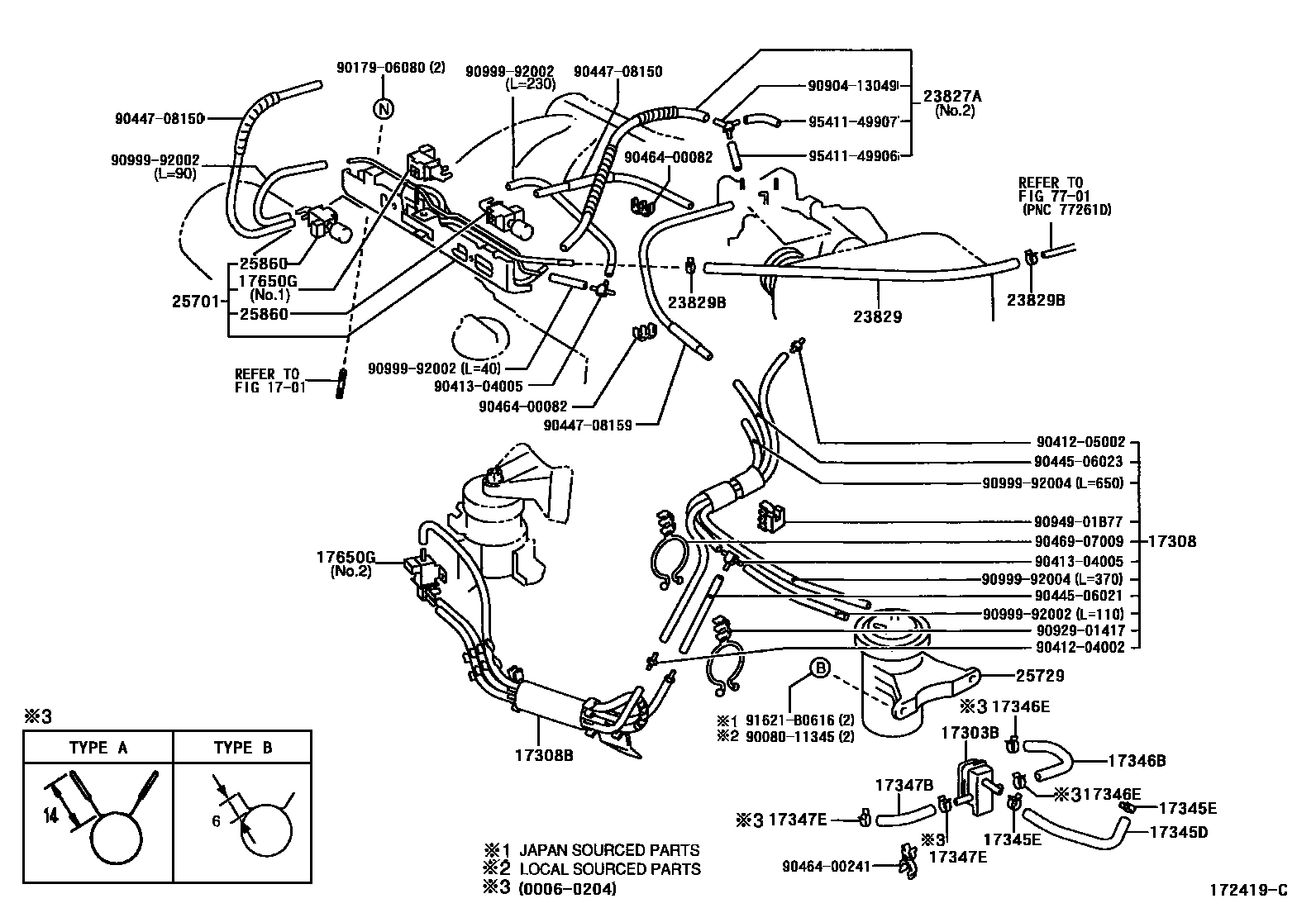

VACUUM PIPING
1701
17303BPIPE SUB-ASSY, AIR, NO.1
17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308BHOSE SUB-ASSY, VACUUM
17345DHOSE, AIR, NO.5
sub17345-20030
17345ECLAMP OR CLIP(FOR AIR HOSE, NO.5)
17346BHOSE, AIR, NO.6
17346ECLIP(FOR AIR HOSE NO.6)
17347BHOSE, AIR, NO.7
17347ECLIP(FOR AIR HOSE NO.7)
17650GVALVE, DUTY VACUUM SWITCHING
23827AHOSE, FUEL VAPOR FEED, NO.2
23829HOSE, FUEL VAPOR FEED, NO.3
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
25701VALVE SET, EMISSION CONTROL
25729TANK, VACUUM SURGE W/BRACKET
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701
9008011345
main90080-11345
9017906080
main90179-06080
9041204002
main90412-04002
9041205002
main90412-05002
9041304005
main90413-04005
9044506021
main90445-06021
9044506023
main90445-06023
9044708150
main90447-08150
9044708159
main90447-08159
9046400082
main90464-00082
9046400241
main90464-00241
9046907009
main90469-07009
9090413049
main90904-13049
9092901417
main90929-01417
9094901B77
main90949-01B77
9099992002
main90999-92002
9099992004
main90999-92004
91621B0616
main91621-B0616
9541149906
main95411-49906
9541149907
main95411-49907
38 parts on this diagram · 1 diagram in section
