CRANKSHAFT & PISTON

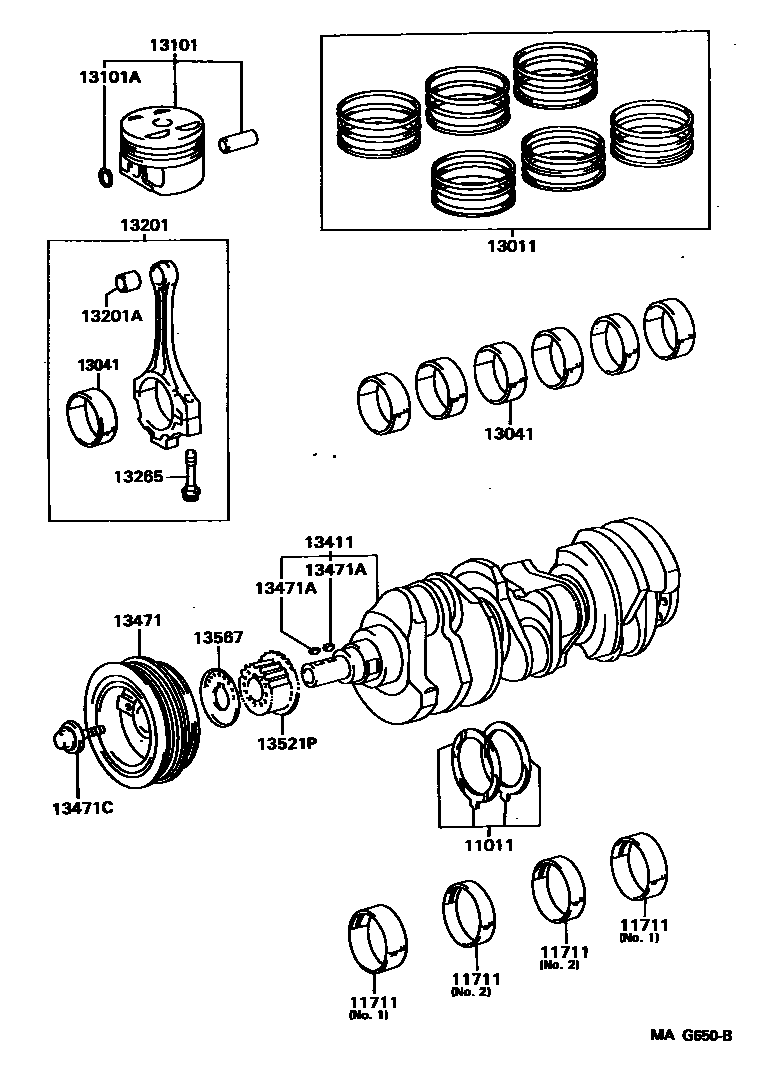

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-0A010i200002-200207
main11011-20020i200207-200301
11711BEARING, CRANKSHAFT
main11071-0A010-01×2i200207-200301
sub11071-0A020
main11071-0A010-02×2i200207-200301
sub11071-0A020
main11071-0A010-03×2i200002-200207
sub11071-0A020
main11071-0A010-04×2i200002-200207
sub11071-0A020
main11071-0A010-05×2i200002-200207
sub11071-0A020
main11071-0A010-06×2i200207-200301
sub11071-0A020
main11071-0A010-07×2i200207-200301
sub11071-0A020
main11071-20020-01×2i200002-200207
sub11071-20021
main11071-20020-02×2i200207-200301
sub11071-20021
main11071-20020-03×2i200207-200301
sub11071-20021
main11071-20020-04×2i200002-200207
sub11071-20021
main11071-20020-05×2i200207-200301
sub11071-20021
main11071-20020-06×2i200207-200301
sub11071-20021
main11071-20020-07×2i200207-200301
sub11071-20021
main11701-0A010-03×2i200002-200207
sub11701-0A020
main11701-0A010-04×2i200207-200301
sub11701-0A020
main11701-0A010-05×2i200002-200207
sub11701-0A020
main11701-0A010-06×2i200207-200301
sub11701-0A020
main11701-0A010-07×2i200207-200301
sub11701-0A020
main11701-20020-01×2i200207-200301
sub11701-20030
main11701-20020-02×2i200207-200301
sub11701-20030
main11701-20020-03×2i200207-200301
sub11701-20030
main11701-20020-04×2i200002-200207
sub11701-20030
main11701-20020-05×2i200207-200301
sub11701-20030
main11701-20020-06×2i200002-200207
sub11701-20030
main11701-20020-07×2i200002-200207
sub11701-20030
13011RING SET, PISTON
main13011-0A020i200002-200207
main13011-20022i200002-200207
main13011-20023i200207-200301
13041BEARING, CONNECTING ROD
main13041-0A010-01×6i200207-200301
main13041-0A010-02×6i200002-200207
main13041-0A010-03×6i200002-200207
main13041-0A010-04×6i200207-200301
main13041-20010-01×6i200002-200207
sub13041-20011
main13041-20010-02×6i200002-200207
sub13041-20011
main13041-20010-03×6i200207-200301
sub13041-20011
main13041-20010-04×6i200002-200207
sub13041-20011
13101PISTON SUB-ASSY, W/PIN
main13101-0A020×3i200207-200301
main13301-0A020×3i200207-200301
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025×12i200003-200207
main90521-25004×12i200002-200003
13201ROD SUB-ASSY, CONNECTING
main13201-09070×6i200002-200207
main13201-09180×6i200211-200301
main13201-09190×6i200207-200211
main13201-29015×6i200002-200207
main13201-29155×6i200207-200211
sub13201-29525
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73119×6i200002-200207
13265BOLT, CONNECTING ROD
main13265-28010×12i200207-200301
sub13265-28020
main13265-50020×12i200002-200207
13411CRANKSHAFT
main13401-0A020i200002-200207
main13401-20030i200002-200207
13471PULLEY, CRANKSHAFT
main13408-0A010i200002-200207
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516×2i200207-200301
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i200002-200207
13521PPULLEY, CRANKSHAFT TIMING
main13521-0A010i200207-200301
main13521-20020i200002-200207
13567GUIDE, TIMING BELT, NO.2
main13567-62010i200002-200207

15 parts on this diagram · 1 diagram in section
