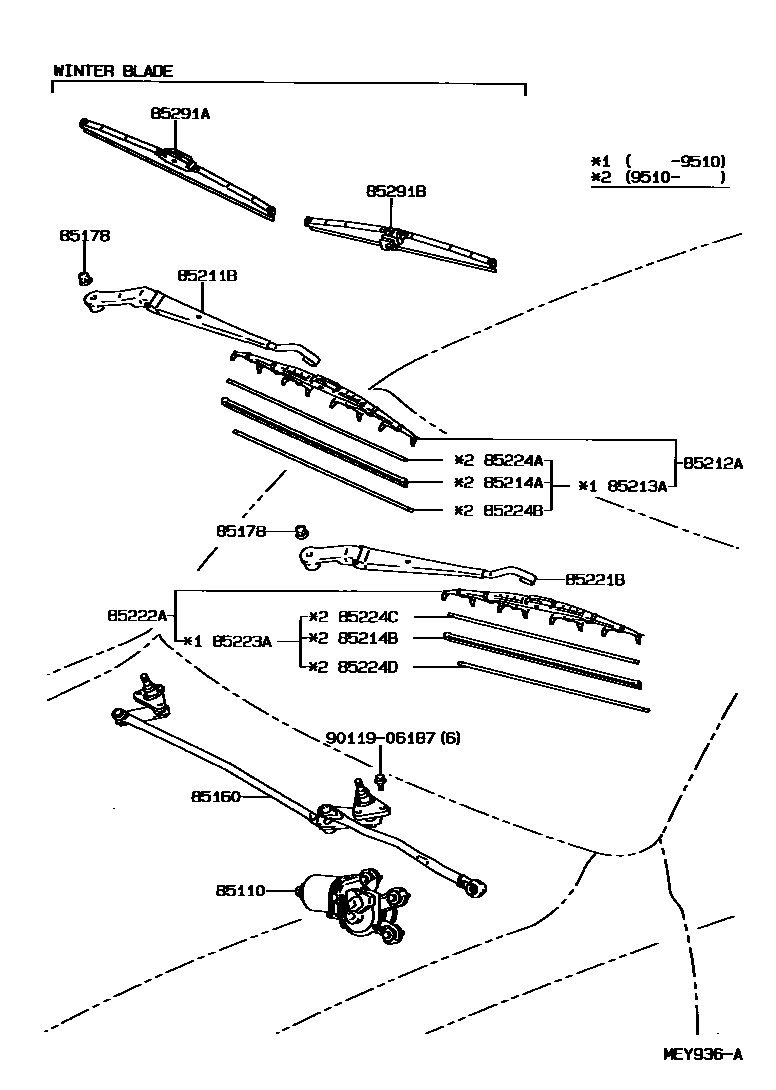

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-07020iMCX10199503

85160LINK ASSY, WINDSHIELD WIPER

main85150-07020iMCX10199503

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2iMCX10199503-199510

main90176-08051×2iMCX10199510

85211BARM, FRONT WIPER, RH

main85211-07020iMCX10199503

85212ABLADE, FR WIPER, RH

main85212-07020iMCX10199503

85213ARUBBER, WIPER BLADE, RH

main85223-07010iMCX10199503-199510

85214ARUBBER, WIPER, RH

main85214-07020iMCX10199510

85214BRUBBER, WIPER, LH

main85214-07010iMCX10199510

85221BARM, FRONT WIPER, LH

main85221-07020iMCX10199503

85222ABLADE, FR WIPER, LH

main85222-07020iMCX10199503

85223ARUBBER, FRONT WIPER BLADE, LH

main85213-07010iMCX10199503-199510

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-07020iMCX10199510

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-07020iMCX10199510

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-07010iMCX10199510

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-07010iMCX10199510

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-30020iMCX10199503

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-30030iMCX10199503

sub85291-22080

9011906187

main90119-06187

18 parts on this diagram · 1 diagram in section
