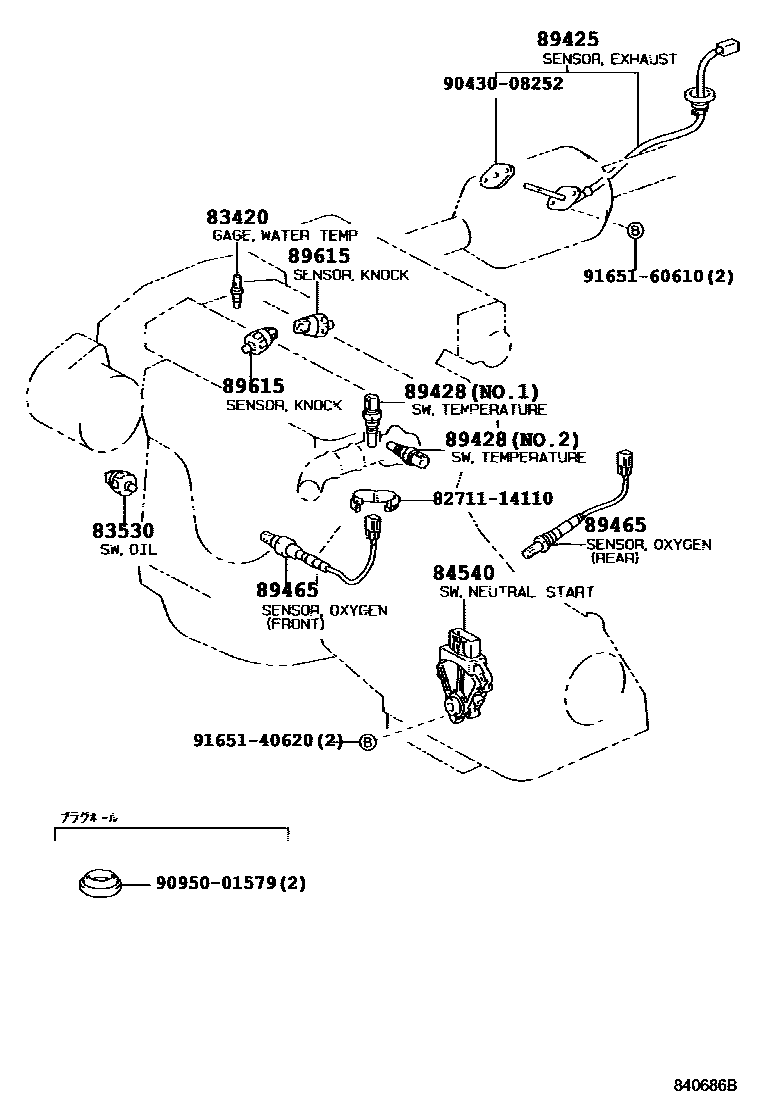

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� �-� 0004 1������������ 0005 1��� 0006 1�-�,���,��� 0007 1�����-��� ����

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iMCX10199703-199808

main83420-AA010iMCX10199703-199808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCX10199805

main83530-30090iMCX10199503-199707

main83530-60020iMCX10199709

main83530-AA011iMCX10199707

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-20200iMCX10199503

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-29885iMCX10199503-199601

main89425-49055iMCX10199601-199709

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-30130iMCX10199608-200002

main89428-41010iMCX10199503-199608

89465SENSOR, OXYGEN

main89465-07020iMCX10199808

main89465-07030iMCX10199808

main89465-33160iMCX10199608

main89465-33170iMCX10199608

main89465-41020iMCX10199503-199608

main89465-41030iMCX10199503-199608

89615SENSOR, KNOCK CONTROL

main89615-12040×2iMCX10199503

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9043008252

main90430-08252

9095001579

main90950-01579

9165140620

main91651-40620

9165160610

main91651-60610

12 parts on this diagram · 7 diagrams in section
