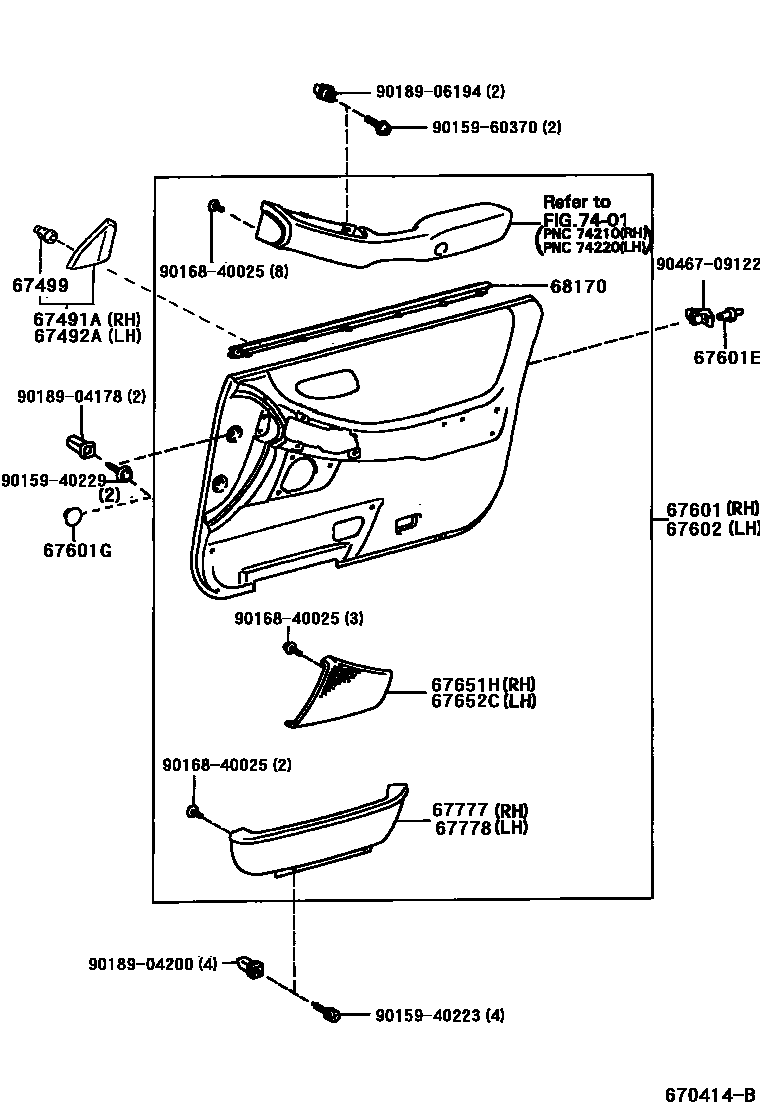

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-AC010iMCX10199503

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-AC010iMCX10199503

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-06010×6iMCX10199503

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-AC050-E0iMCX10199503-199608

DK. ADOBE,TRIM4#

main67610-AC060-E1iMCX10199503-199709

main67610-AC080-E1iMCX10199608-199709

DK. ADOBE,TRIM4#

main67610-AC130-E0iMCX10199709

main67610-AC150-E0iMCX10199709

ROSE STONE,TRIM4#

67601ECAP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-E3×2iMCX10199709

QUARTZ,TRIM4#

main90467-07066-E4×2iMCX10199503-199709

LT. ADOBE,TRIM4#

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01746-E1×4iMCX10199709

QUARTZ,TRIM4#

main90950-01746-E3×4iMCX10199503-199709

LT. ADOBE,TRIM4#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-AC050-E0iMCX10199503-199608

DK. ADOBE,TRIM4#

main67620-AC060-E1iMCX10199503-199709

main67620-AC080-E1iMCX10199608-199709

BLACK,TRIM4#

main67620-AC150-E0iMCX10199709

main67620-AC170-E0iMCX10199709

ROSE STONE,TRIM4#

67651HGRILLE, SPEAKER DOOR, RH

main67651-AC020-E0iMCX10199709

DK. ROSE,TRIM4#

main67651-AC020-E1iMCX10199503-199709

ADOBE,TRIM4#

67652CGRILLE, SPEAKER DOOR, LH

main67652-AC020-E0iMCX10199709

DK. ROSE,TRIM4#

main67652-AC020-E1iMCX10199503-199709

ADOBE,TRIM4#

67777POCKET, FRONT DOOR TRIM, RH

main67770-AC010-E2iMCX10199709

QUARTZ,TRIM4#

main67770-AC010-E3iMCX10199503-199709

ADOBE,TRIM4#

main67770-AC020-E2iMCX10199709

main67770-AC020-E3iMCX10199503-199709

67778POCKET, FRONT DOOR TRIM, LH

main67780-AC010-E2iMCX10199709

QUARTZ,TRIM4#

main67780-AC010-E3iMCX10199503-199709

ADOBE,TRIM4#

main67780-AC020-E2iMCX10199709

main67780-AC020-E3iMCX10199503-199709

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-AC010×2iMCX10199503

9015940223

main90159-40223

9015940229

main90159-40229

9015960370

main90159-60370

9016840025

main90168-40025

9018904178

main90189-04178

9018904200

main90189-04200

9018906194

main90189-06194

9046709122

main90467-09122

20 parts on this diagram · 3 diagrams in section
